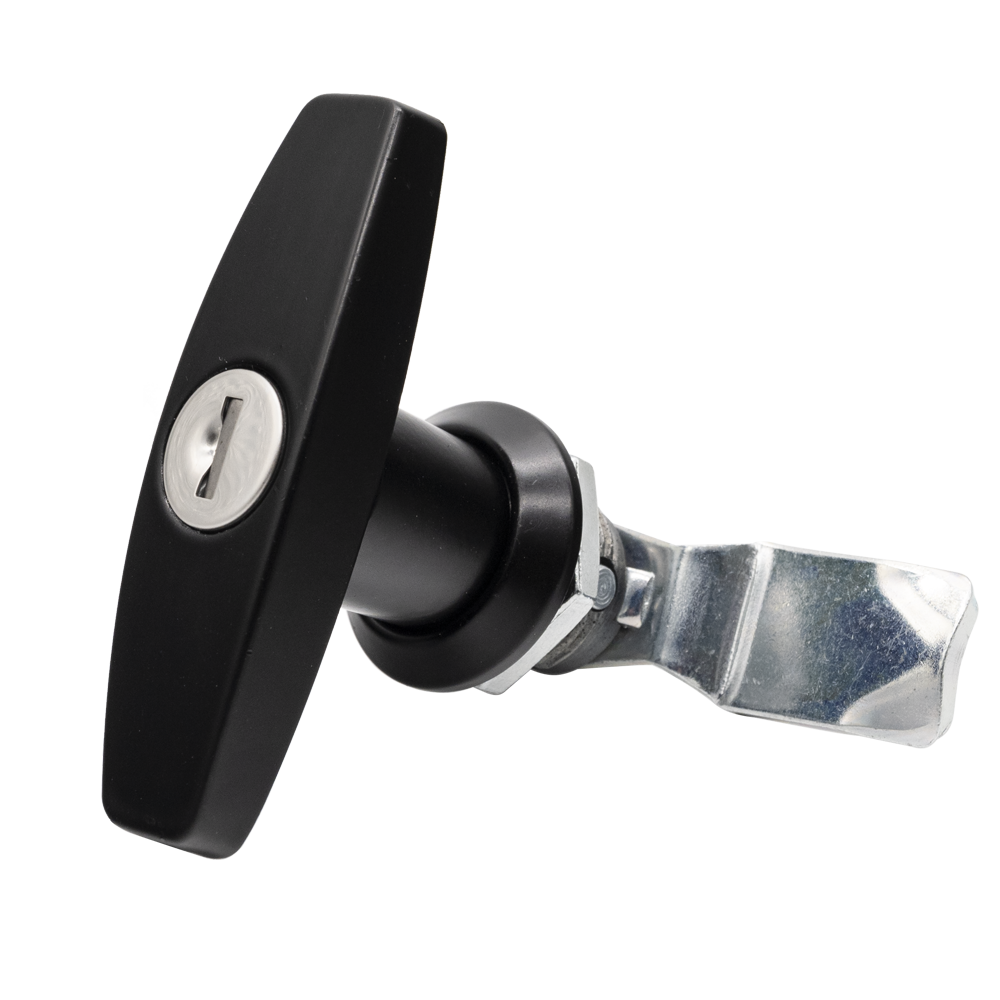

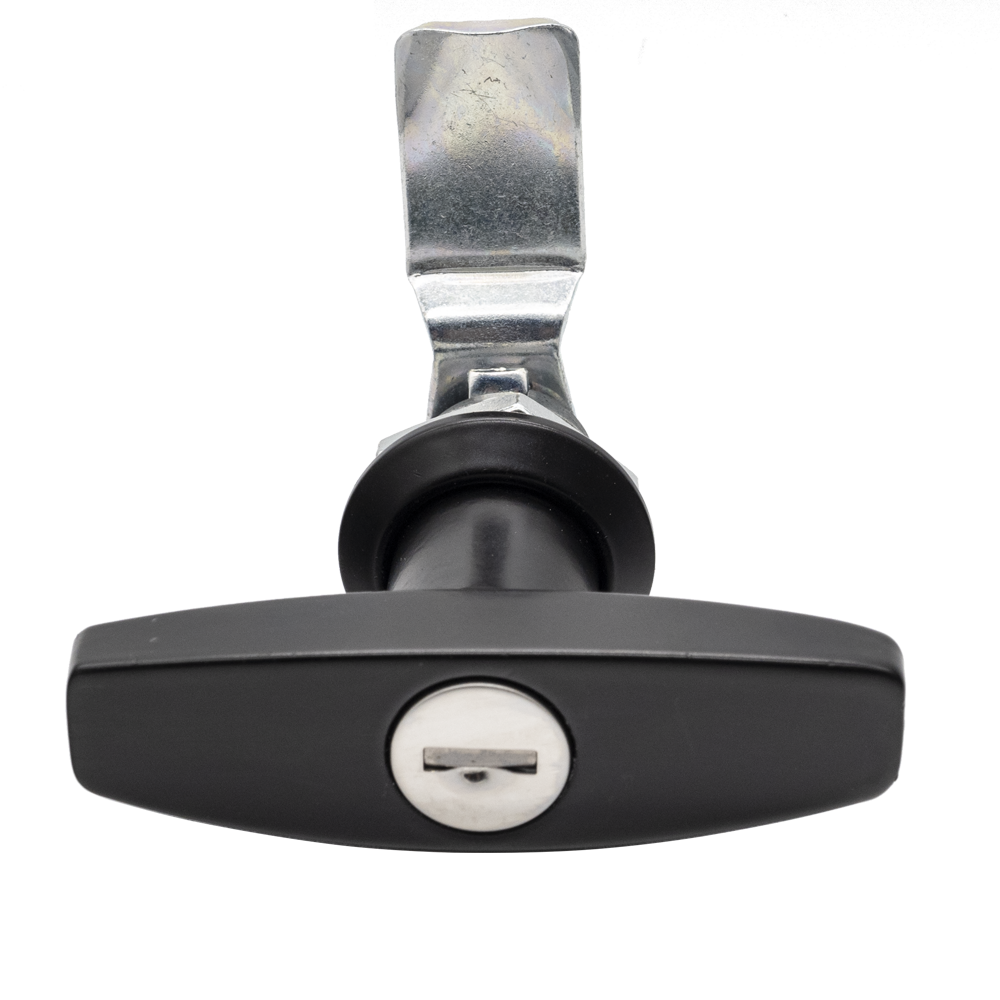

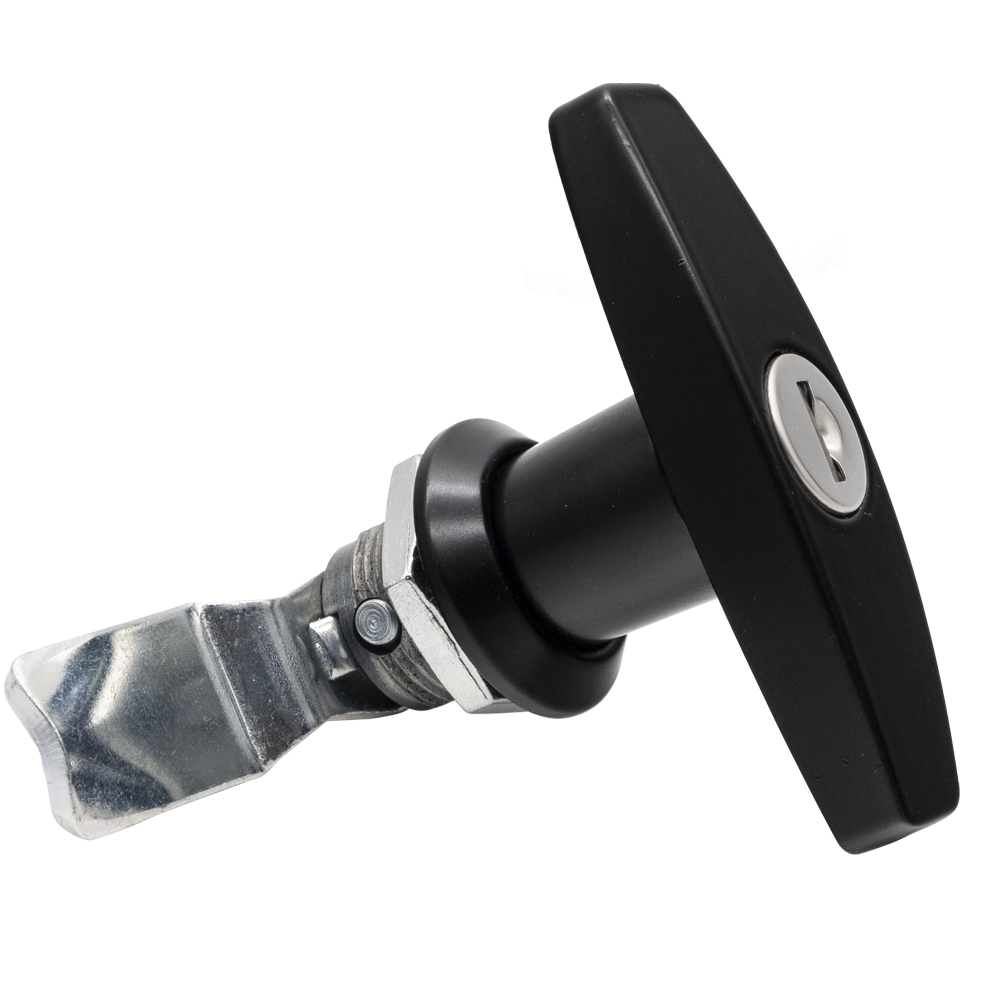

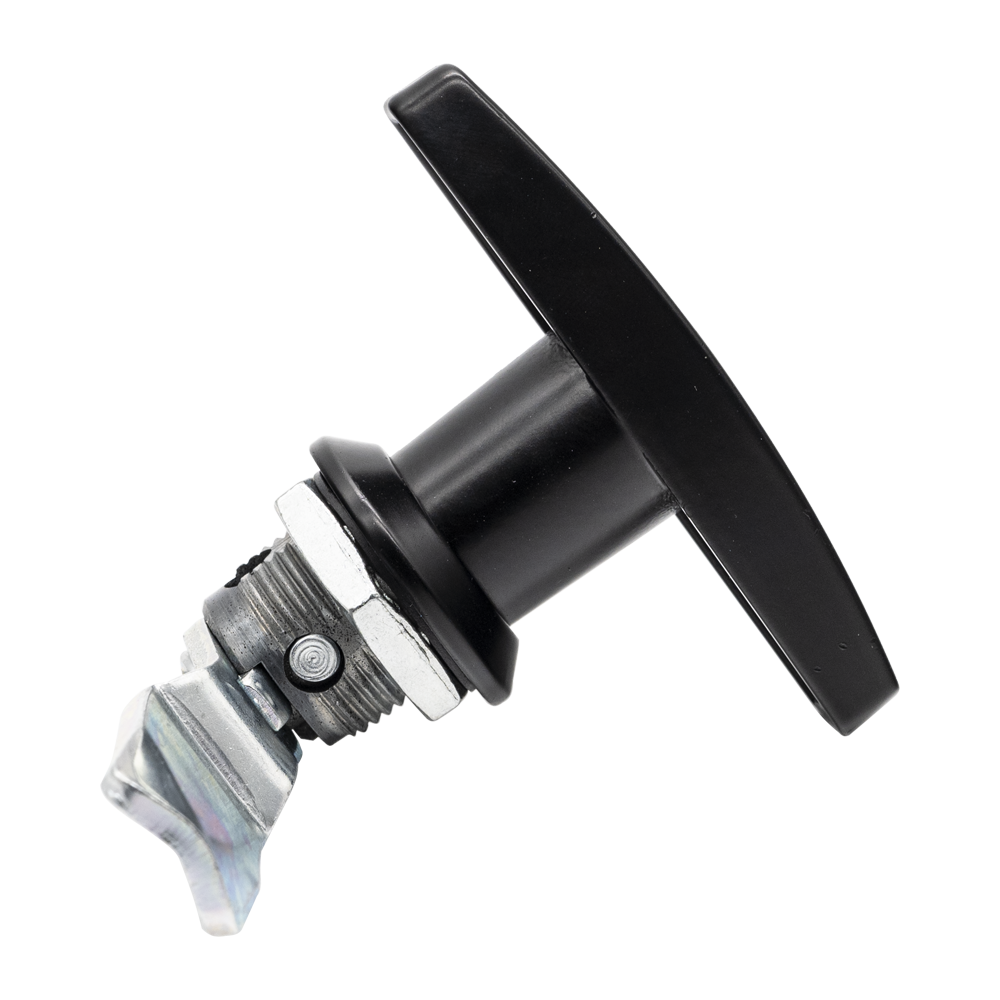

Quarter Turn T-Handle Latch,T-Handle Lock,1/4-turn T-handle,Vending Machine Lock ML100-4005

Zinc Alloy and Stainless Steel versions available,1333key or Non-locking version,Door Cutout: Ø22.5*20.1mm,Easy Installation,ROHS compliance

Download

Model Selection

clear

Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending（downward） height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending（upward） height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

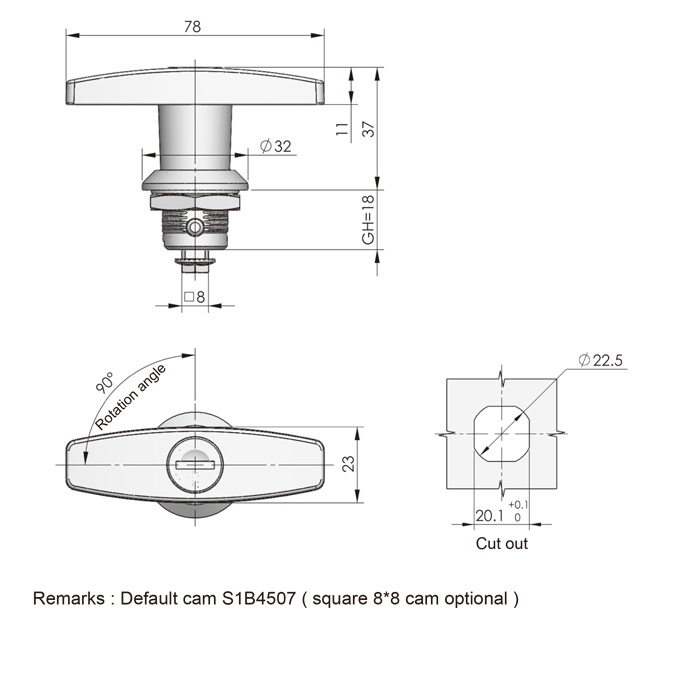

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.

Material and Surface

SUS316

black Zinc Alloy

Insert Option

with insert

without insert
