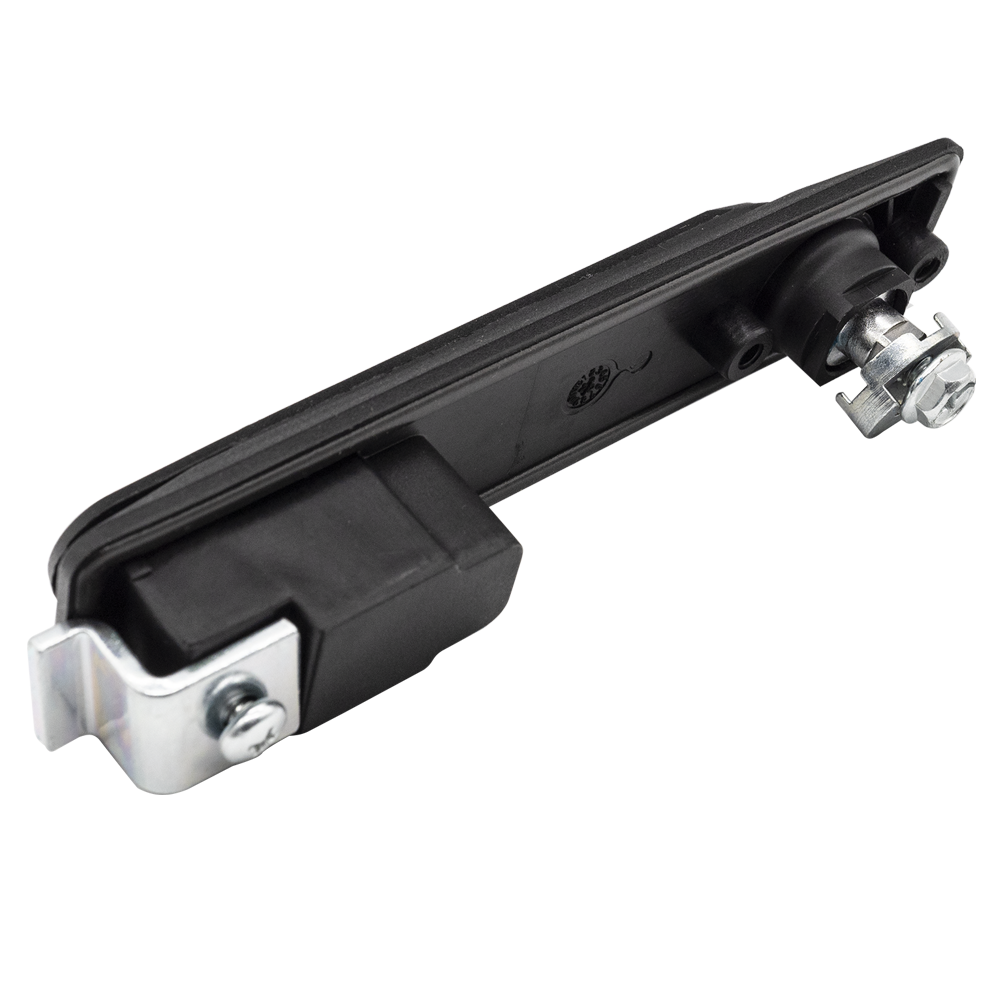

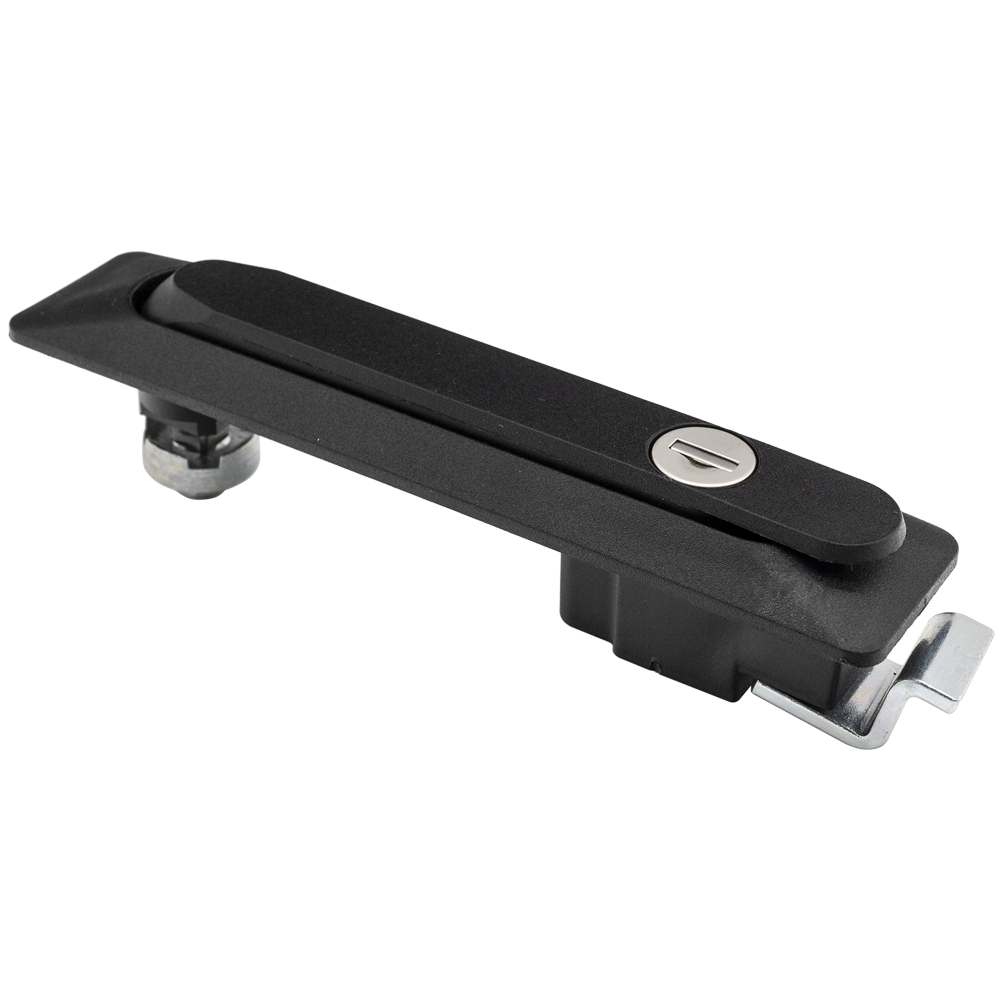

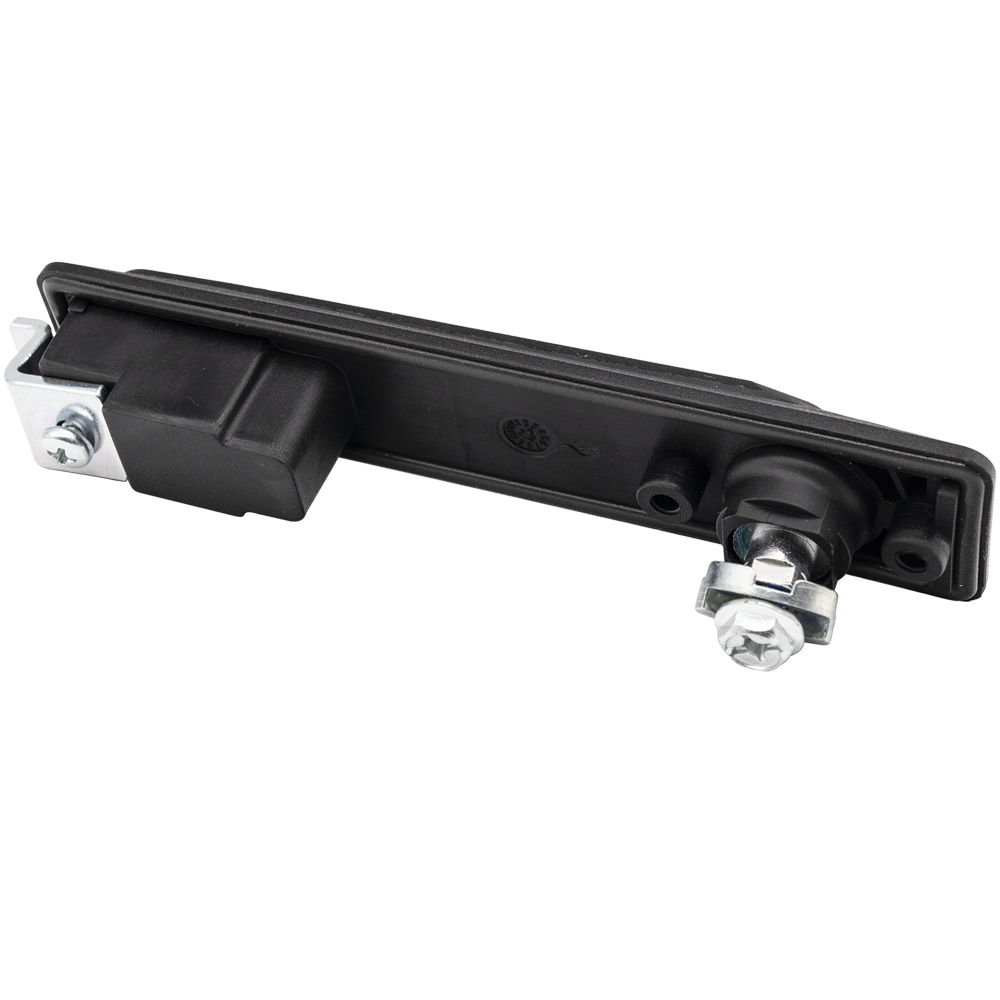

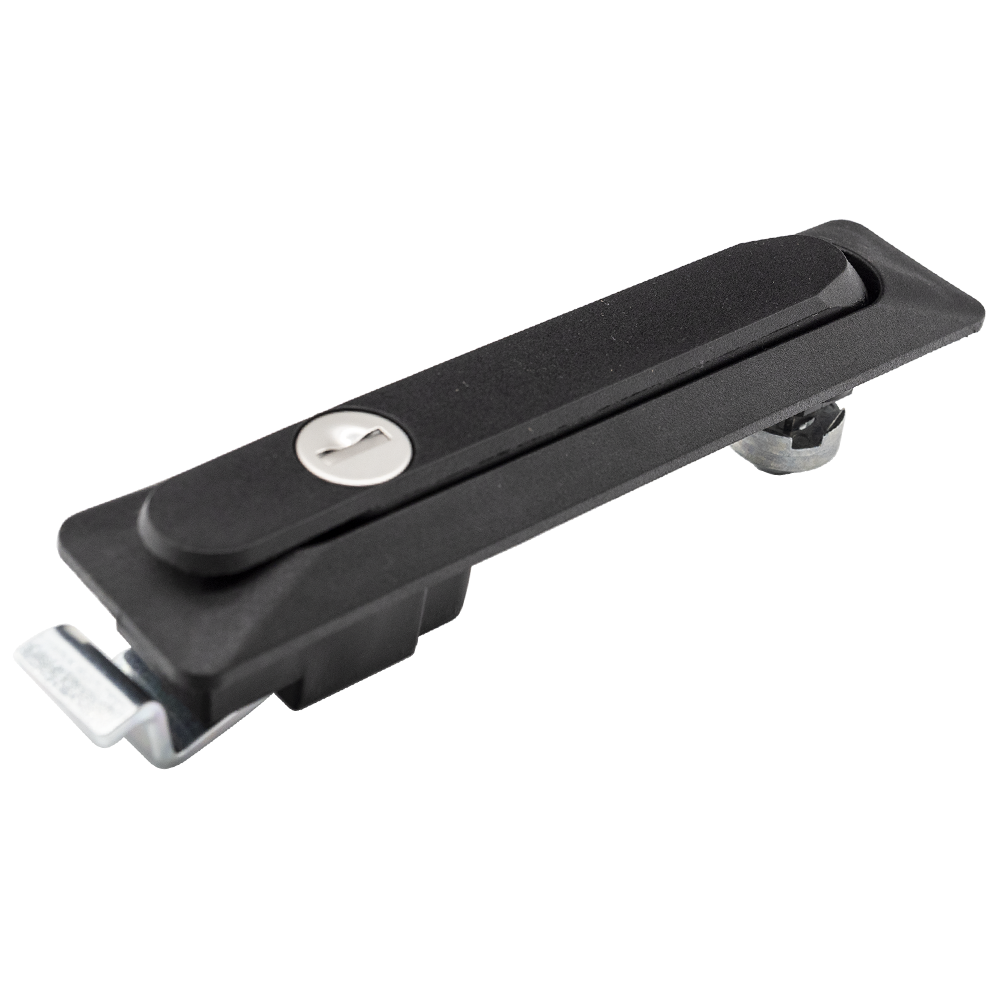

Swinghandle Lock,PA Lock ML100-4002

Black polyamide PA6 housing,handle,90° open or lock,Door Cutout: 150*25mm,ROHS compliance

Download

Model Selection

Unexpected quotation for large order

Do you need a quote?

For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

Model:

EUR 11.52

excl.VAT

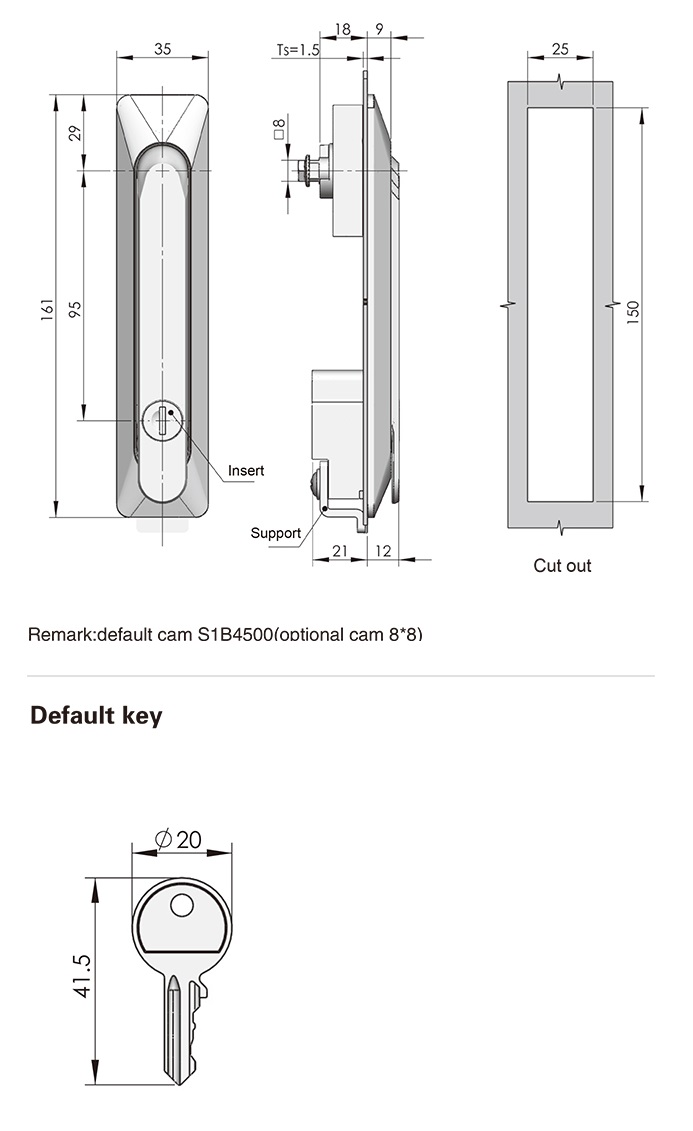

Drawing / Specifications

More Infrmation

Specification

Main material and finish:PA handle, housing, drive box

Application: Quarter-turn opening and close, position device direction to suit RH or LH application

Remarks: Default key 455 Default cam: S1B4500

Performance parameter

Handle load tension capability:≤115N

Handle load torque capability: ≤10N.m

Maximum static load: 220N
