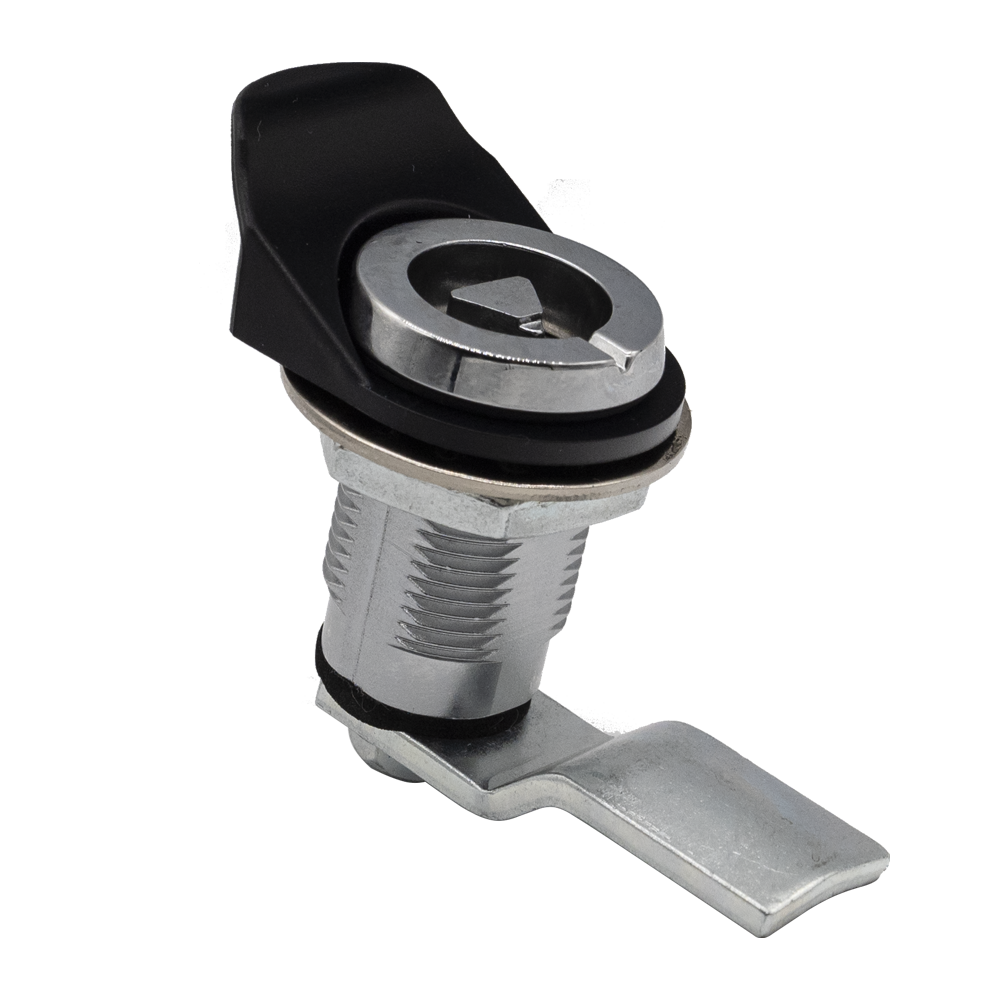

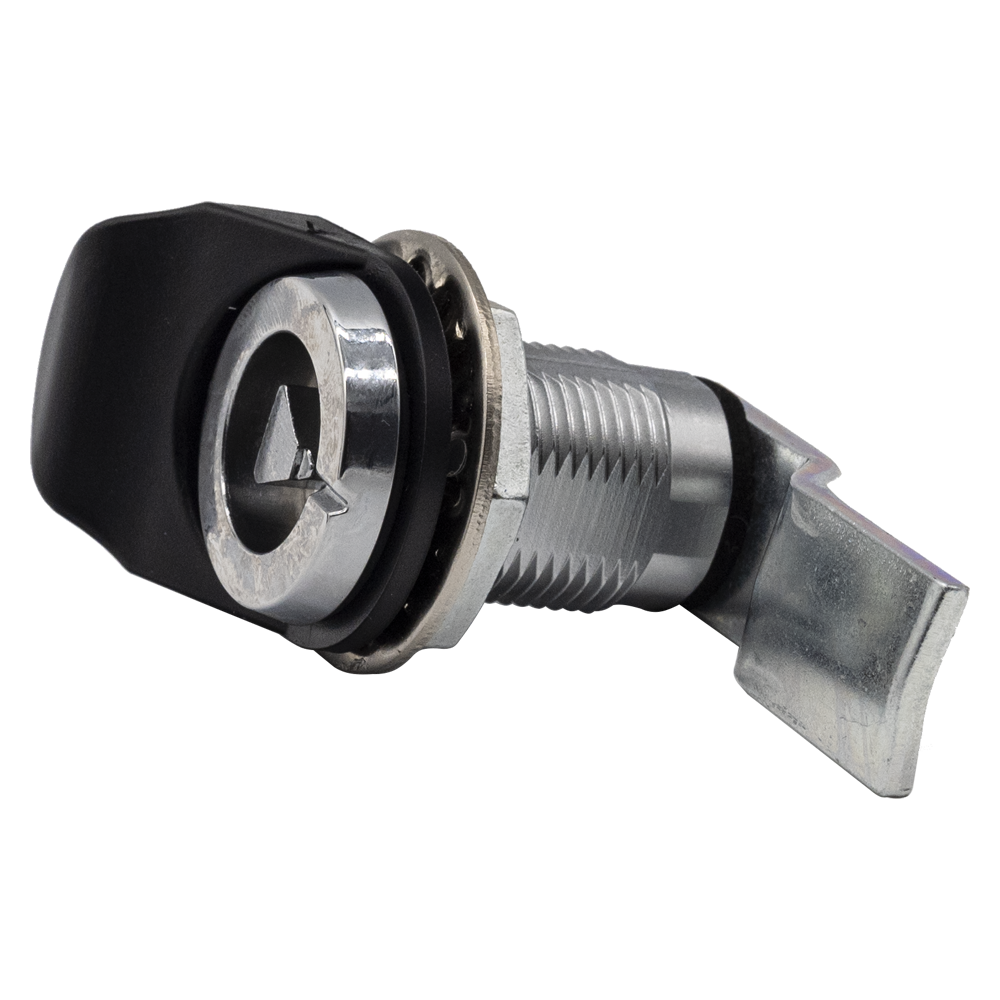

Quarter-Turn Compression Latch ML100-2001

Black Powder Coated or Chrome Plated Zinc Alloy Latch,Different Insert Type available,Head Diameter Ø32,Door Cutout: Ø22.5*19.5mm,Vibration Resistant,Easy Installation,ROHS compliance
Model Selection
Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending(downward) height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending(upward) height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

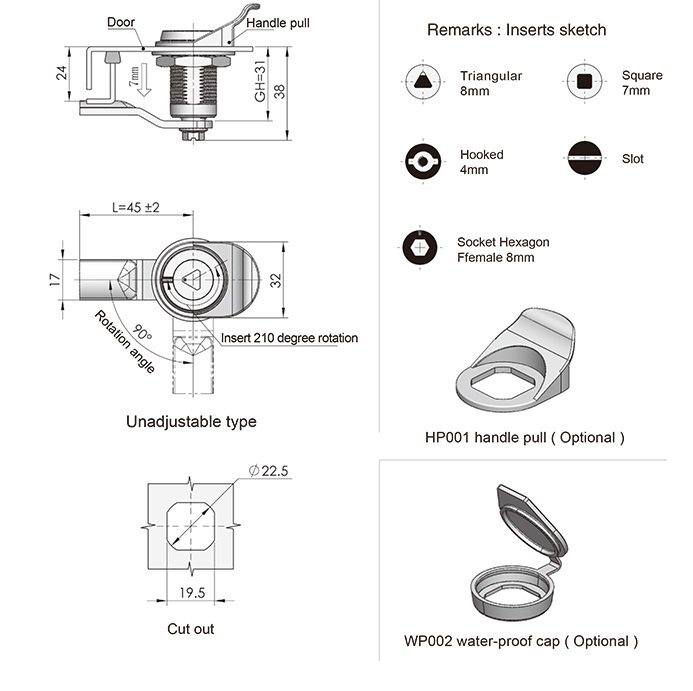

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.
Insert type
  • triangle 8mm
  • S hook
  • square 7mm
  • socket hexagon 8mm
  • Surface
  • Chrome plated
  • black
  • Unexpected quotation for large order

    Do you need a quote?
    For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

    Model:

    EUR 4.45
    excl.VAT
  • Drawing / Specifications
  • More Infrmation

  • Specification

    Material:Zinc Alloy housing and lock core, steel cam, PA handle pull

    Finish: Chrome Plated or Black Powder Coated housing, lock core, white zinc plated cam

    Structure description: rotate the key 90 ° to open or close , with function of locking

    Remark: Default key K15 Series      Default cam: S1B45N07

    Performance parameter

    Maximum static load: 300N

    Maximum input torque: 11N.m

    Recommended nut tightening torque: 20N.m
