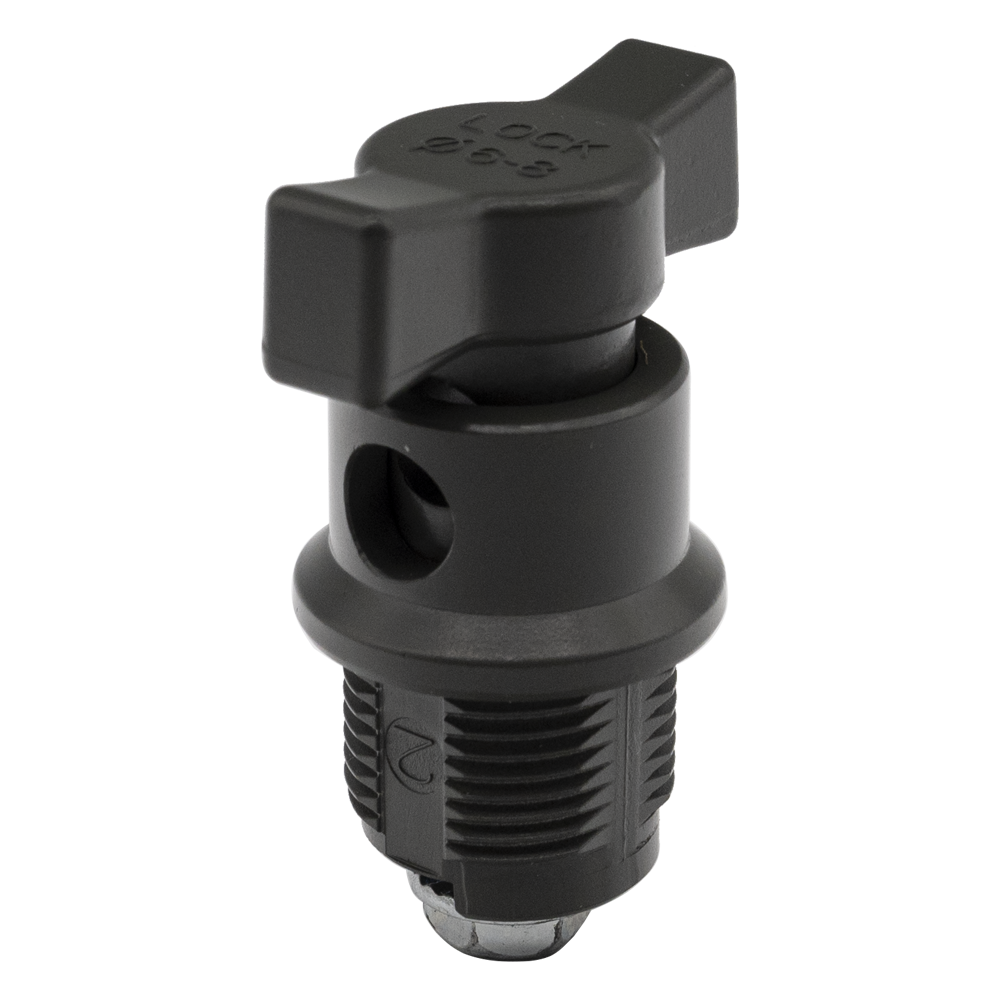

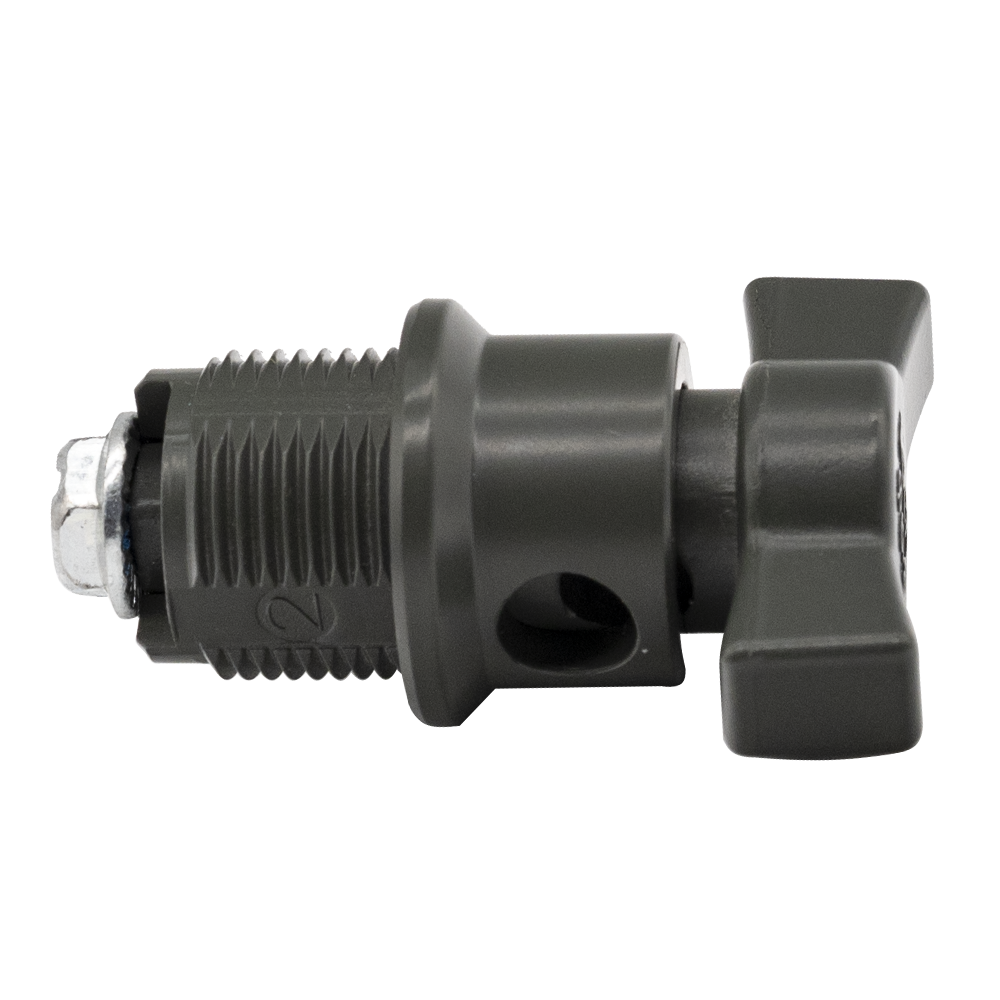

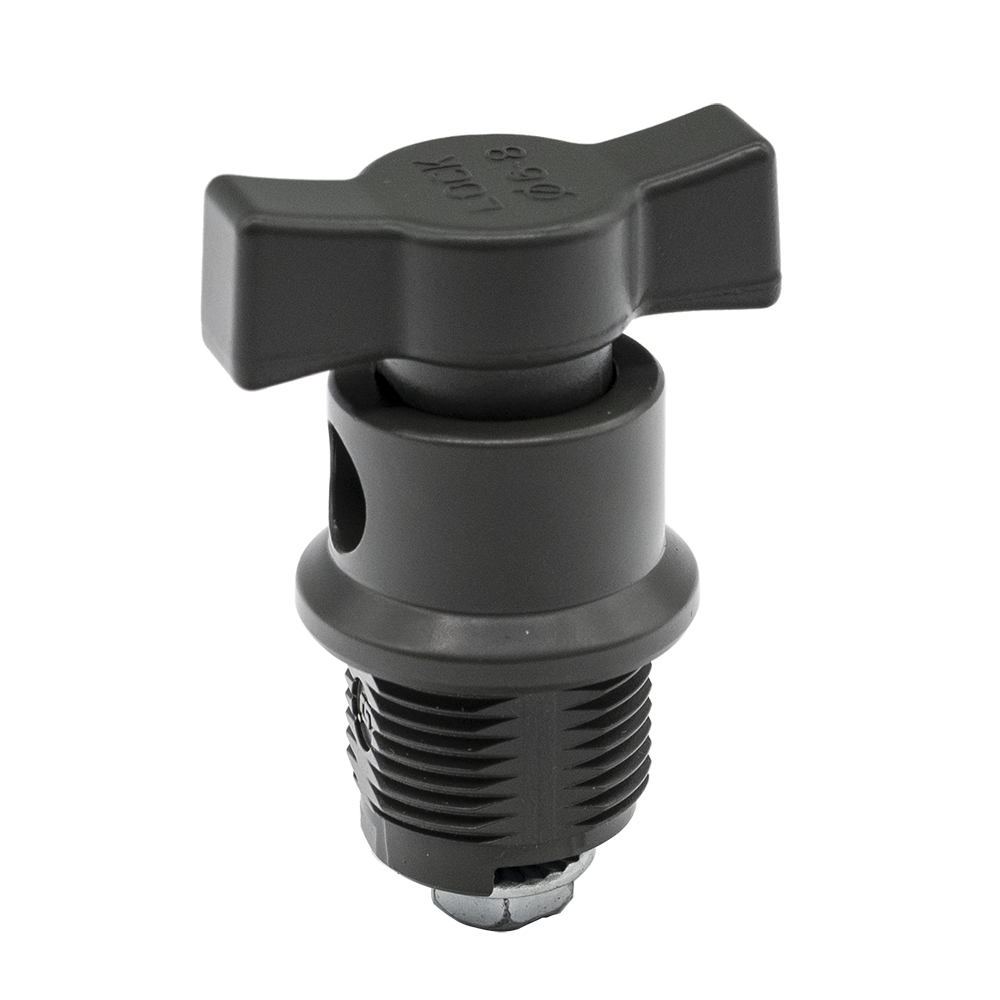

Quarter-Turn Wing Knob Latch,Switchgear Cabinet Door Lock ML100-1011

Blue gray powder coated ( RAL 7012 ) ZDC housing,PA handle,Padlockable,Door Cutout: Ø22.5*20.1mm,Easy Installation,ROHS compliance

Download

Model Selection

Unexpected quotation for large order

Do you need a quote?

For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

Model:

EUR 5.39

excl.VAT

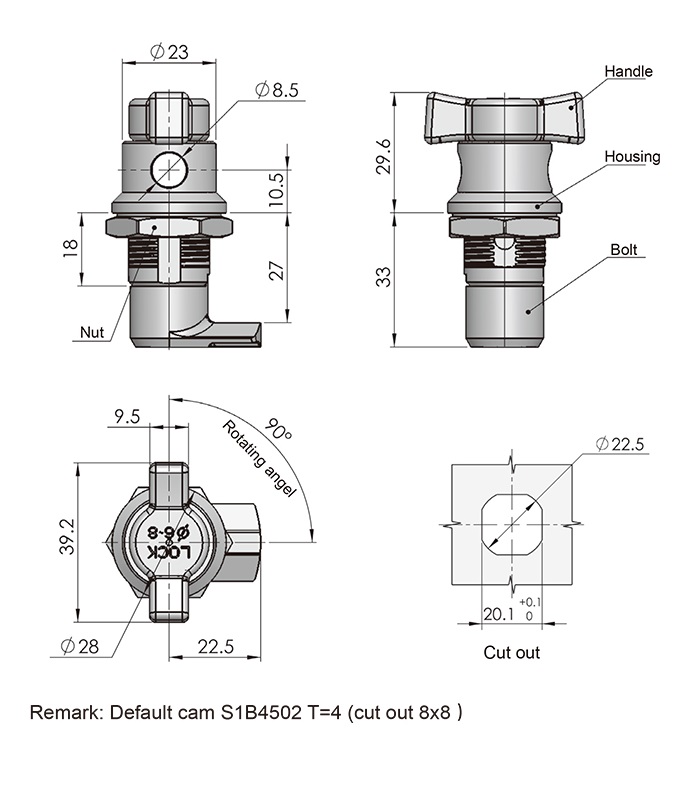

Drawing / Specifications

More Infrmation

Specification

Main material and finish: Blue gray powder coated ( RAL 7012 ) ZDC housing,PA handle,white zinc-plated steel cam

Application: Camstop quarter-turn opening or closing, padlockable

Default cam : S1B45Y02015

Performance parameter

Maximum static load:970N

Recommended nut tightening torque:20N.m
