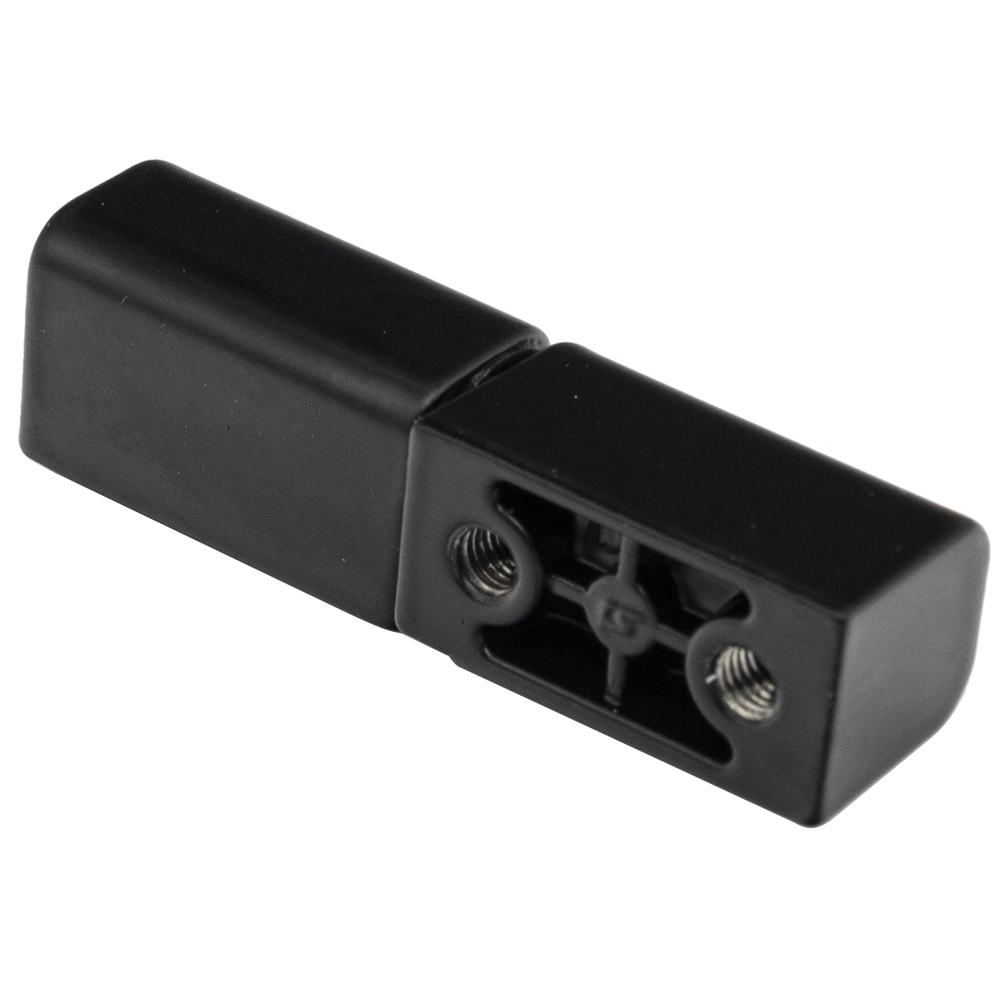

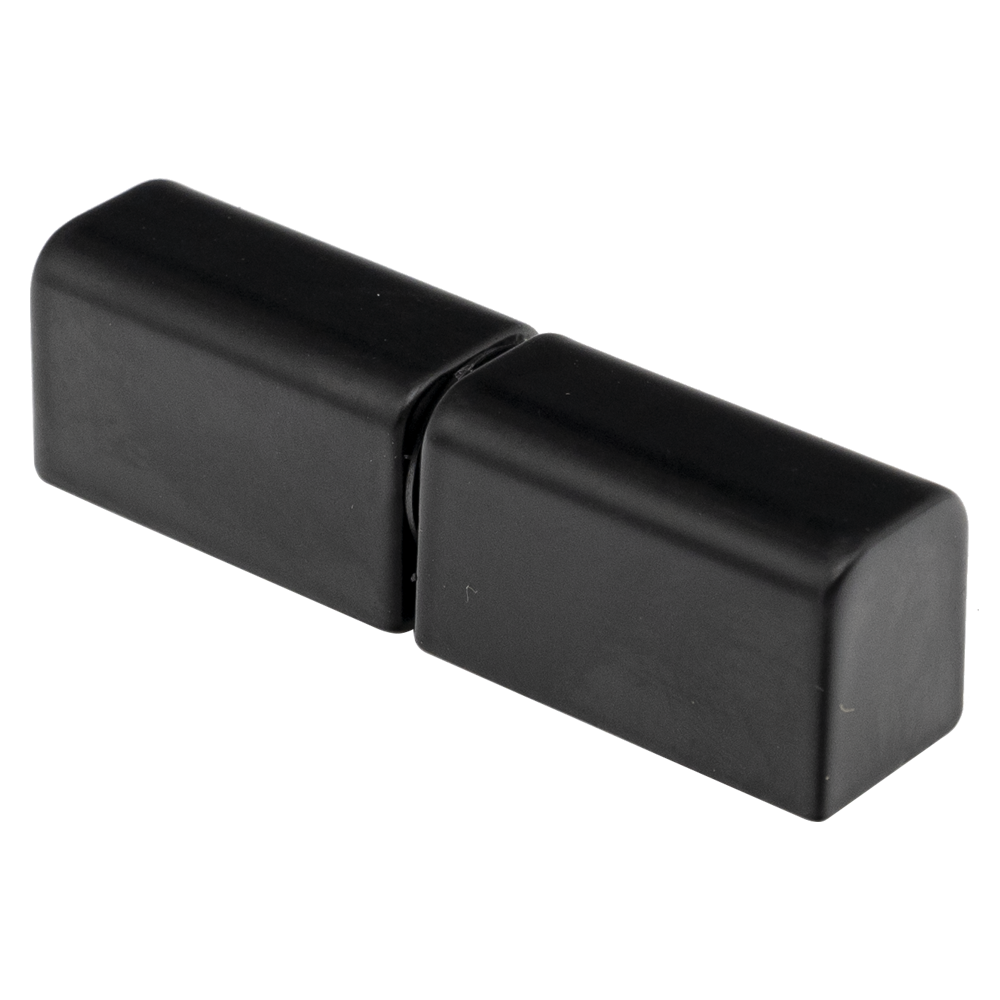

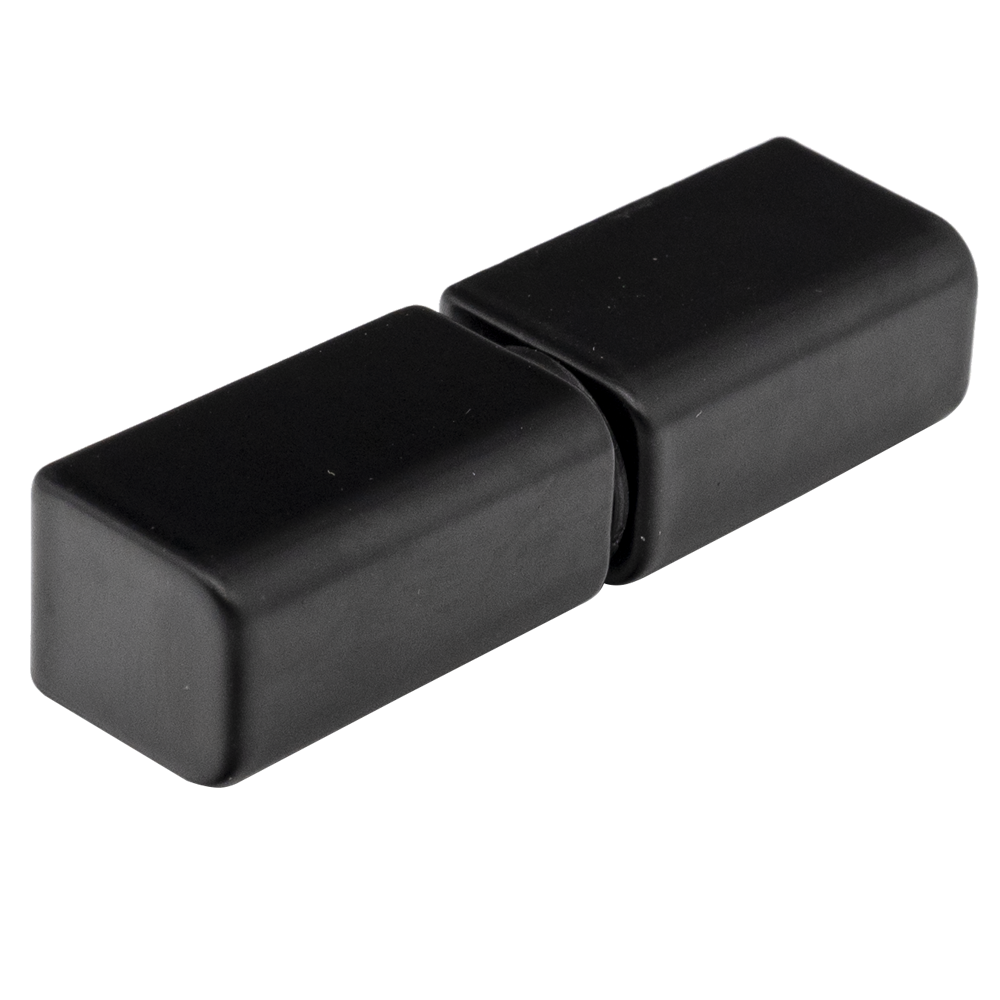

Removeable Lift-Off Hinge CL203-2,Detachable Hinge MH200-2005

Black Powder Coated or Silvery Nanometer Painting Zinc Alloy Hinge,Size:64*15mm Opening angle 180°,ROHS compliance
Model Selection
Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending(downward) height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending(upward) height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).
The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.
Material and Finish
  • Black powder coated zinc alloy
  • Pocked black zinc alloy
  • Wiredrawing polishing SUS304
  • Unexpected quotation for large order

    Do you need a quote?
    For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

    Model:

    EUR 2.57
    excl.VAT

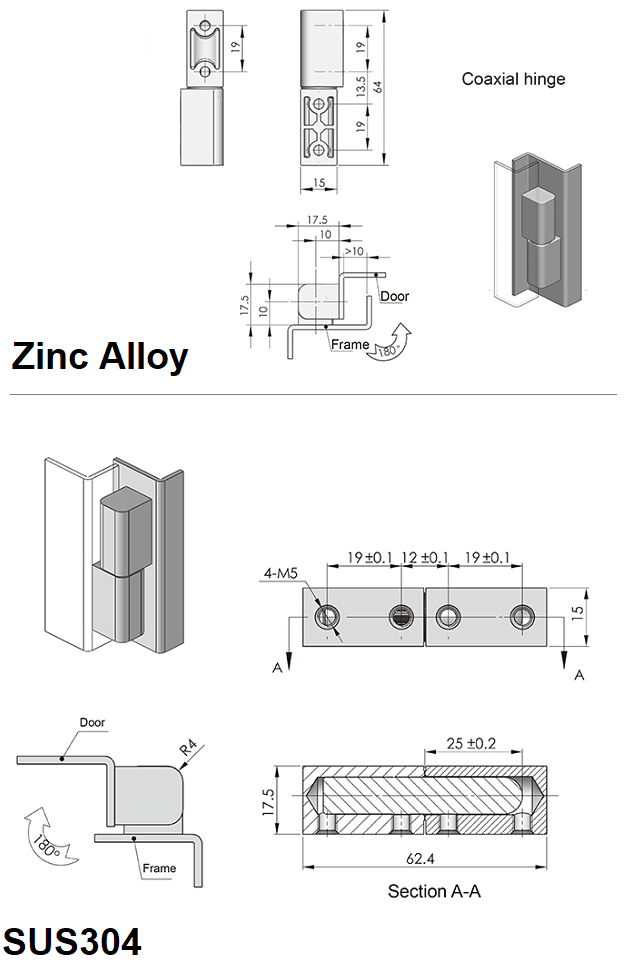

  • Drawing / Specifications
  • More Infrmation

  • Specification

    Main material and finish: Black powder coated Zinc Alloy or Wiredrawing polishing Stainless Steel 304 hinge

    Application: Opening angle 180°

    Performance parameter

    Maximum static load

    Zinc Alloy Hinge

    Radial load: 650N    Axial load: 1550N

    SUS304 Hinge

    Radial load: 1295N   Axial load: 2240N
