Constant Torque Hinge Position Control,Friction Hinge,Resistance Hinge,Damping Hinge MH200-4004

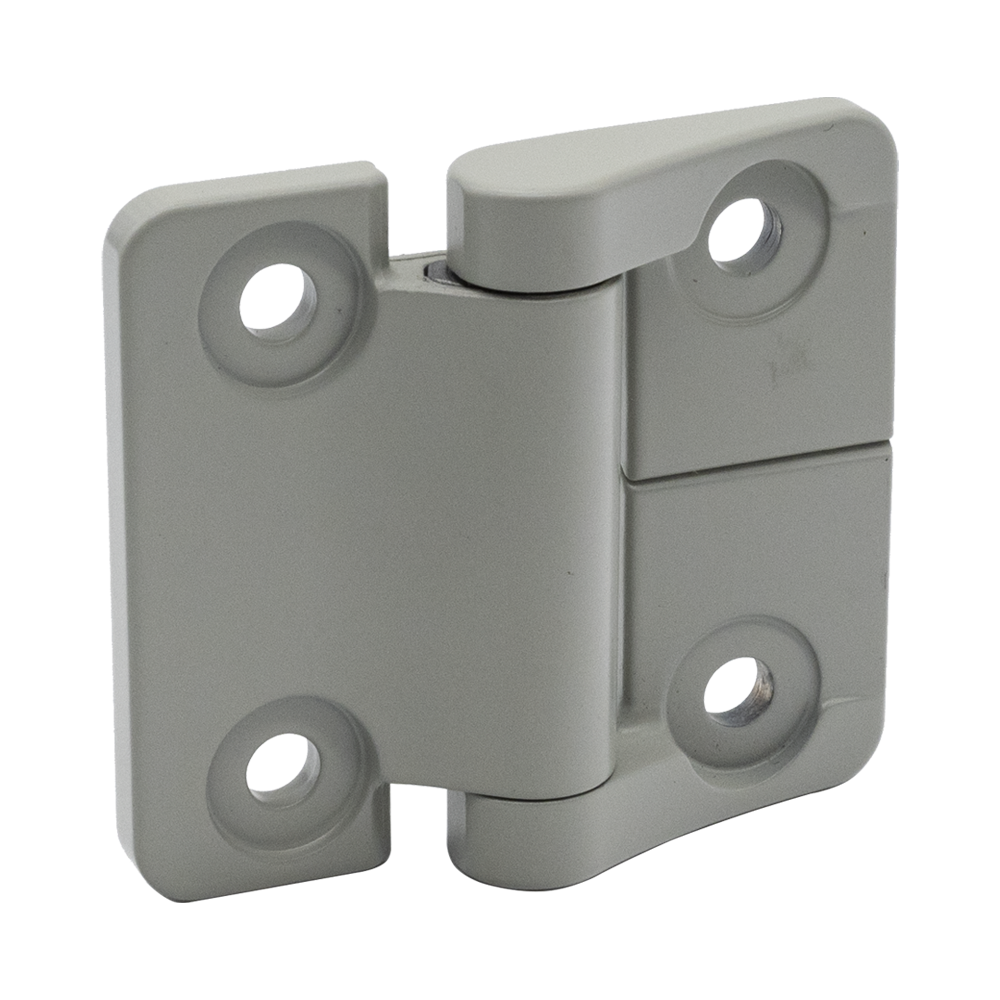

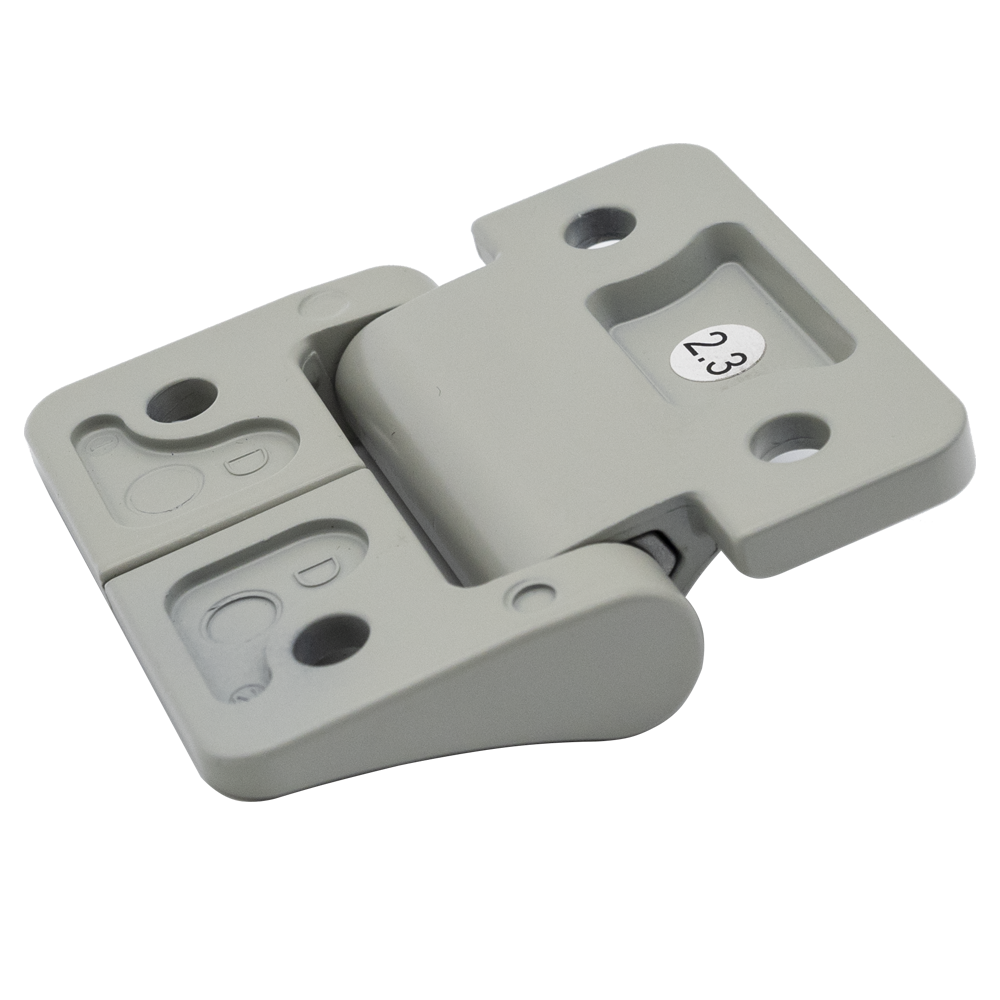

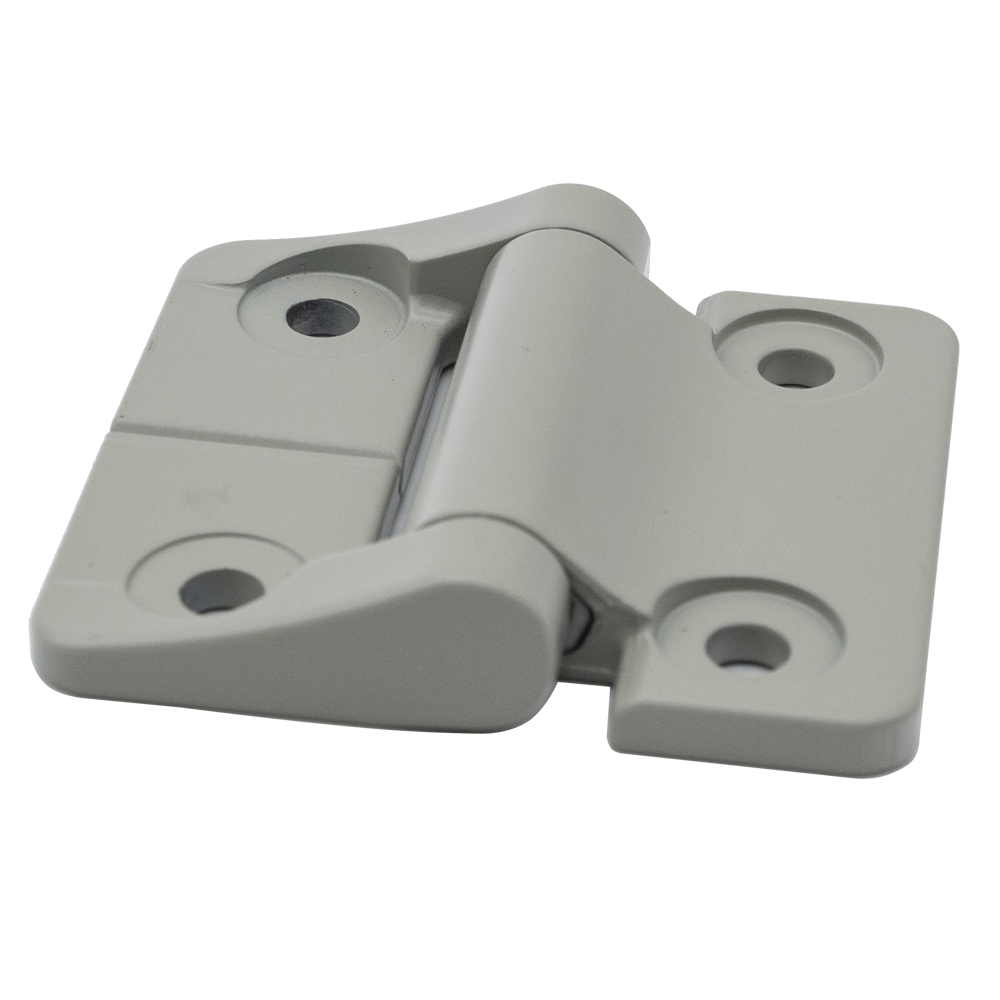

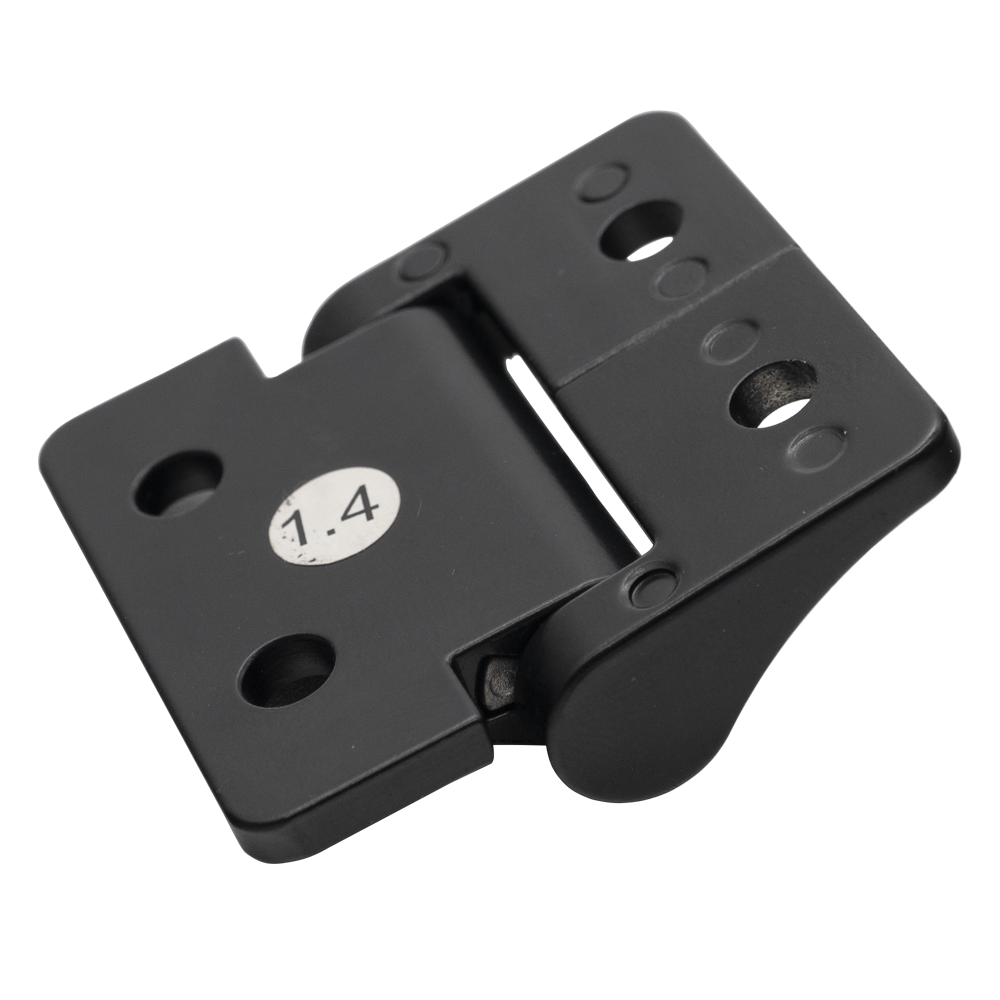

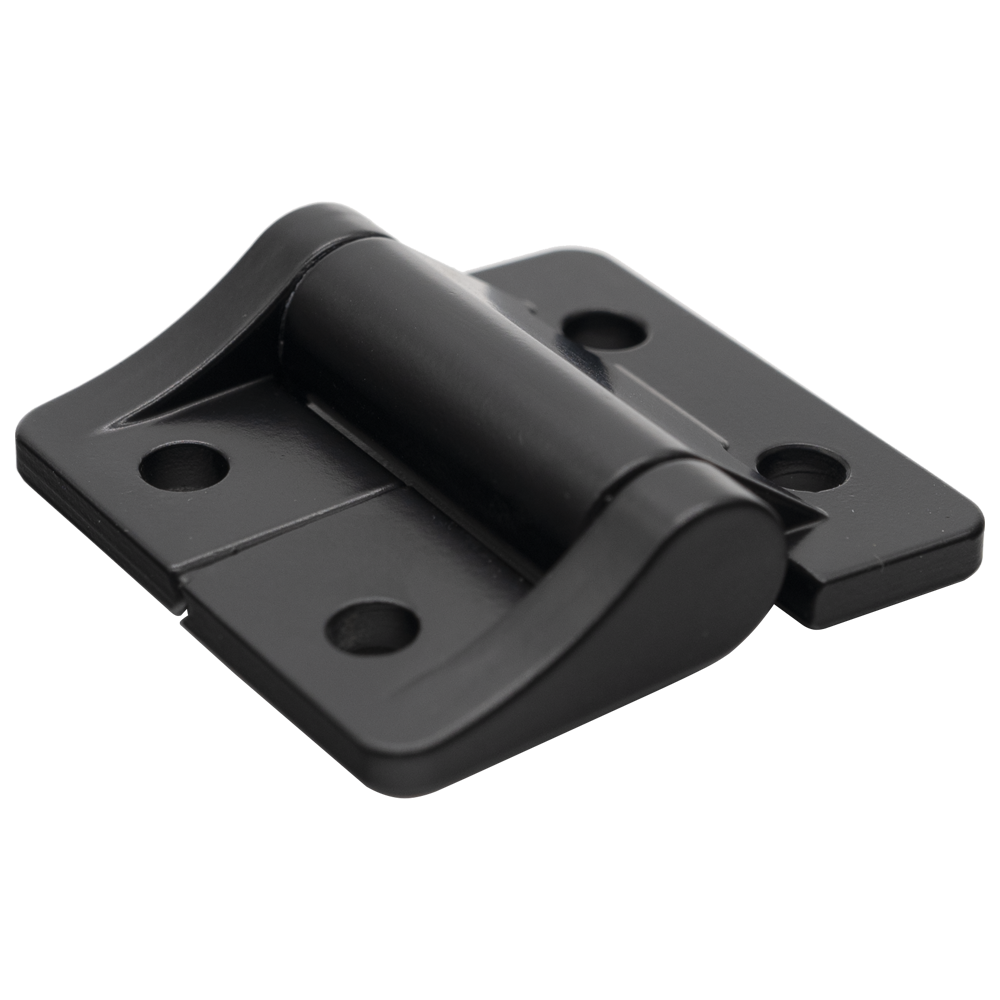

Zinc Alloy Hinge,Size:38*40mm and 57.1*50.8mm available,with different standard Torque 1.4/1.8/2.3/3.4N.m.Technical requirements:After 20,000 times lifespan,the torque attenuation deviation is ± 20%

Download

Model Selection

clear

Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending（downward） height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending（upward） height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

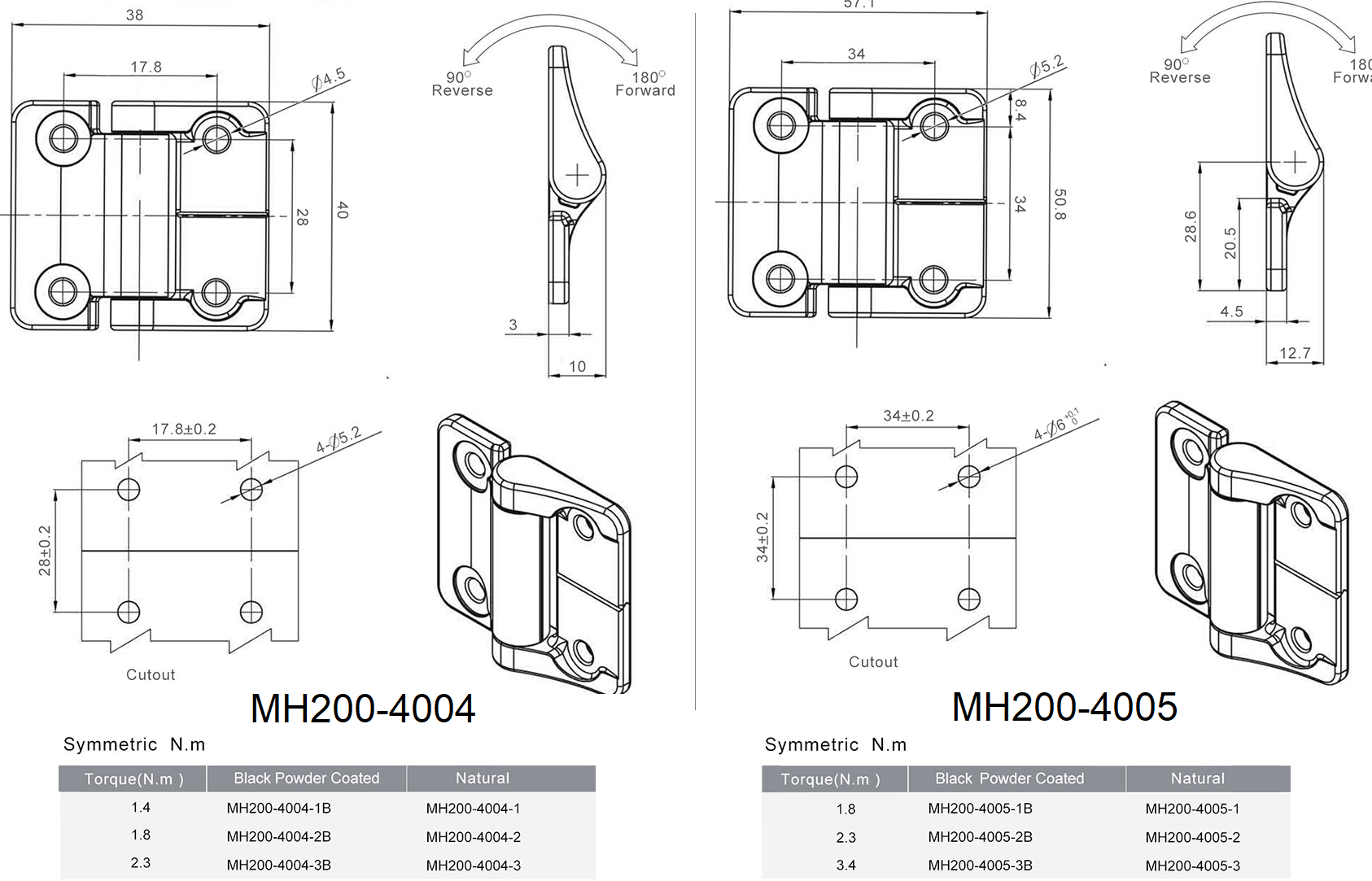

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.

Size

38*40mm

57.1*50.8mm

Surface

black

natural

Torque(N.m)

1.4 N.m

1.8 N.m

2.3 N.m

3.4 N.m

Unexpected quotation for large order

Do you need a quote?

For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.
