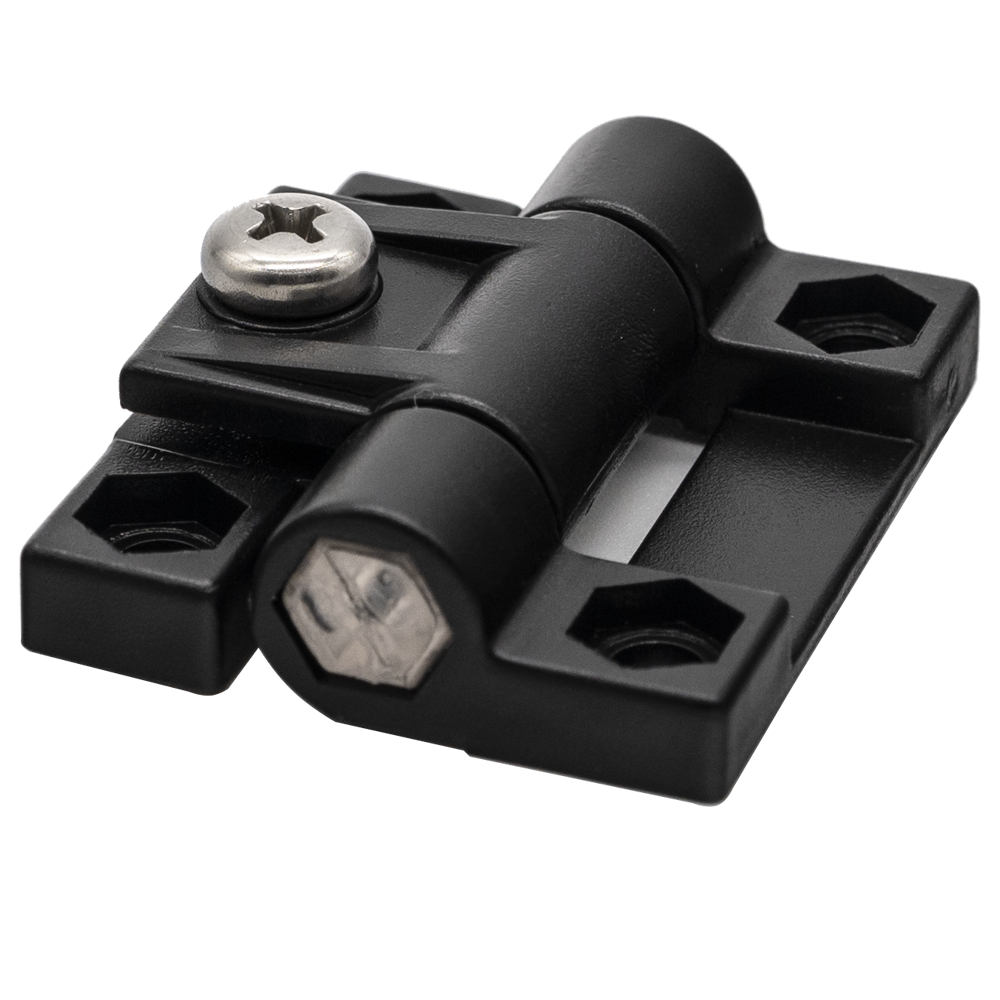

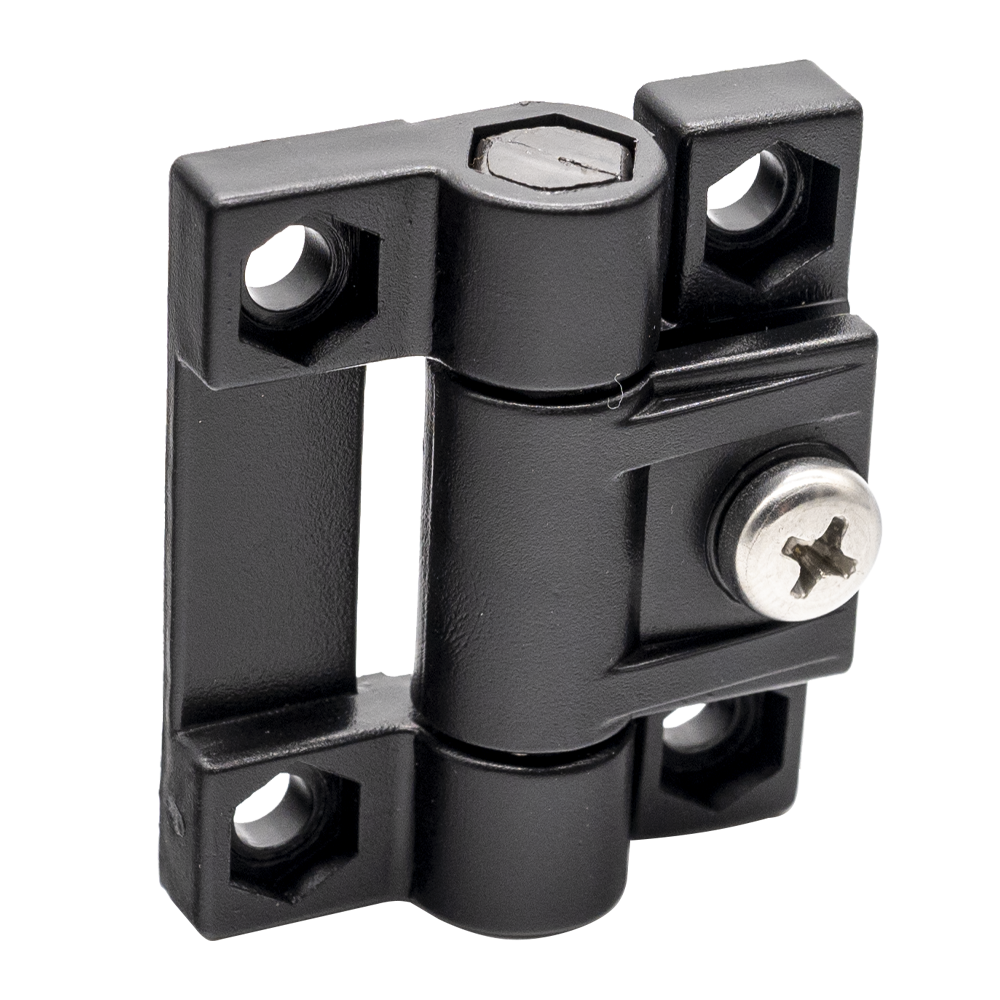

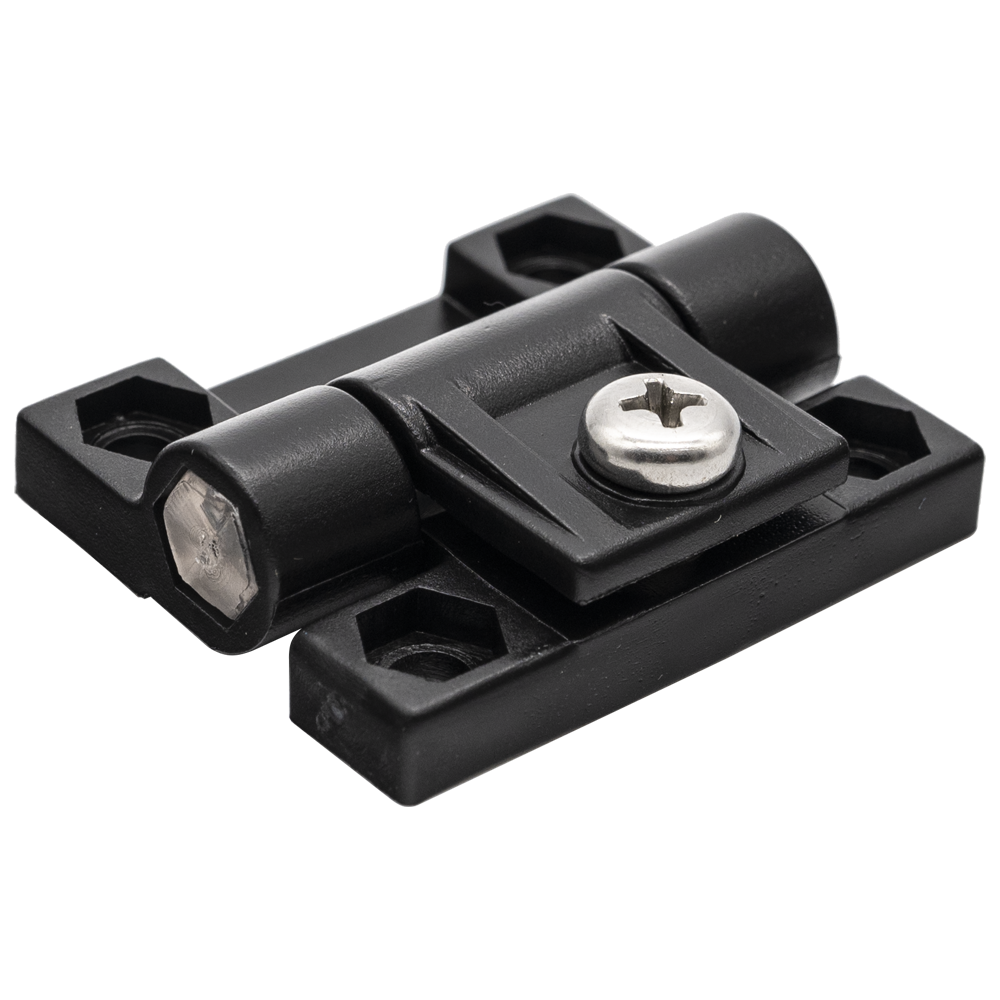

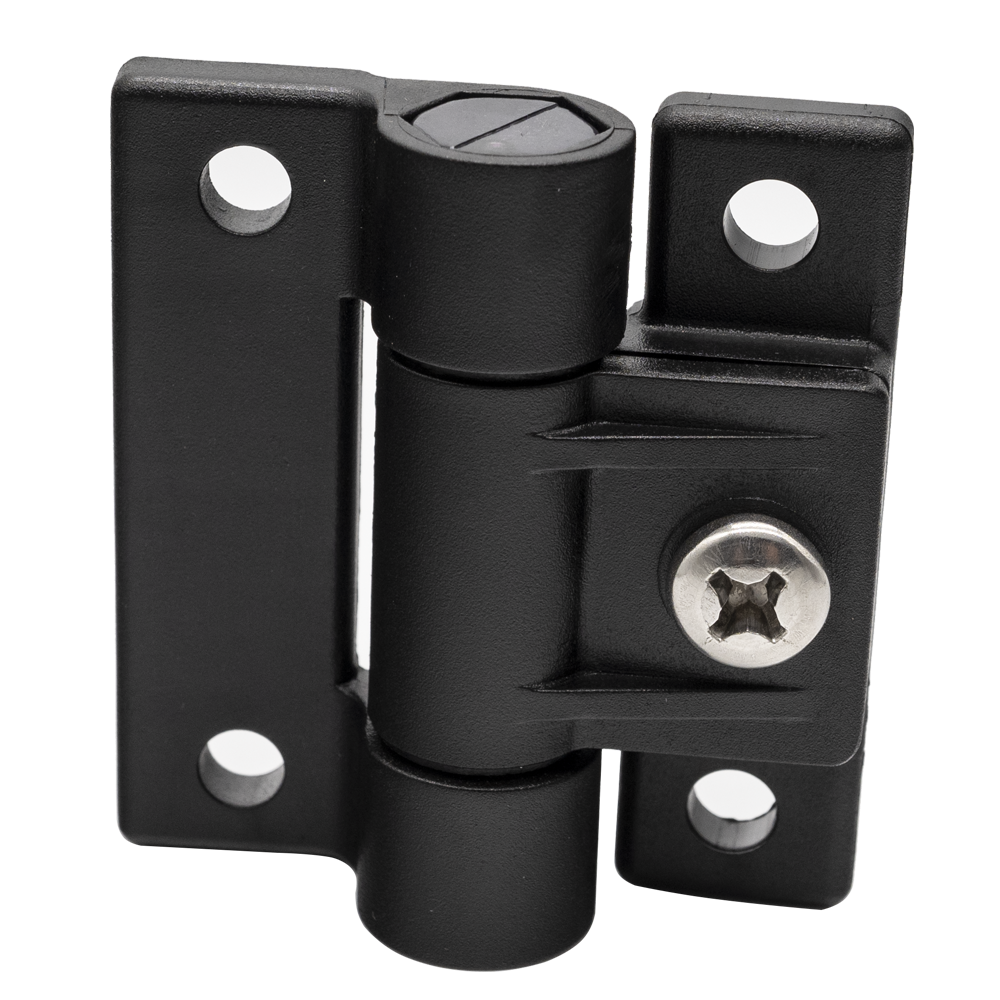

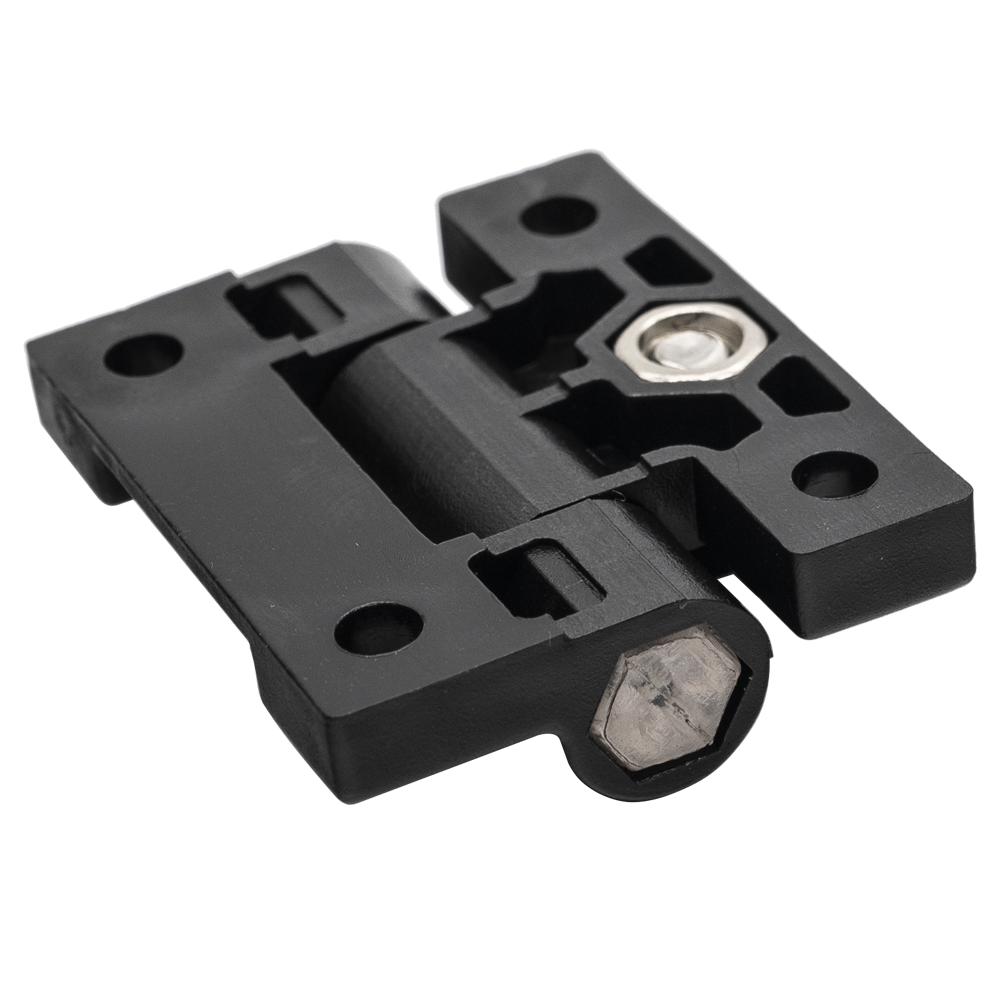

Adjustable Torque Hinge CL272,Position Control,Plastic Friction Hinge,Resistance Hinge MH200-4001

Black POM Hinge,Size:43*36mm and 63.5*57.5mm available,Torque strength canbe adjusted by screwdriver.Easy Installation,ROHS compliance.

Download

Model Selection

clear

Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending（downward） height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending（upward） height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

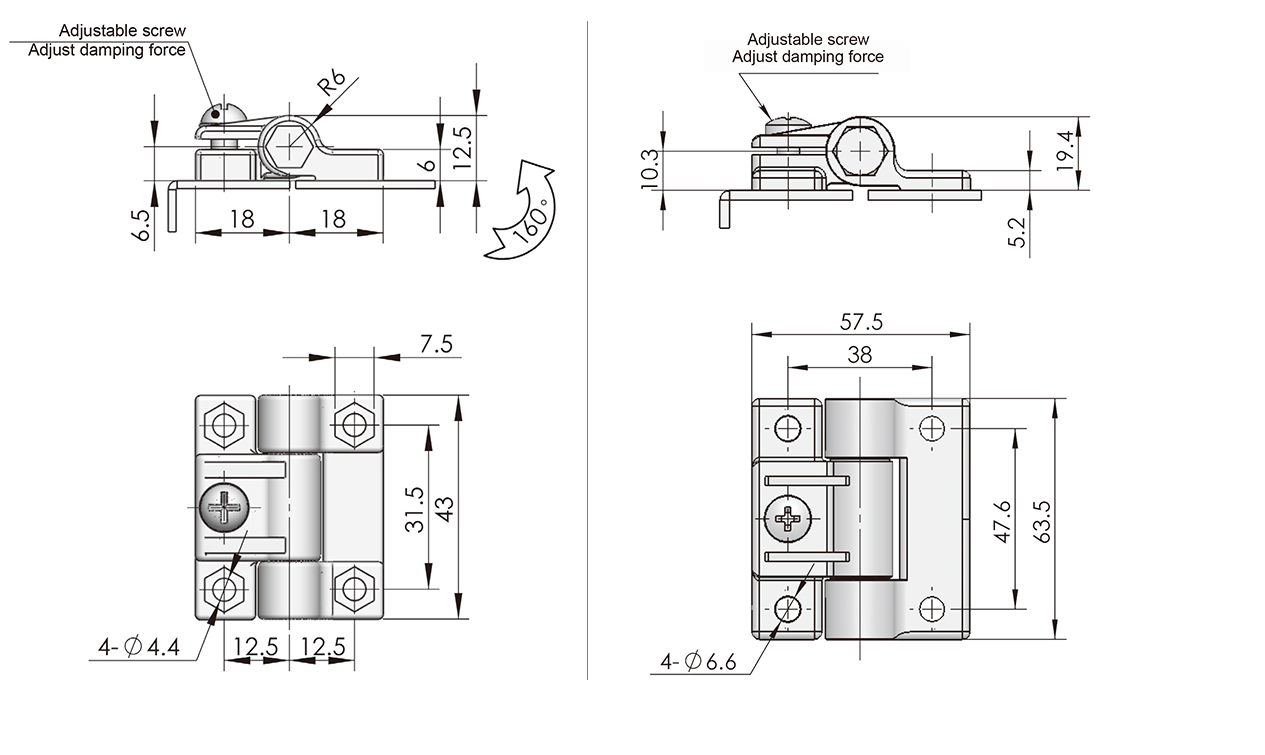

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.

Size

63.5*57.5mm

43*36mm

Unexpected quotation for large order

Do you need a quote?

For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.
