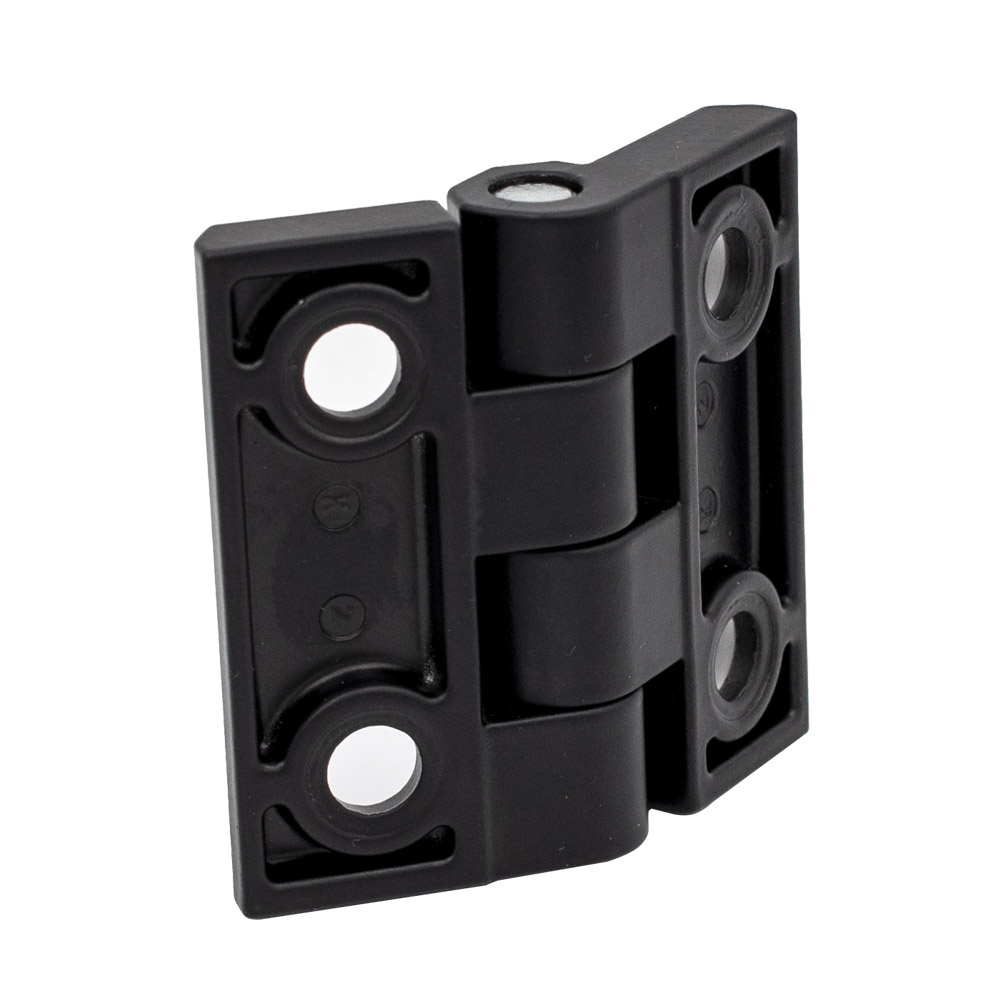

Exposed Hinge,Metal Leaf Hinge,40x40mm,50x50mm,60x60mm Metal Hinge MH200-3003

Zinc Alloy and Stainless Steel versions available,Opening angle 180°,Easy Installation,ROHS compliance.Widely used in all kinds enclosures,machines,generators.
Model Selection
Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending(downward) height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending(upward) height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

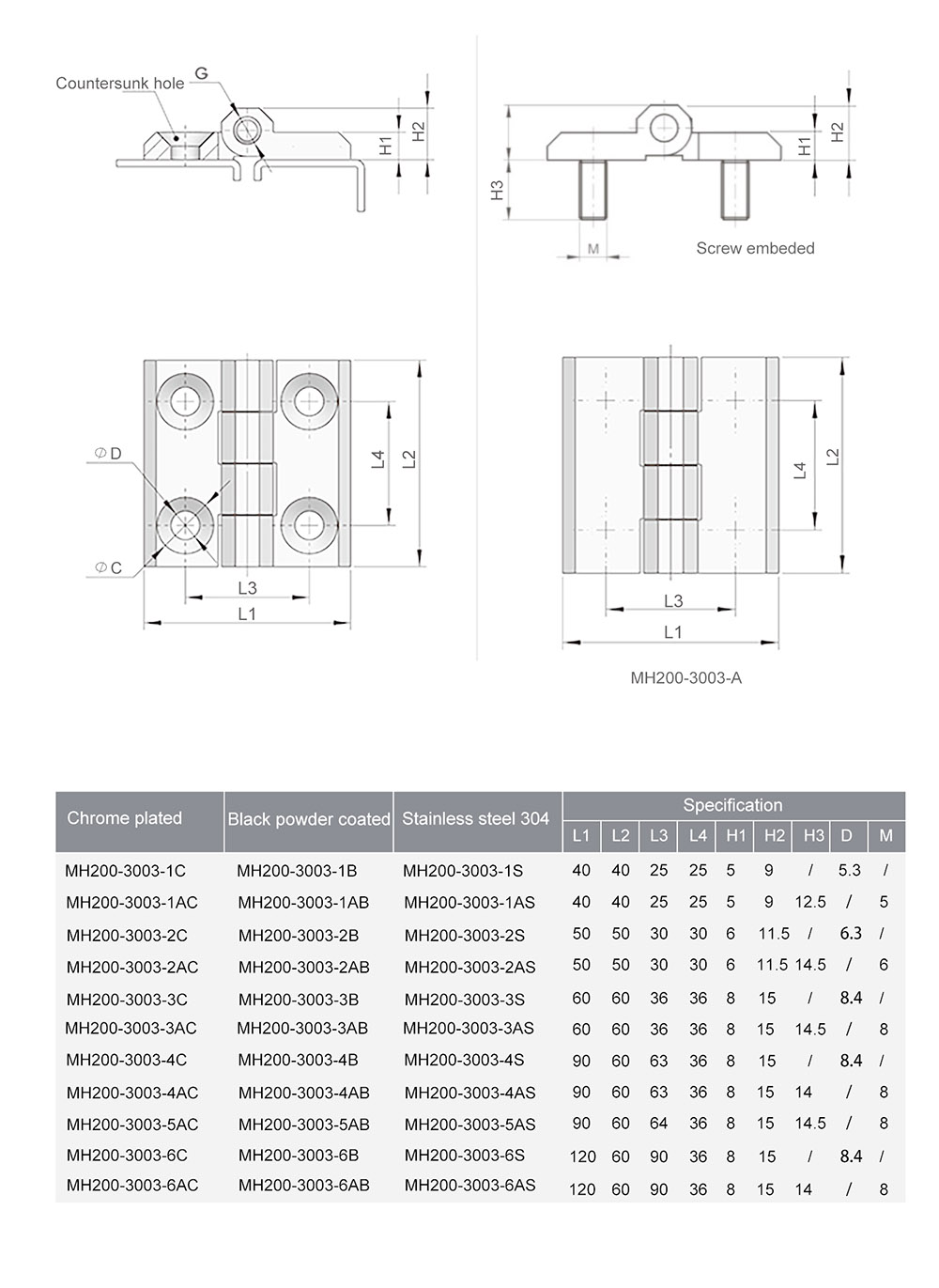

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.
Size
  • 40*40
  • 50*50
  • 60*60
  • 90*60
  • 120*60
  • Hinge type

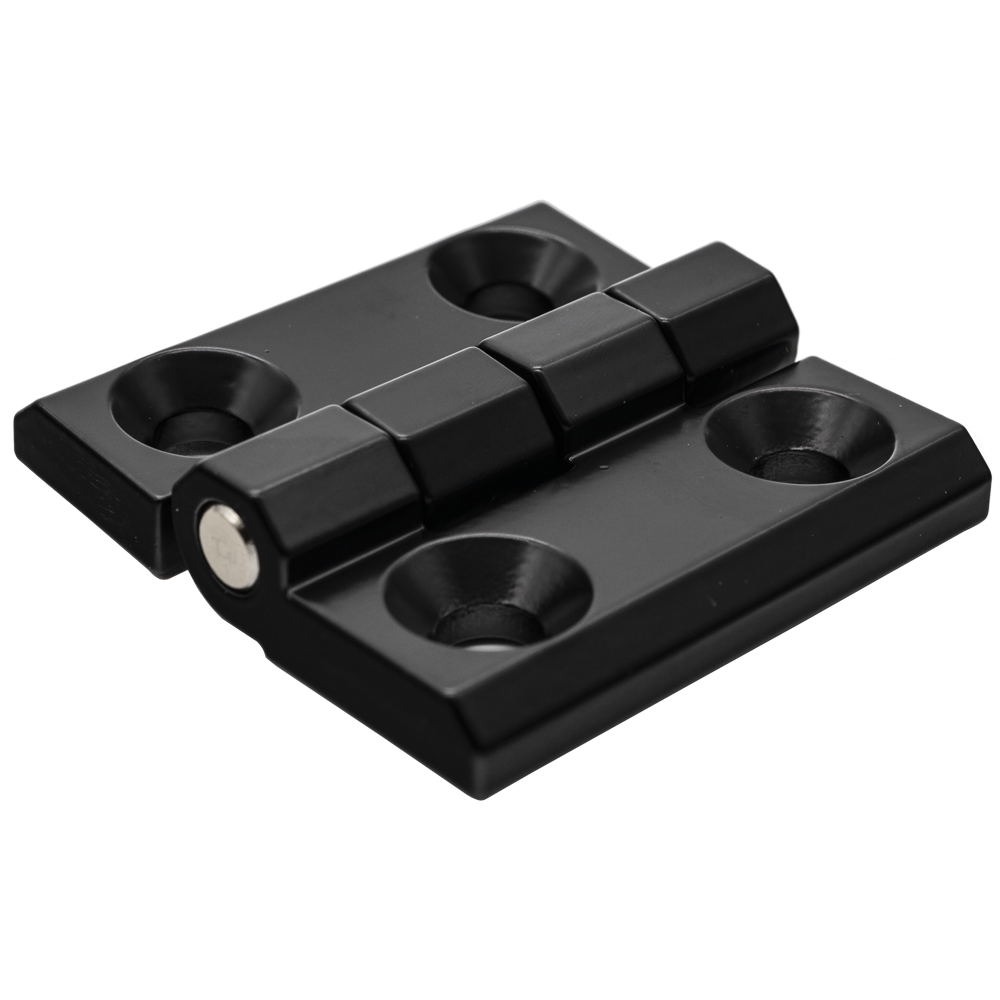

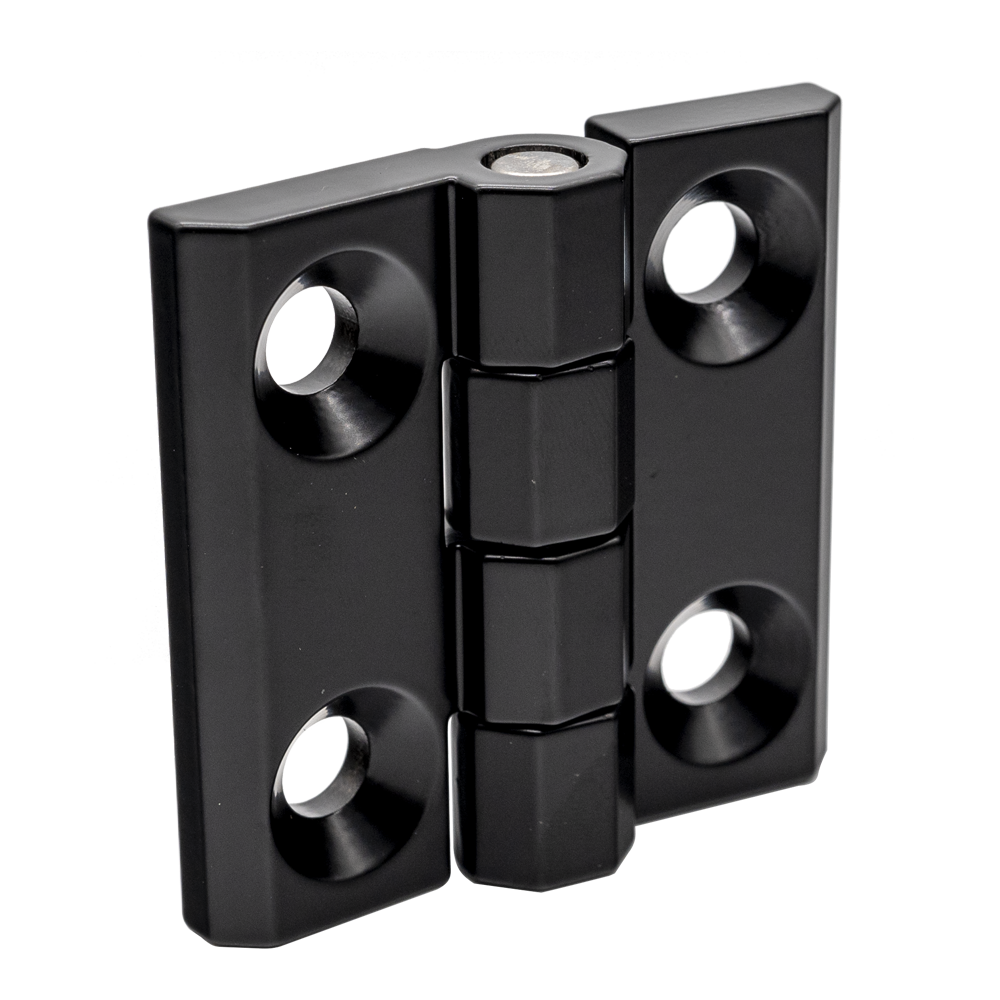

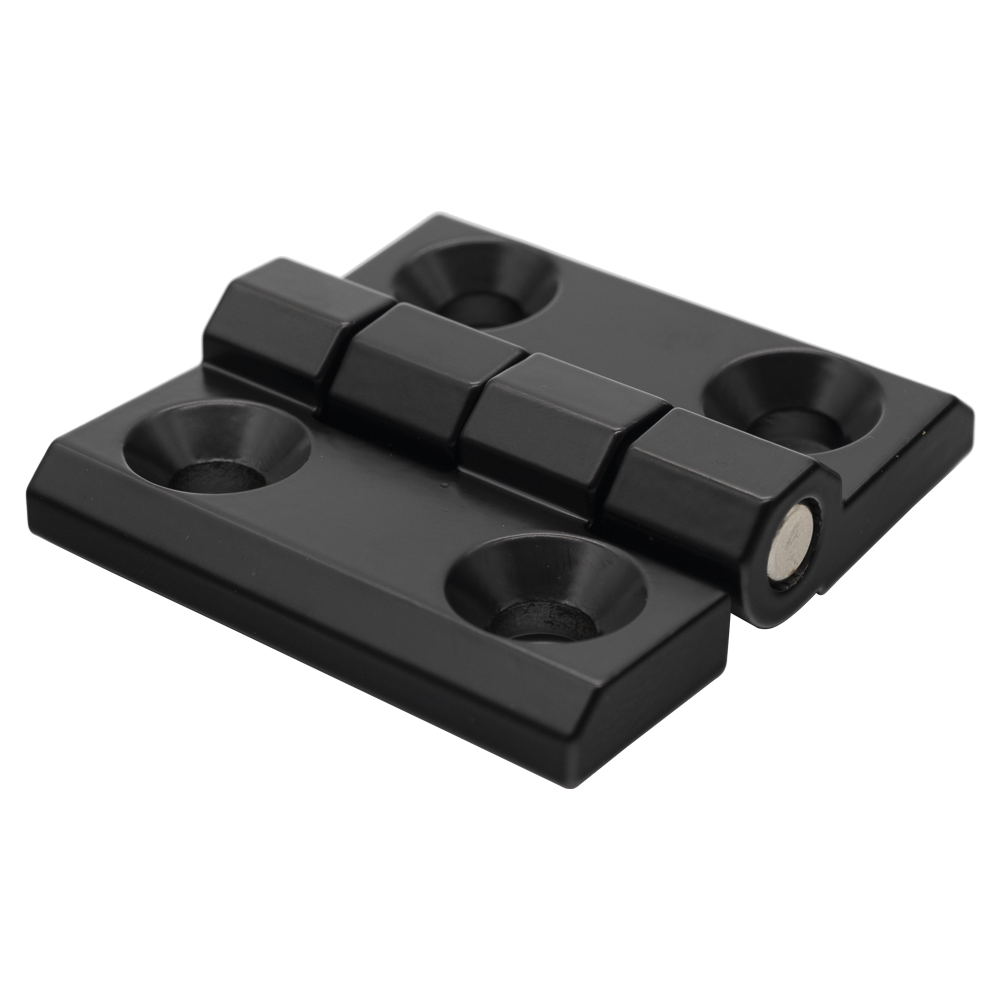

  • with countersunk hole

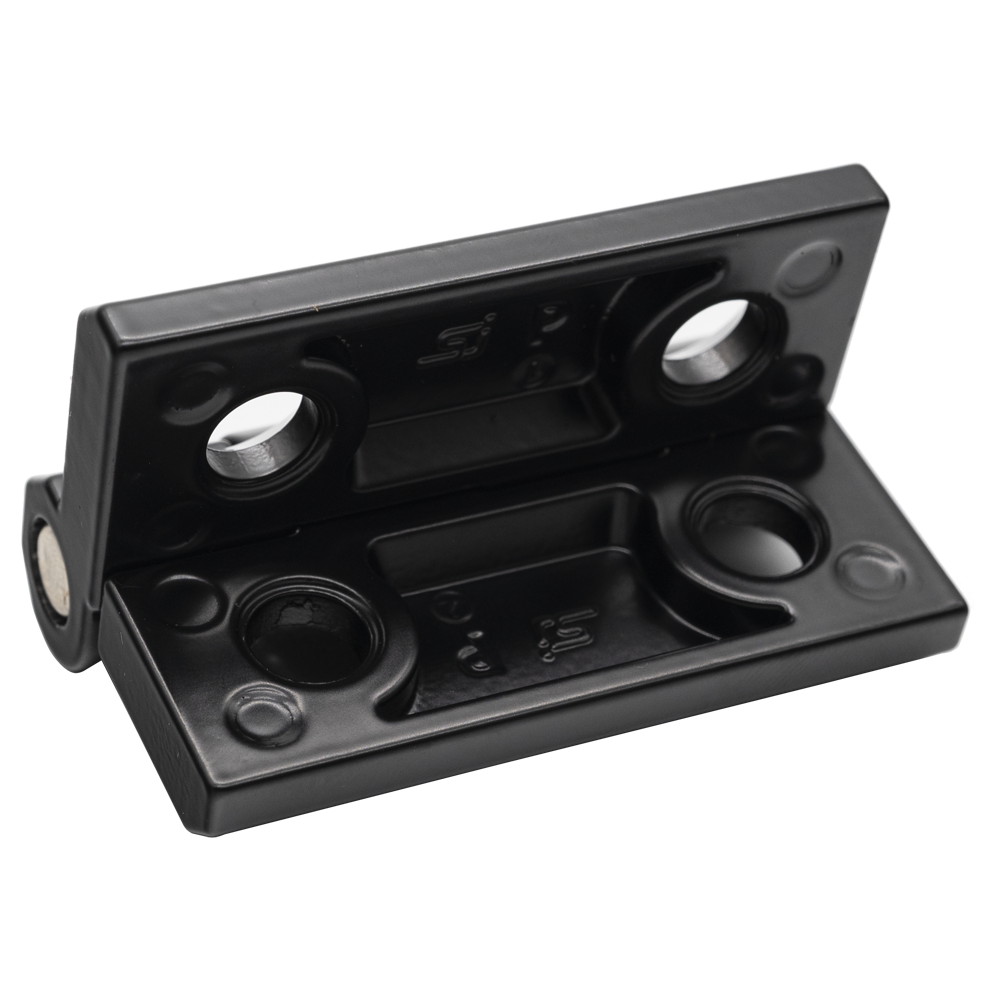

  • with embeded screws
  • Surface
  • Black powder coated
  • Silvery nanometer painting
  • Unexpected quotation for large order

    Do you need a quote?
    For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

    Model:

    EUR 2.87
    excl.VAT
  • Drawing / Specifications
  • More Infrmation

  • Specification

    Material:Zinc Alloy Hinge, Carbon steel bolt

    Finish: Black powder coated or silver nanometer painting, nickel-plated steel pin

    Door opening angle: 180°

    Performance parameter

    Maximum static load

    Model: MH200-3003-1

    Radial load: 1000N  Axial load:1200N

    Model: MH200-3003-2/2A

    Radial load: 1200N  Axial load:1300N

    Model: MH200-3003-3

    Radial load: 1500N  Axial load:1800N

    Embedded screw recommended: Tightening torque: 10N.m
