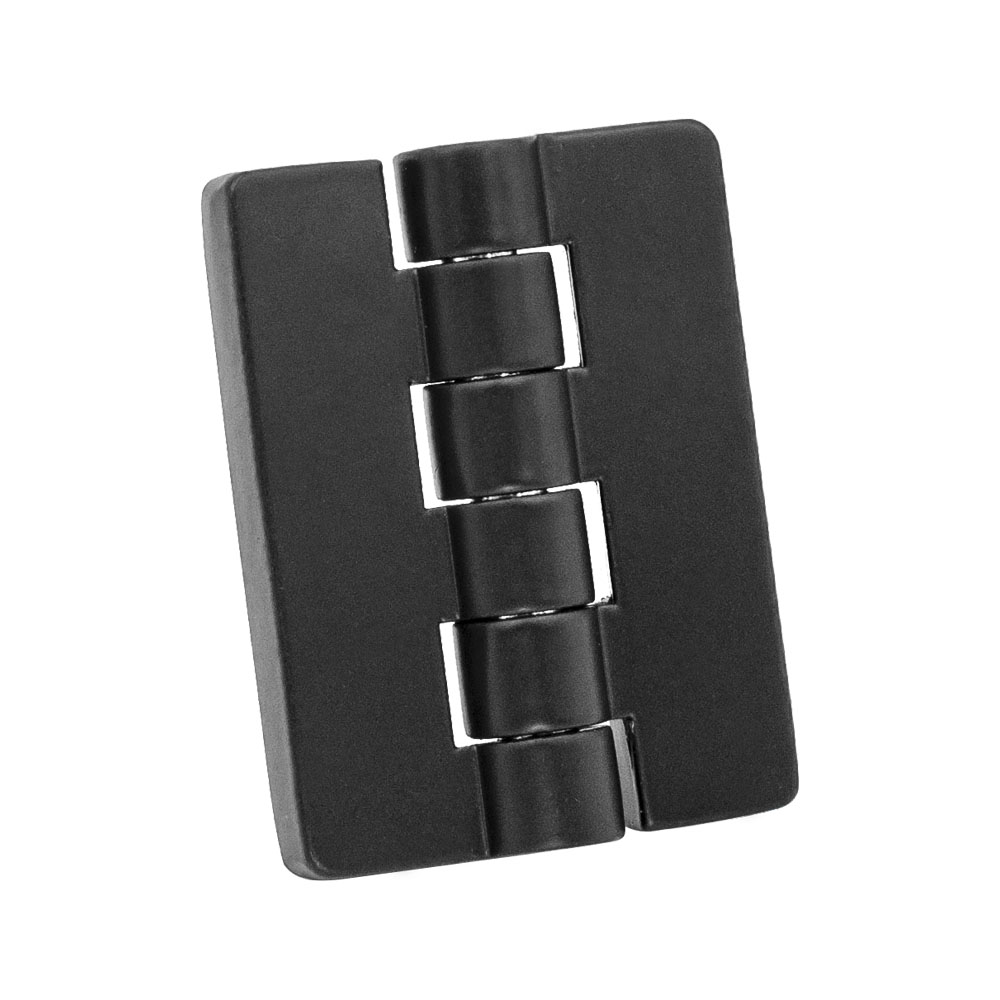

Exposed Screw-on Hinge,Piano Hinge ,Visible Hinge MH200-3001

Zinc Alloy Hinge,Opening angle 180°,Easy Installation,ROHS compliance.Widely used in all kinds enclosures,machines.
Model Selection
Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending(downward) height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending(upward) height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).
The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.
Hinge type

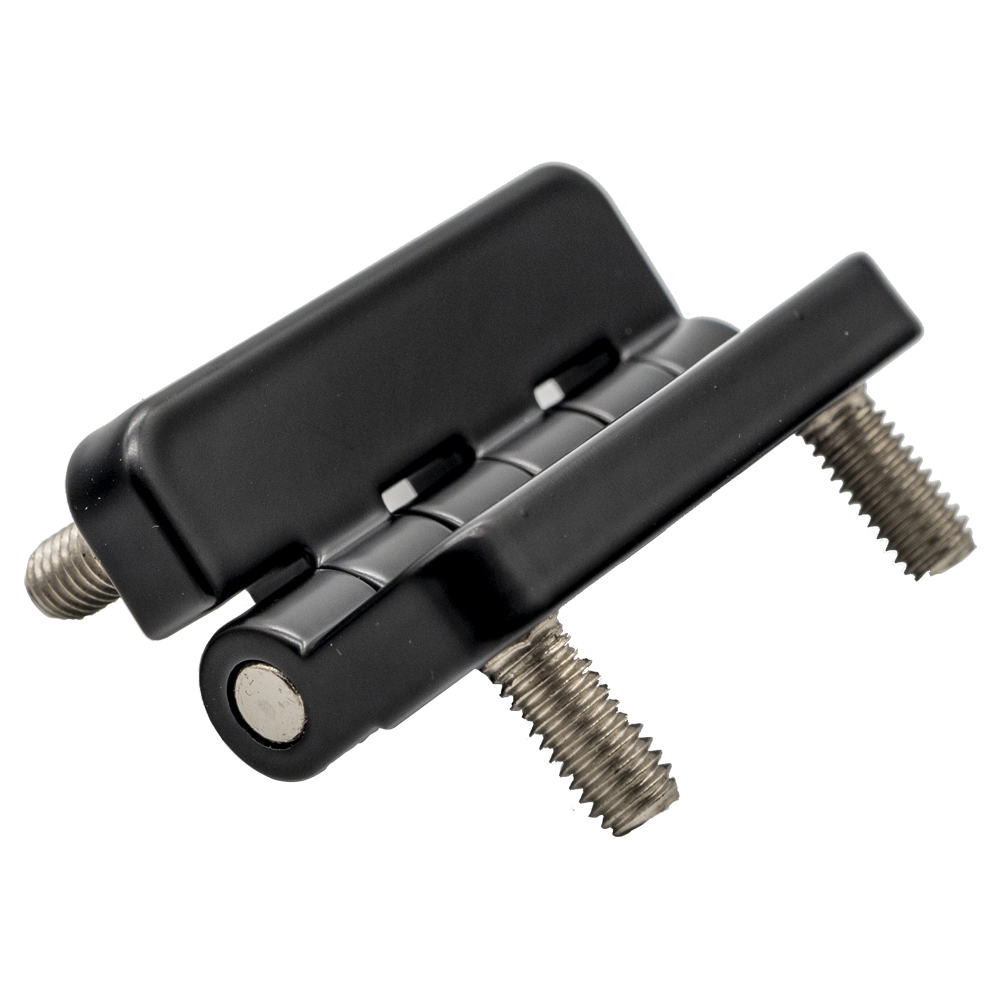

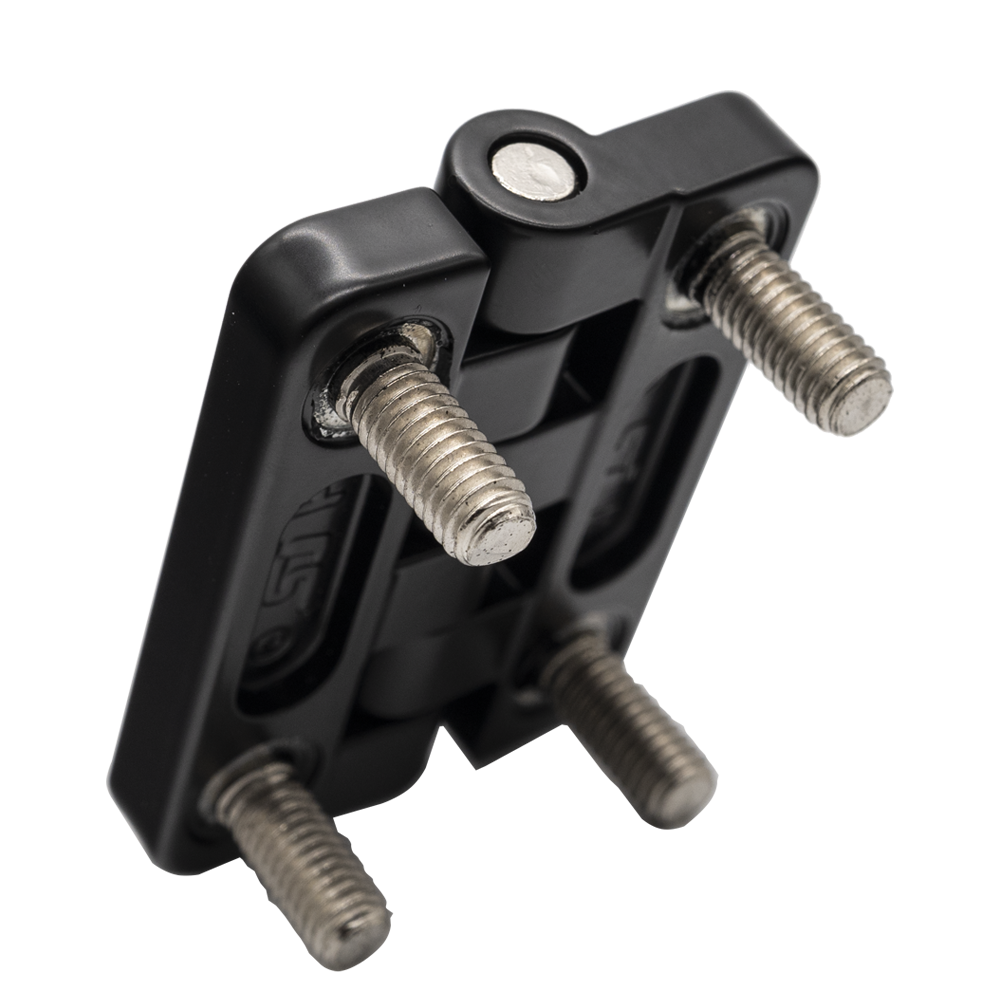

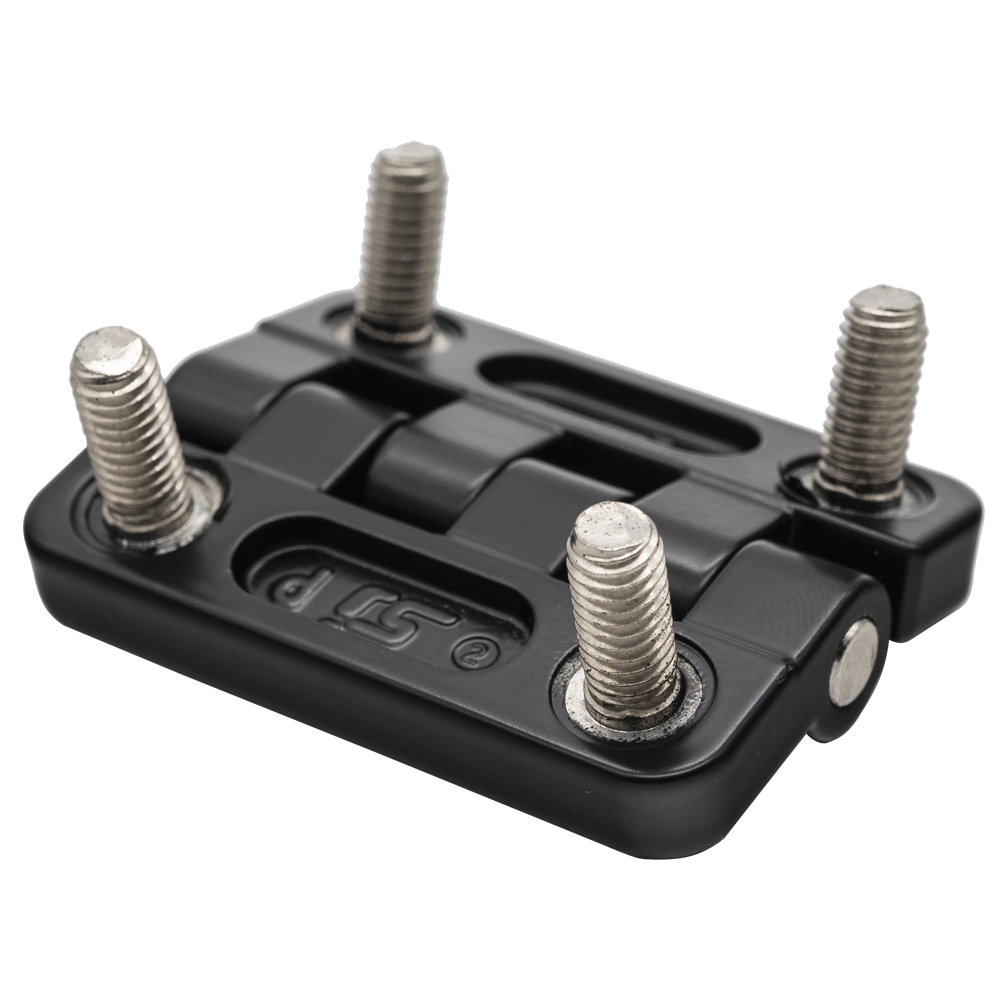

  • with embeded screw
  • with countersunk hole
  • Surface
  • Chrome plated
  • Black powder coated
  • Unexpected quotation for large order

    Do you need a quote?
    For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

    Model:

    EUR 2.99
    excl.VAT

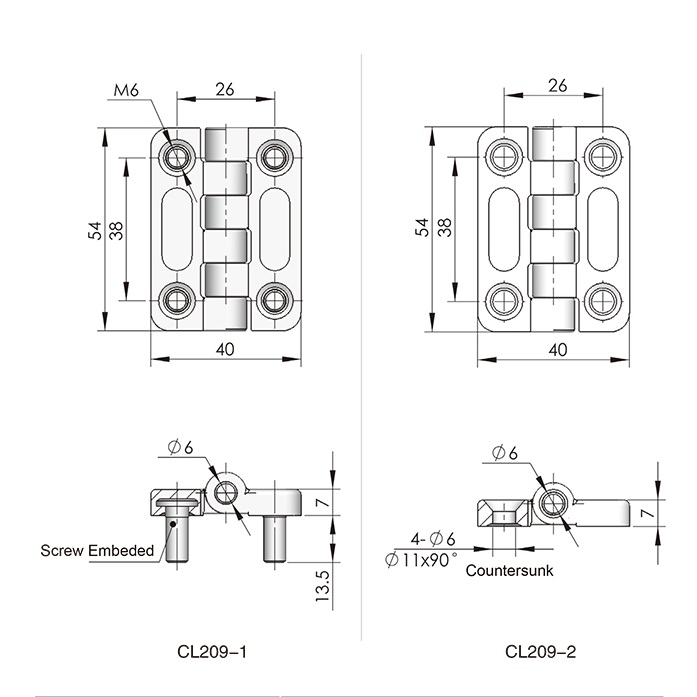

  • Drawing / Specifications
  • More Infrmation

  • Specification

    Main material and finish: Black powder coated or bright chrome plated Zinc Alloy hinge,white zinc plated steel pin

    Door opening angle: 180°

    Performance parameter

    Maximum static load

    Radial load: 1500N

    Axial load: 1800N

    Embedded screw recommended tightening torque : 10N.m
