Corner Hinge MH200-2002

Corner Hinge,Detachable Hinge,Removable hinge
Model Selection
Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending(downward) height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending(upward) height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).
The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.
Door Thickness
  • 1.5mm
  • 2mm
  • Unexpected quotation for large order

    Do you need a quote?
    For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

    Model:

    EUR 2.62
    excl.VAT

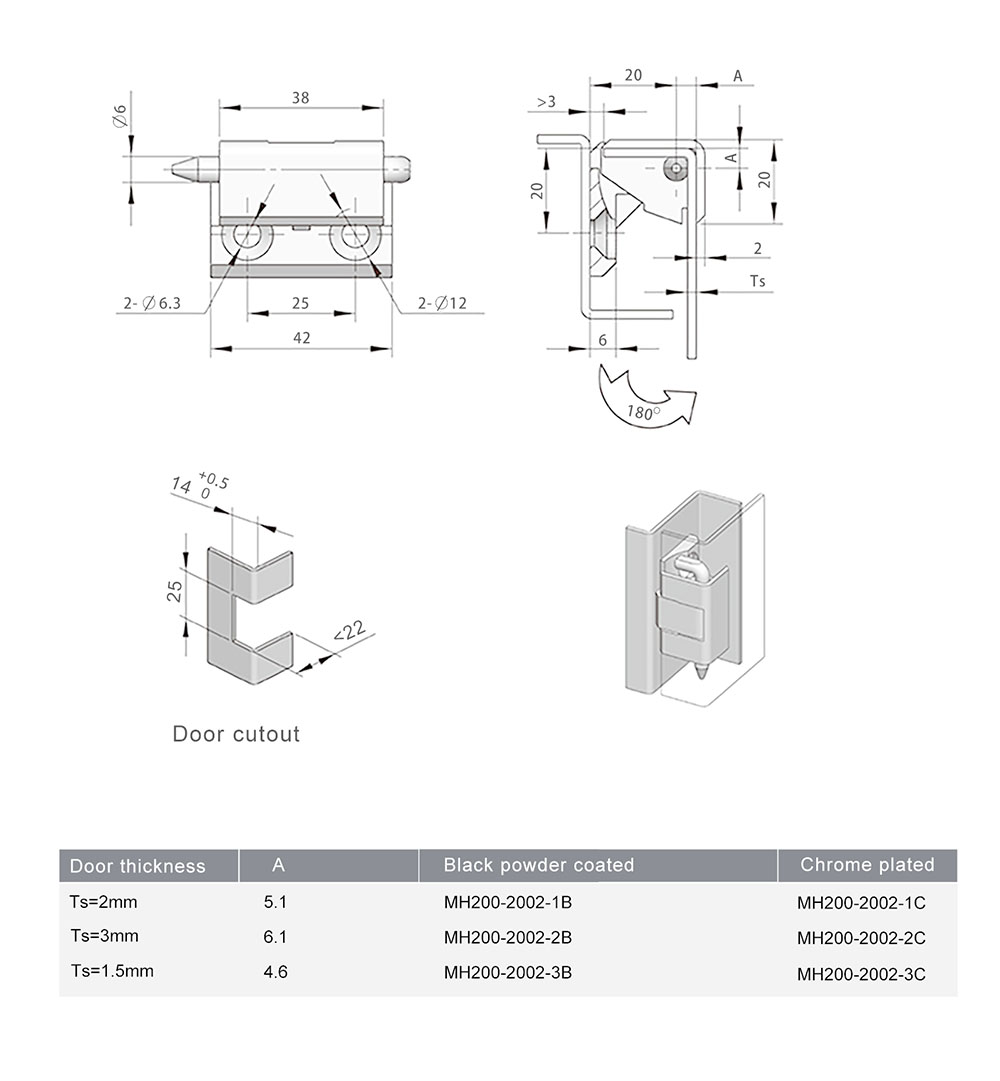

  • Drawing / Specifications
  • More Infrmation

  • Main material and finish:

    Black powder coated ZDC hinge, nickel-plated steel pin


    Application: Opening angle 180°


    Default Ts=2mm
