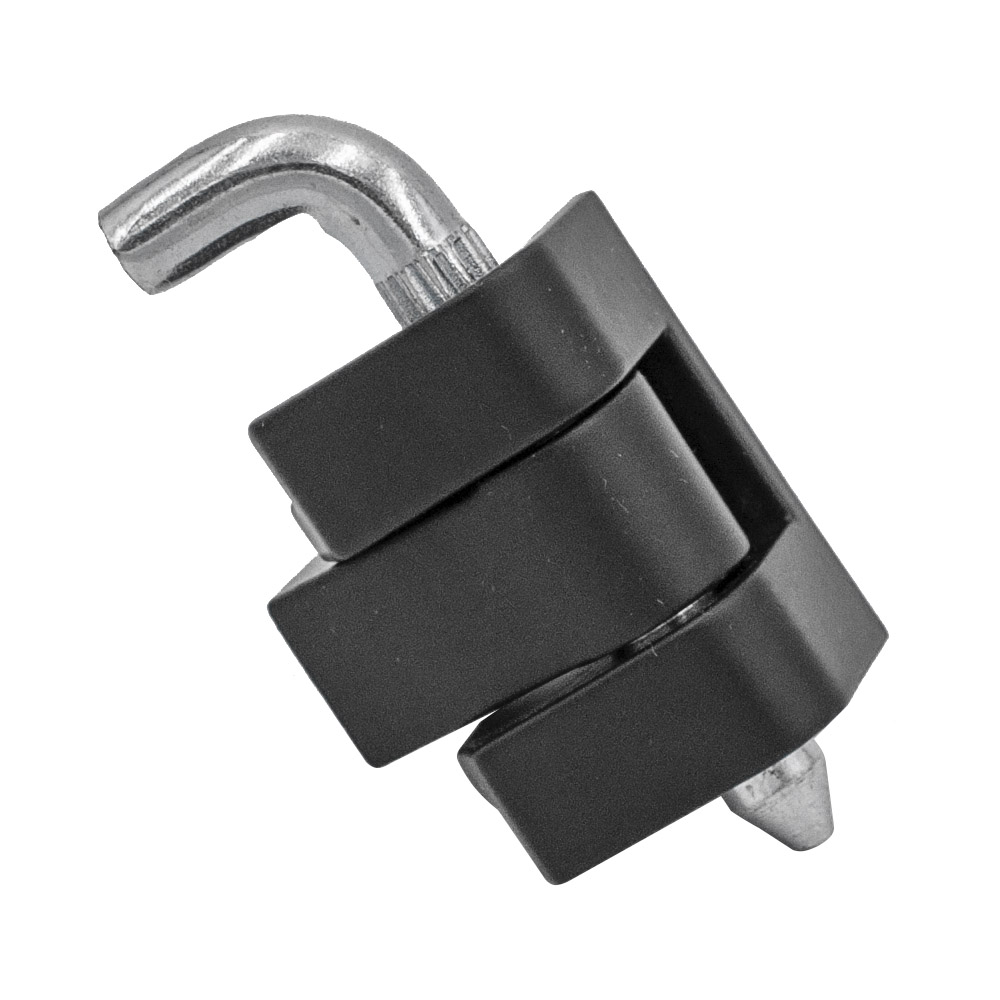

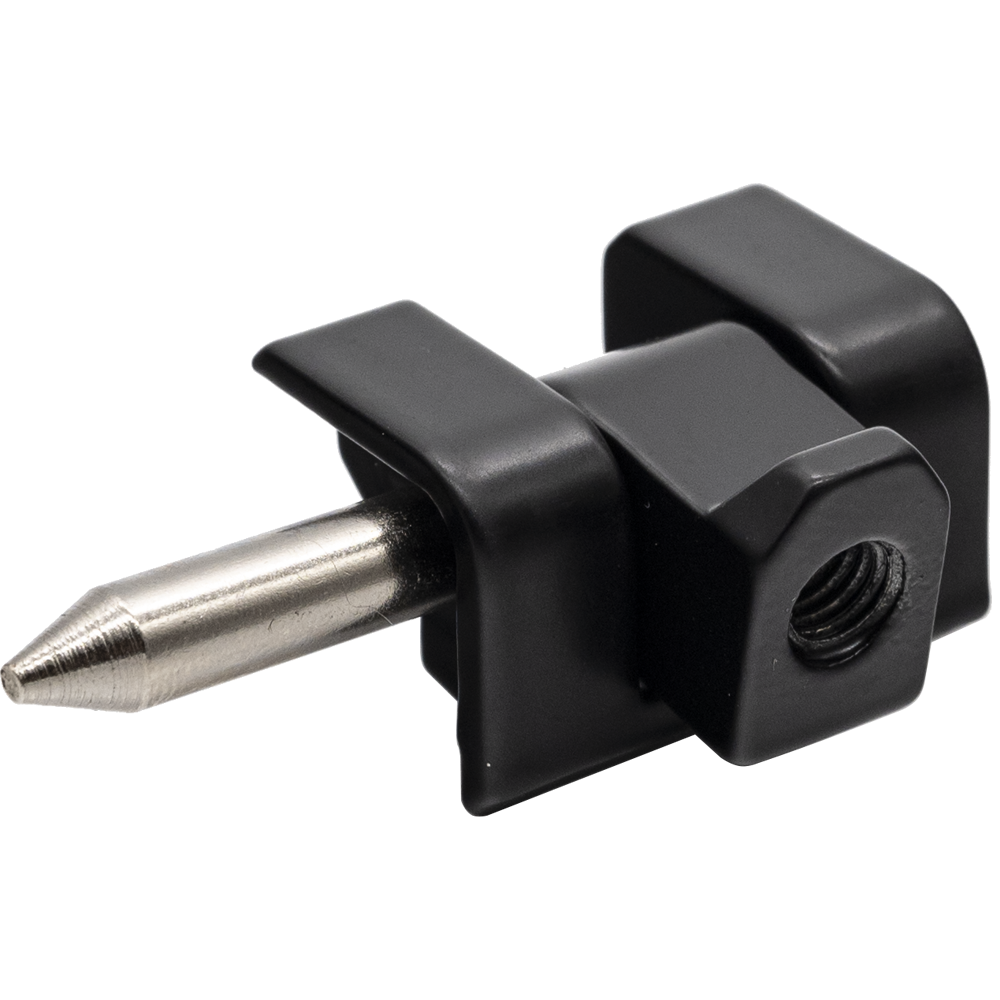

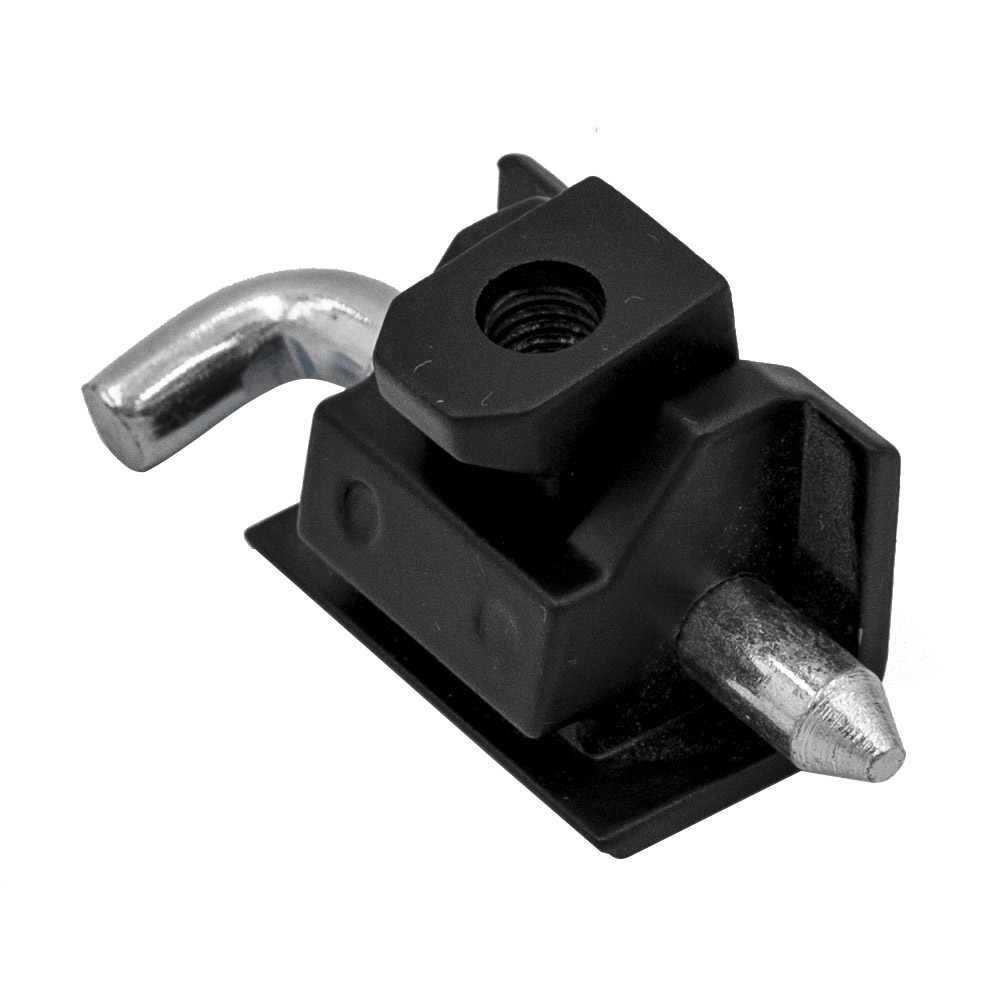

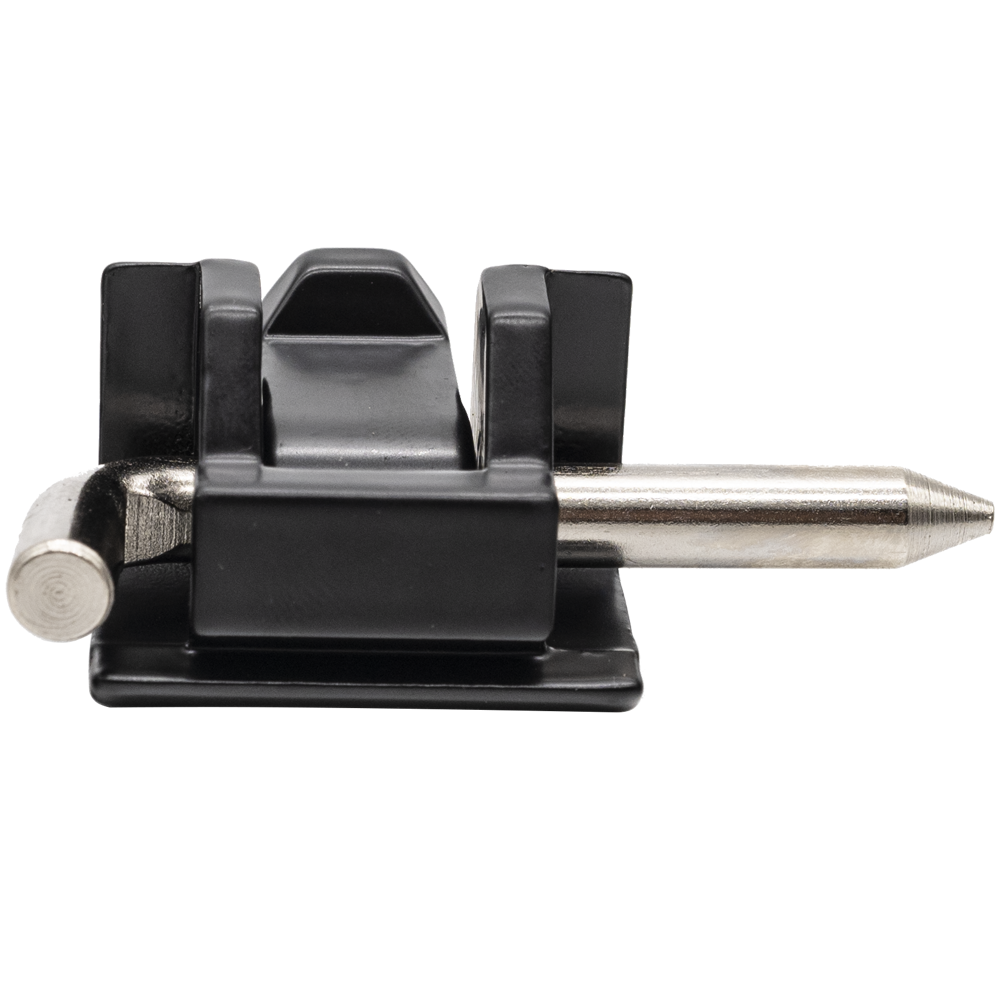

Corner Hinge,Electrical Cabinet Hinge MH200-2001

Zinc Alloy and Stainless Steel versions available,Opening angle 180°,ROHS compliance
Model Selection
Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending(downward) height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending(upward) height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).
The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.
Door Thickness
  • 1.5mm
  • 2mm
  • Surface
  • Chrome plated
  • Black powder coated
  • Unexpected quotation for large order

    Do you need a quote?
    For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

    Model:

    EUR 2.42
    excl.VAT

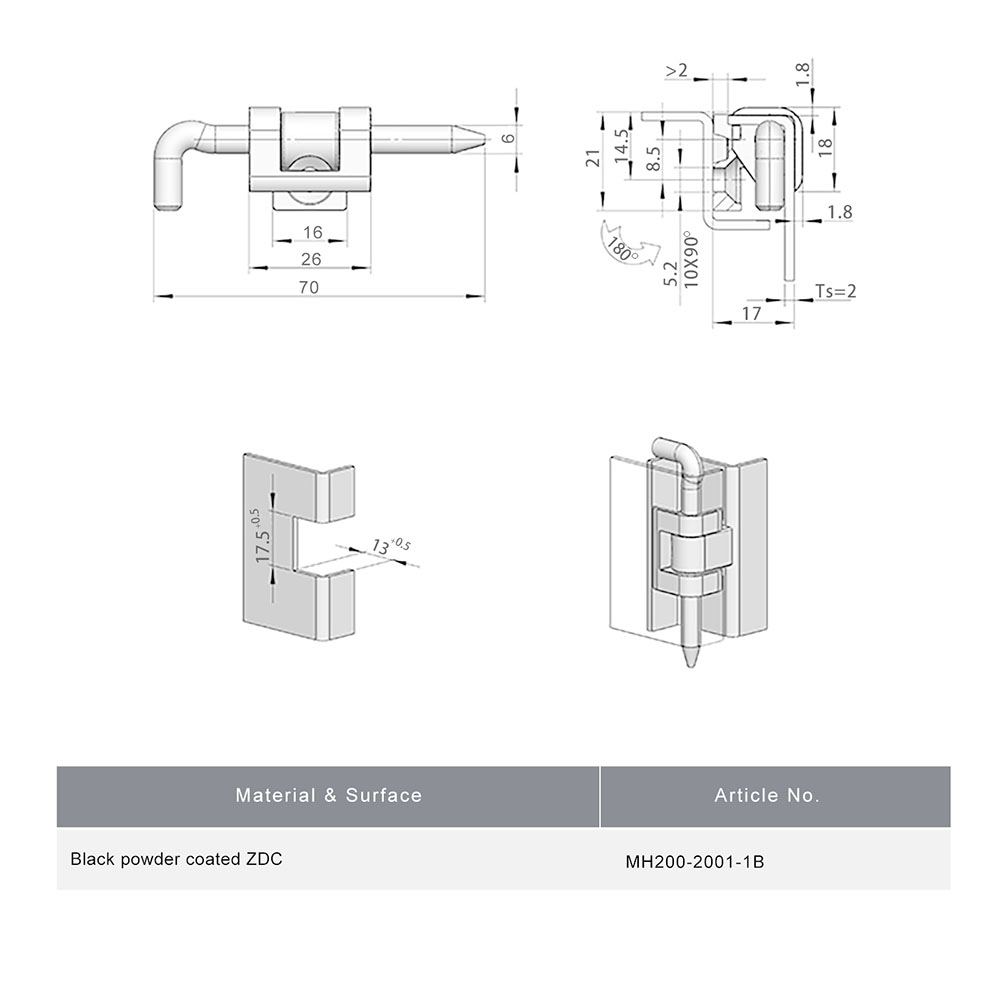

  • Drawing / Specifications
  • More Infrmation

  • Main material and finish:

    Black powder coated Zinc alloy hinge,nickel-plated steel pin.

    Door opening angle 180°


    Default: Ts=2mm
