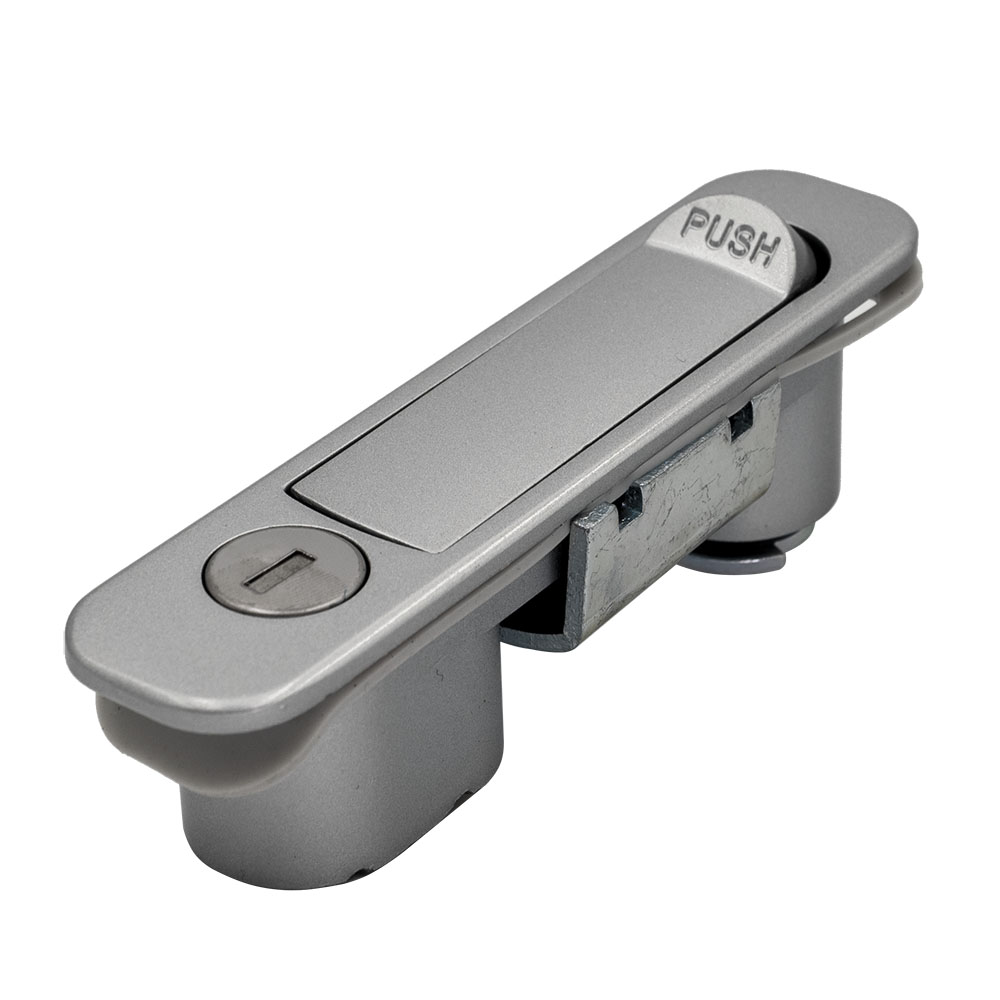

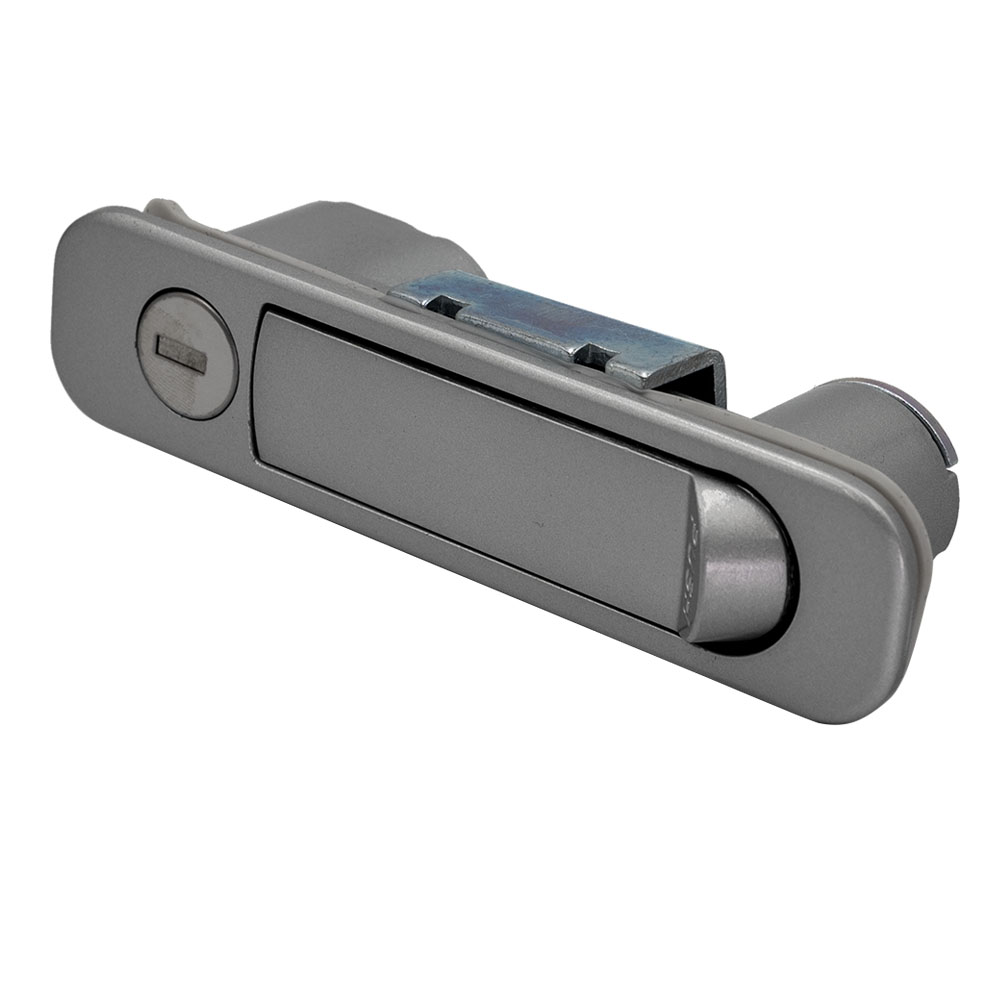

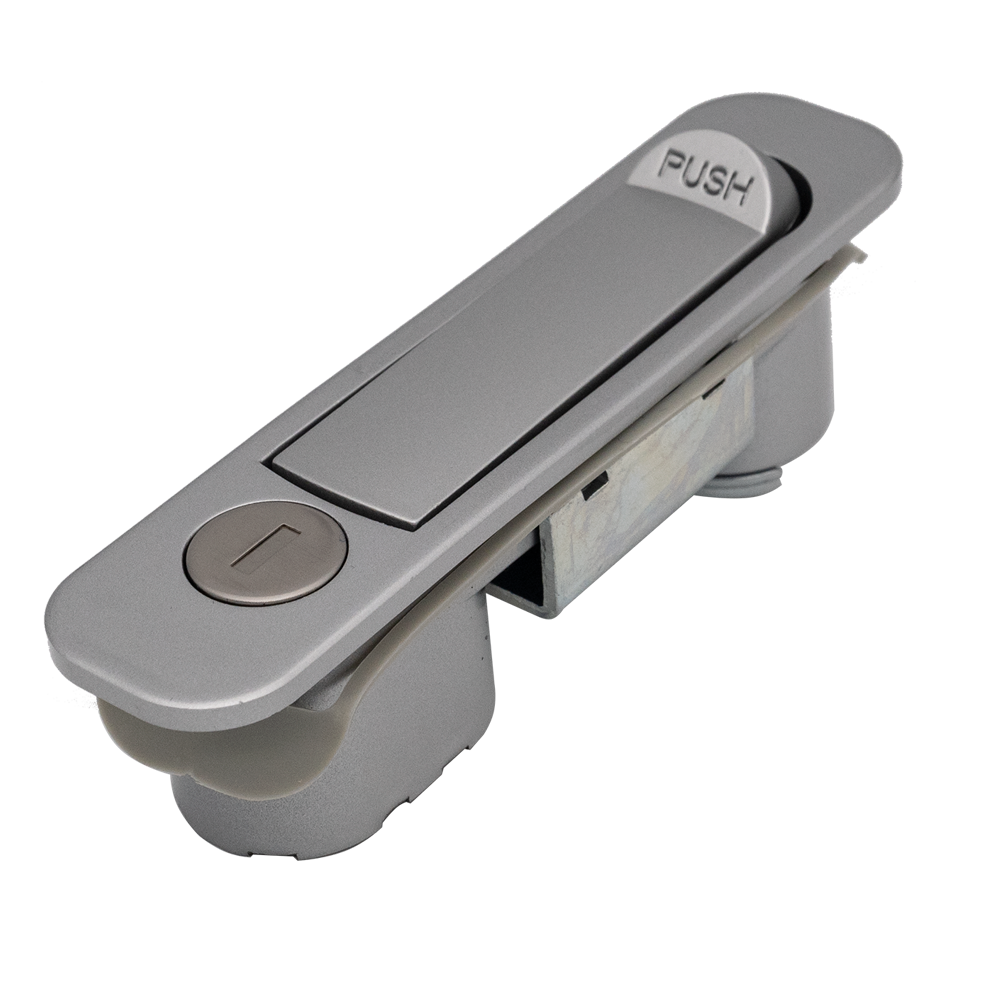

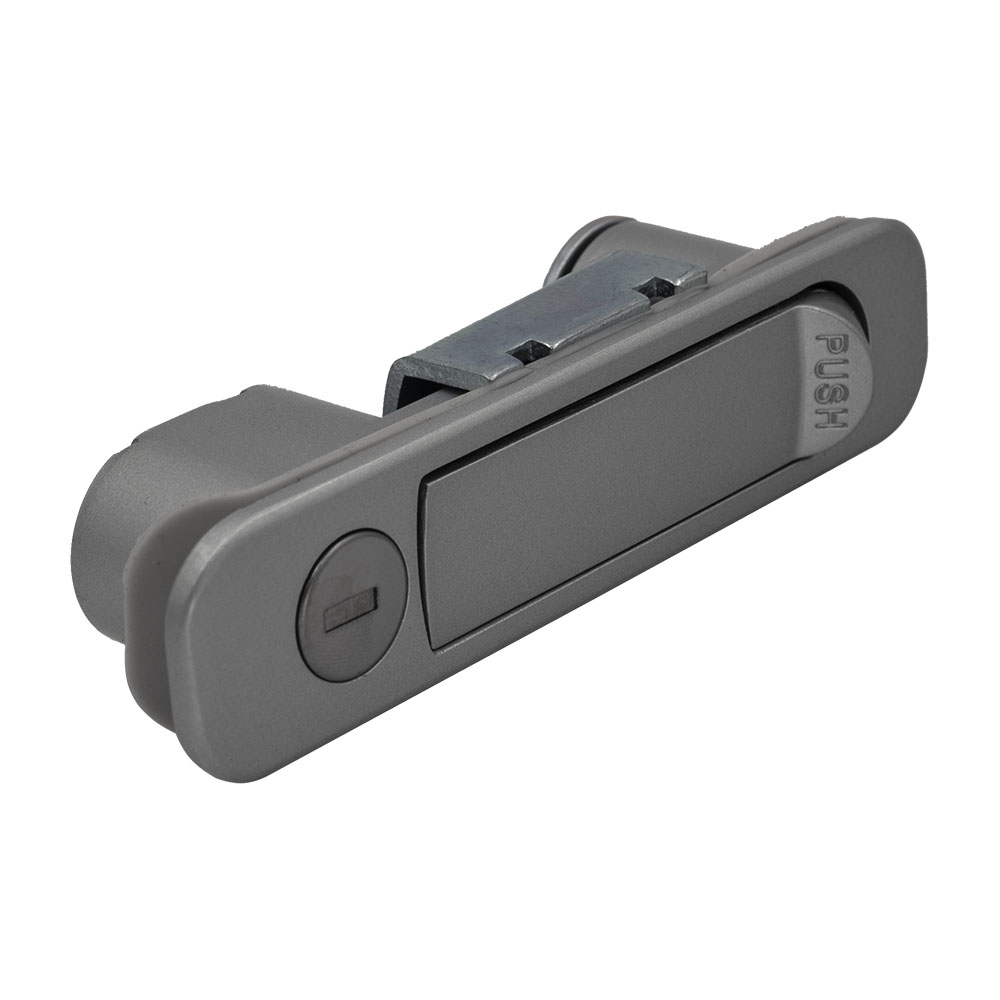

Flush Swinghandle Lock,Slim Swinghandle,Electric Cabinet door lock ML100-4003

Silvery Nanometer painted Zinc Alloy housing,handle and insert,Size:115*27.5mm,1P or 3P cam locking,Quick Open,Easy Installation,ROHS compliance
Model Selection
Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending(downward) height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending(upward) height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

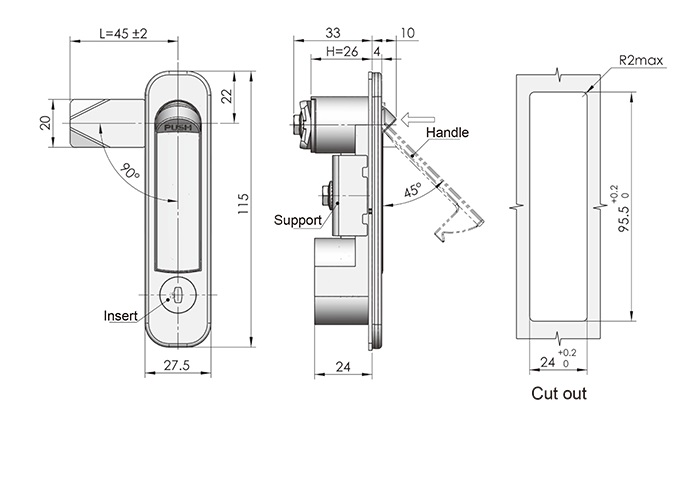

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.
Surface
  • Silvery nanomter painting
  • Black painting
  • Cam option
  • without cam
  • with cam
  • Unexpected quotation for large order

    Do you need a quote?
    For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

    Model:

    EUR 6.94
    excl.VAT
  • Drawing / Specifications
  • More Infrmation

  • Specification

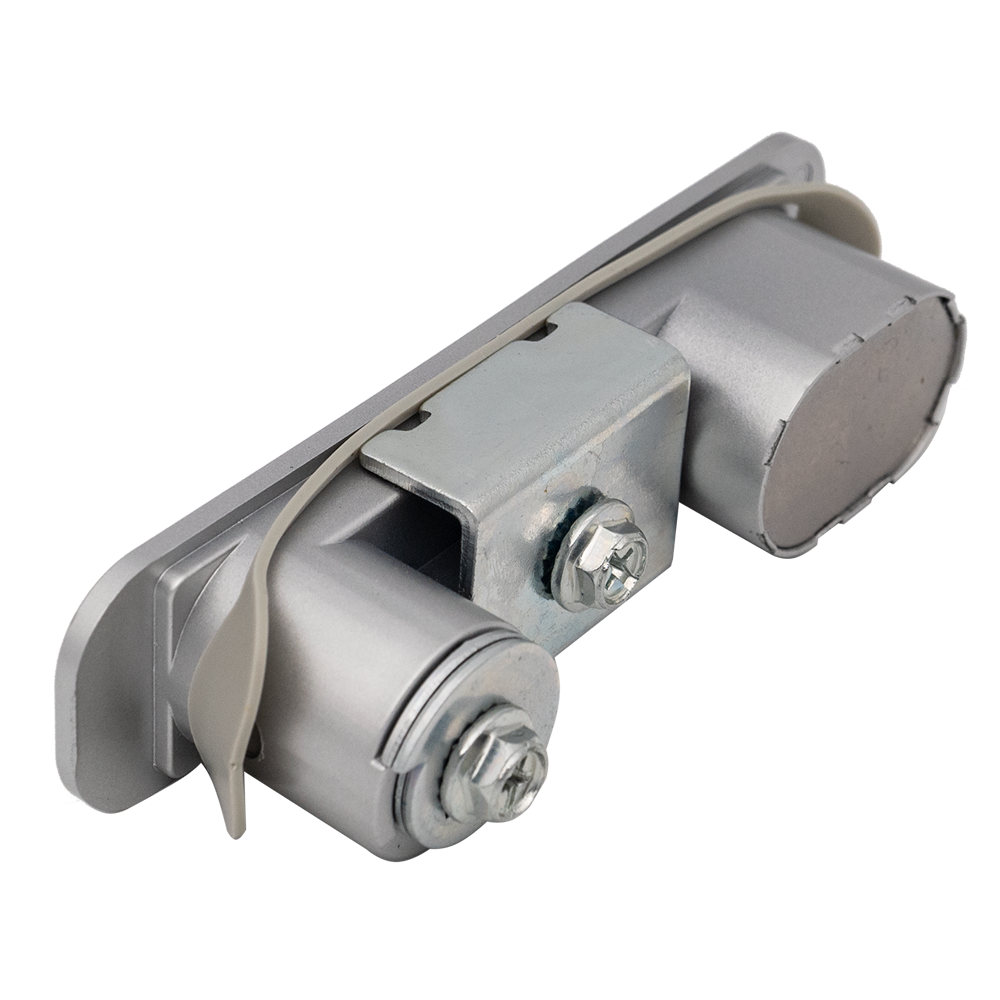

    Main material and finish: Nanometer  painted ZDC housing and handle, ZDC insert,  white zinc plated steel support and cam

    Application: Quick-open,easy assembling.  One-point locking or three-point locking  function will be achieved with different cam  mounted on.

    Remarks: Default key k110  Default cam: S1B4500

    Performance parameter

    Handle load tension capability:≤340N

    Handle load torque capability: ≤11N.m

    Maximum static load: 270N
