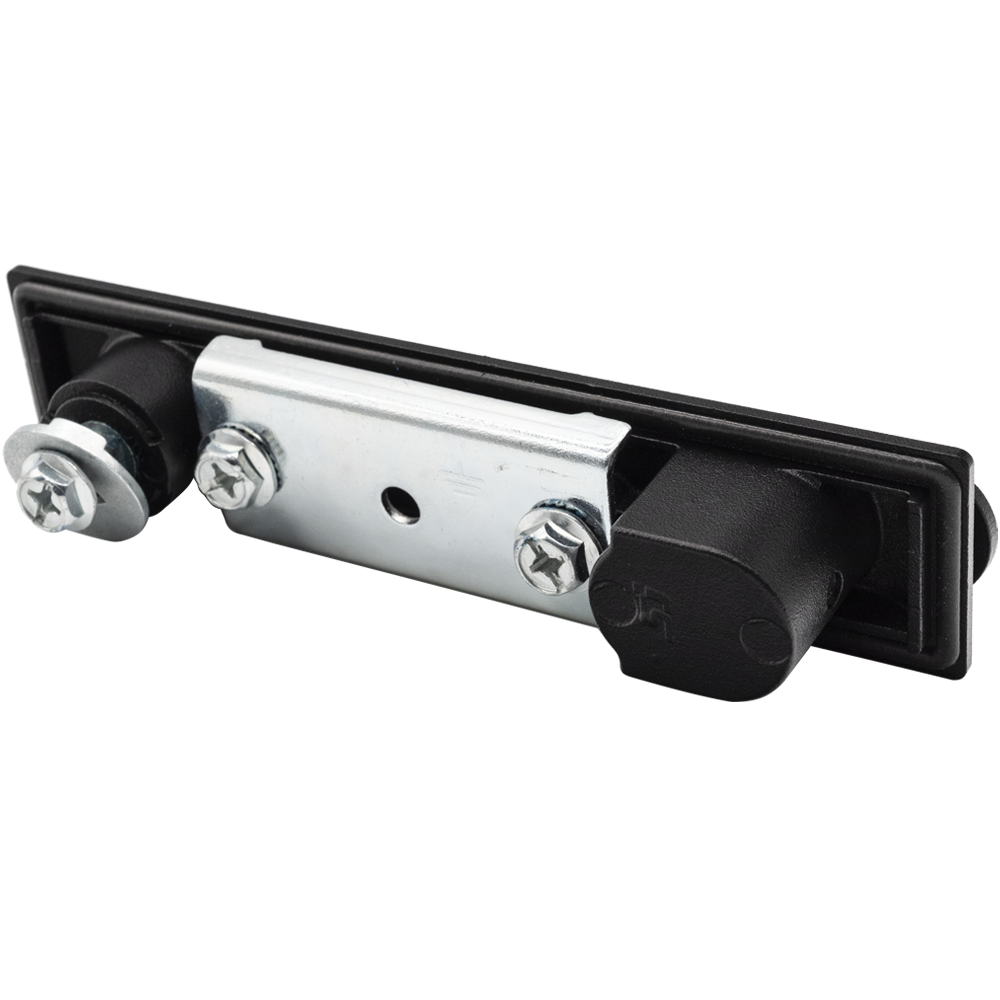

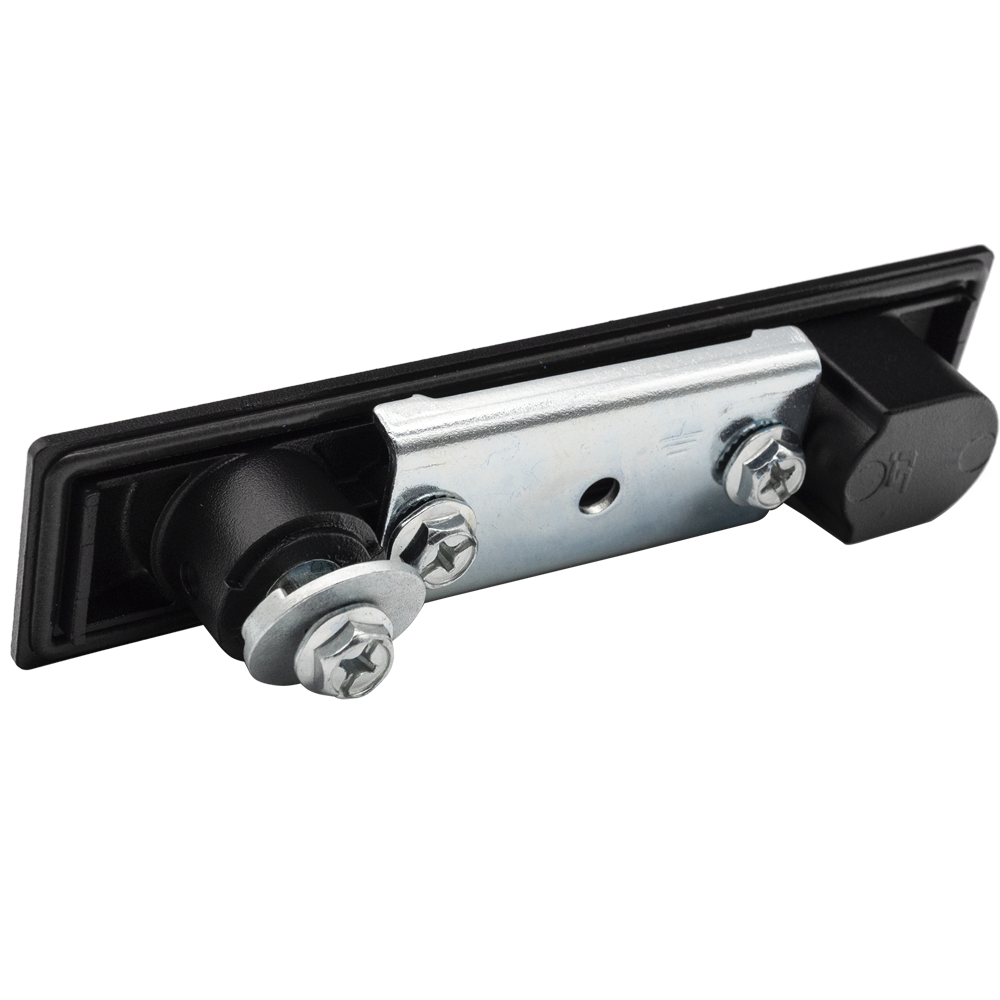

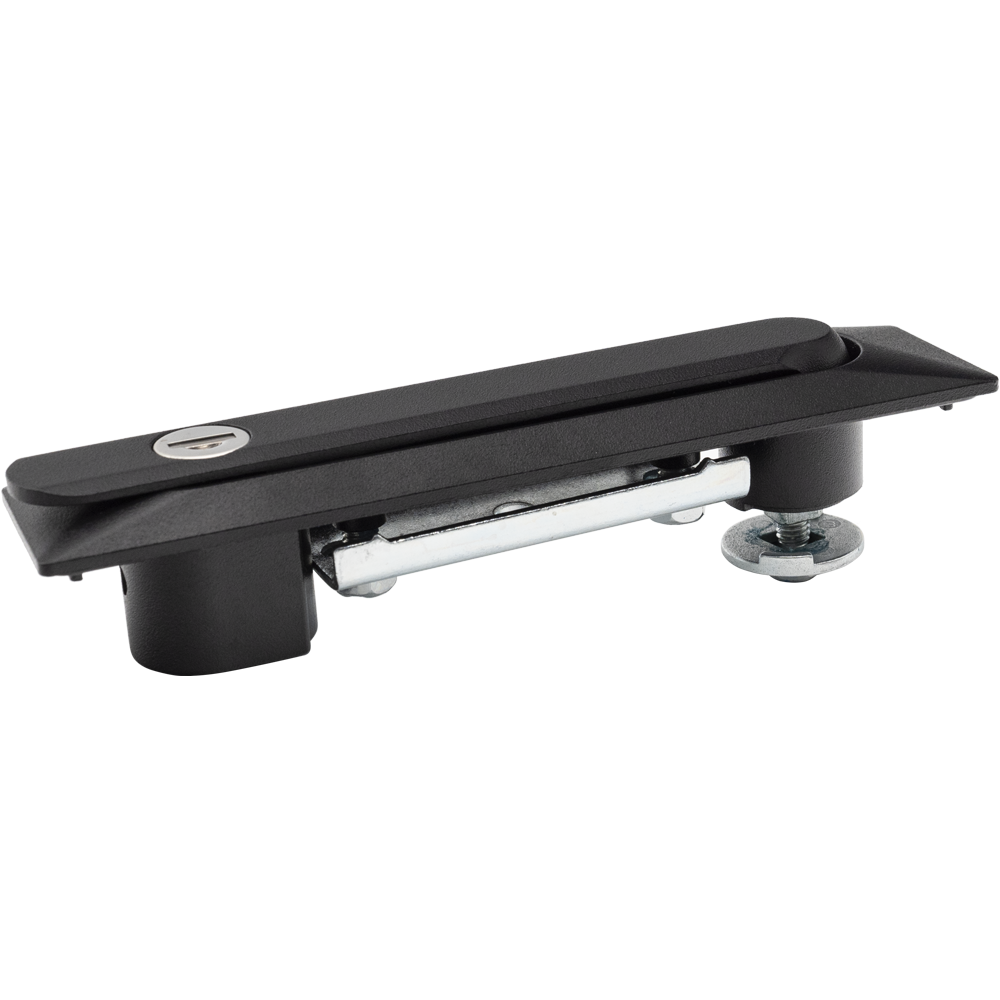

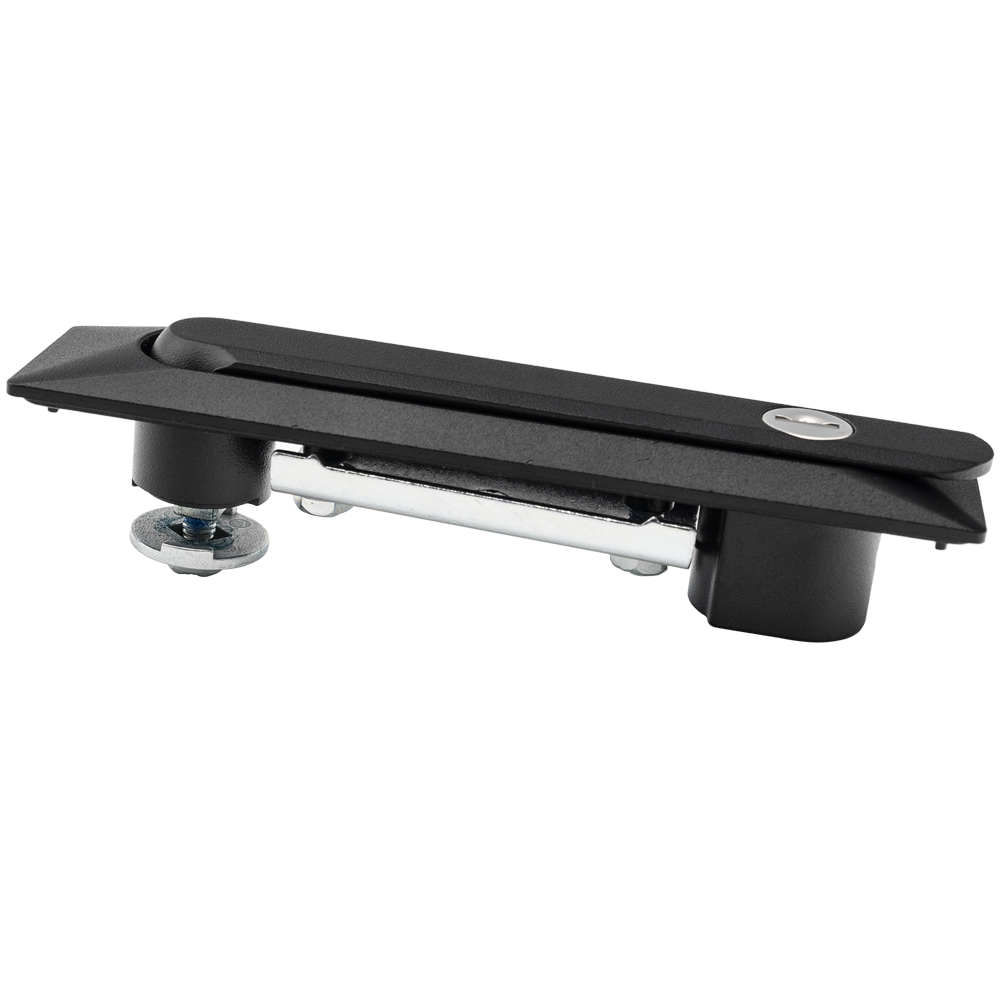

Swinghandle Lock,Server Cabinet Door Lock ML100-4001

Zinc Alloy and PA6 versions available,two sizes 160*36mm and 120*36mm,90°open and lock,Easy Installation,ROHS compliance
Model Selection
Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending(downward) height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending(upward) height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

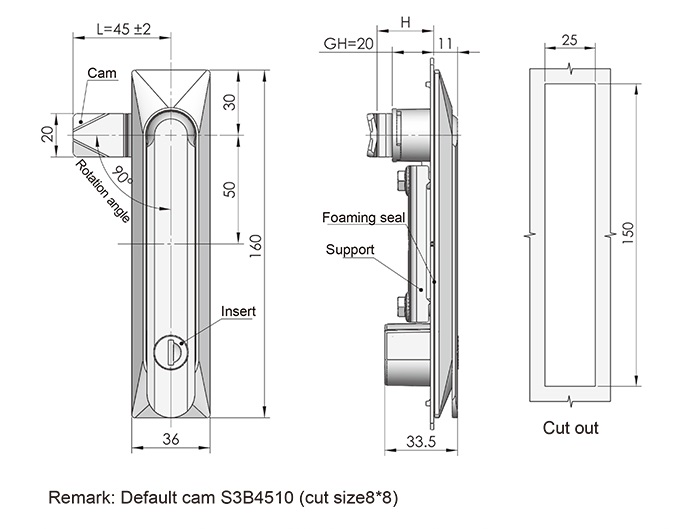

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.
Material
  • PA
  • Zinc alloy
  • Unexpected quotation for large order

    Do you need a quote?
    For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

    Model:

    EUR 13.99
    excl.VAT
  • Drawing / Specifications
  • More Infrmation

  • Specification

    Main material and finish: ZDC housing,  handle and shaft, white zinc-plated steel  cam

    Application: Open the handle upward,  quarter-turn rotation opening

    Remarks: Default K1333 key ;Default cam: S3B4510

    Performance parameter

    Handle load tension capability:≤390N

    Handle load torque capability: ≤12N.m

    Maximum static load: 300N
