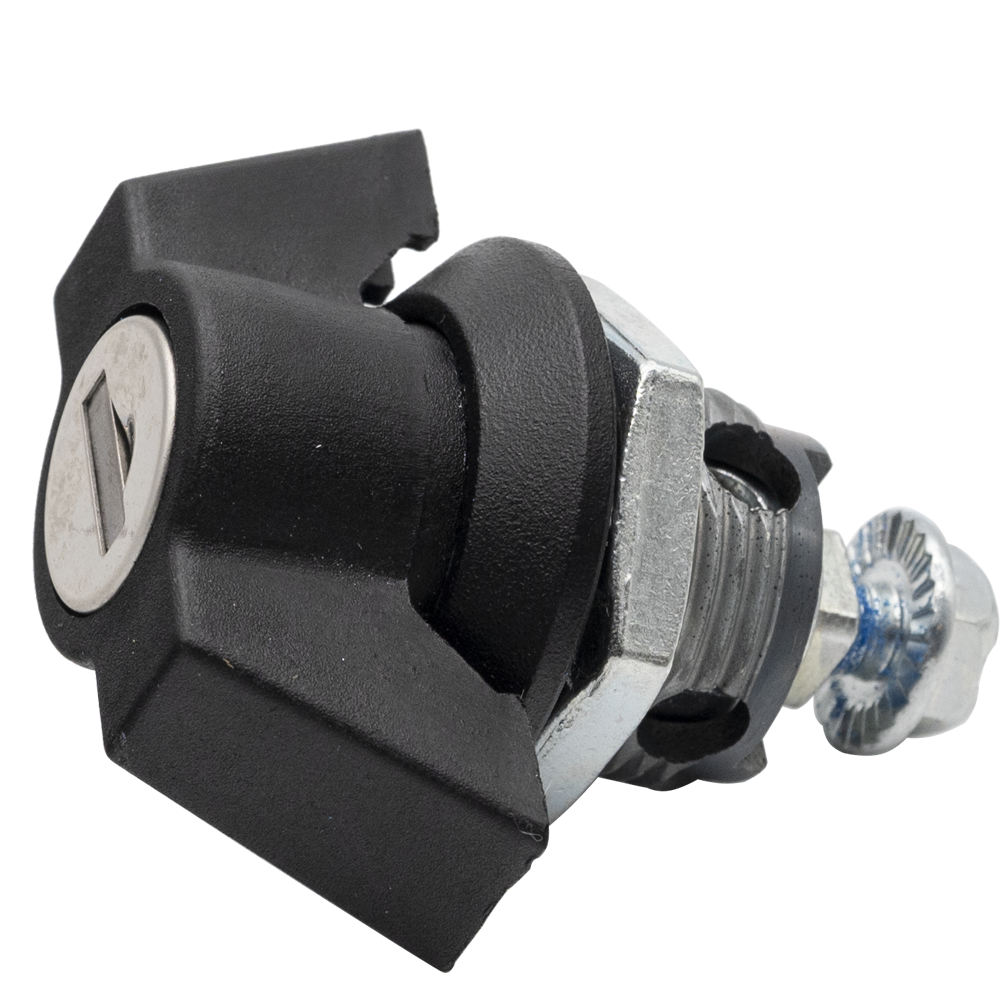

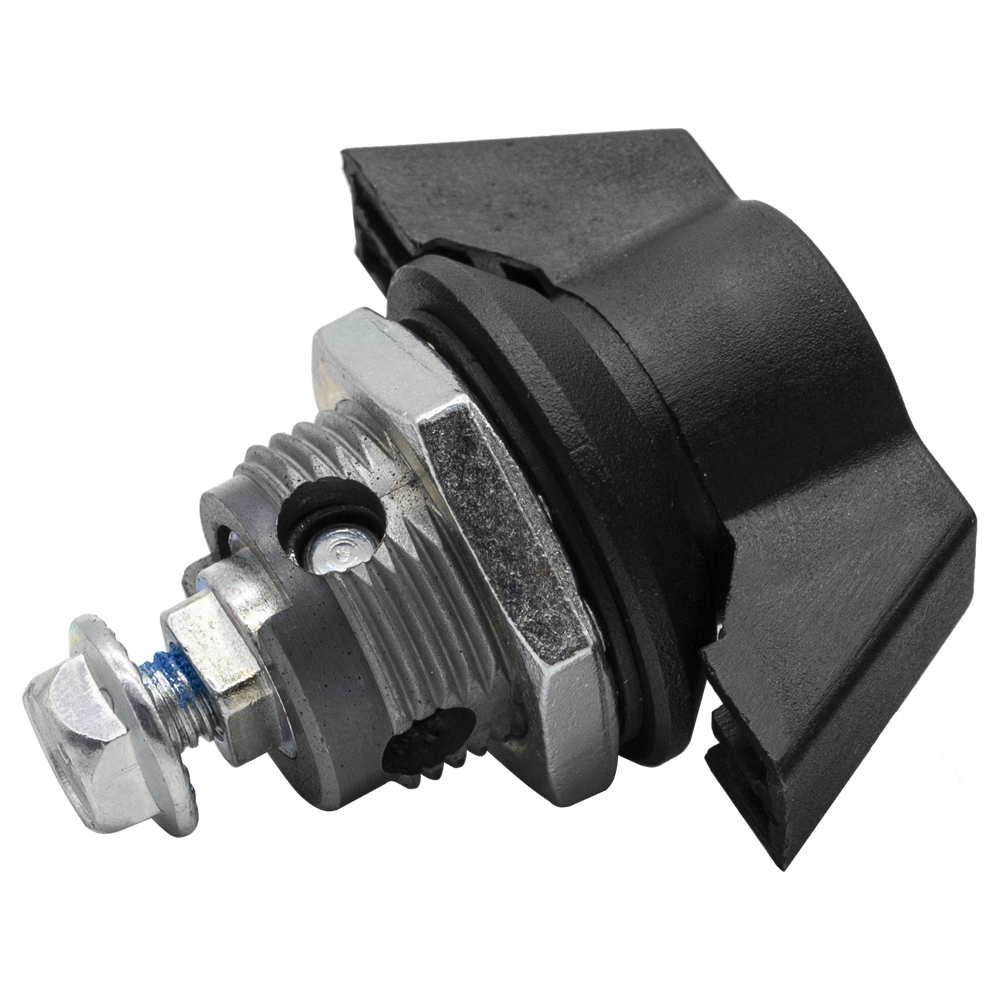

Quarter Turn Wing Knob,Cam Lock ML100-1012

Black PA Wing Knob and Zinc Alloy housing and insert,different keys available,Housing Length 18mm,30mm,40mm available,Door Cutout: Ø22.5*20.1mm,Easy Installation,ROHS compliance

Download

Model Selection

clear

Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending（downward） height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending（upward） height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).
The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.

Key type

with key

without key
