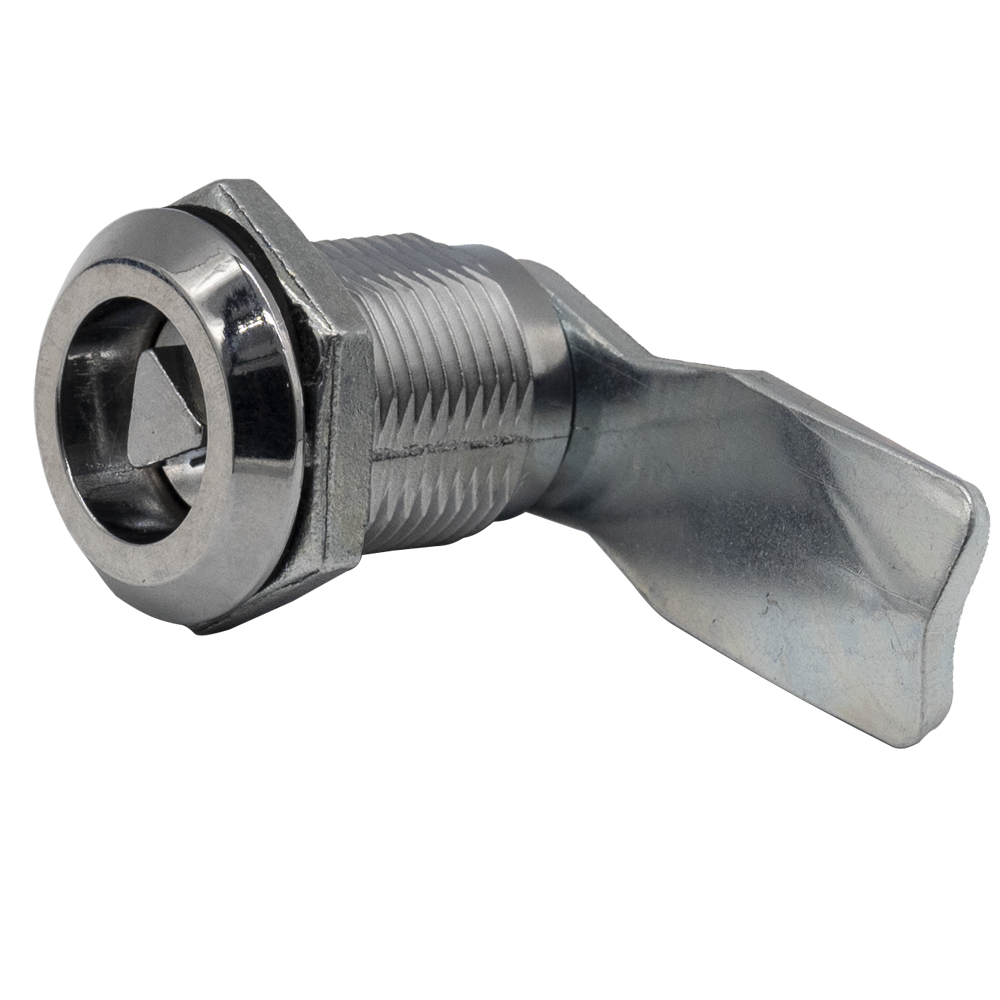

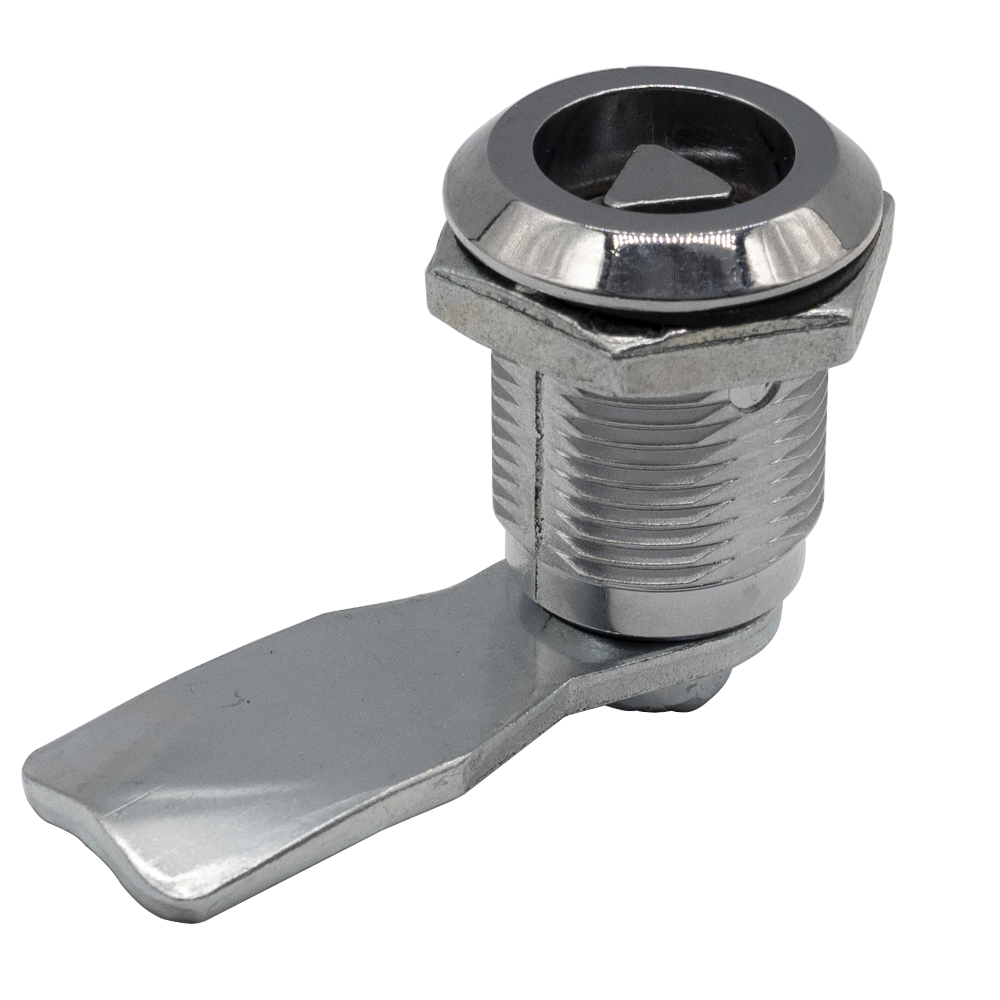

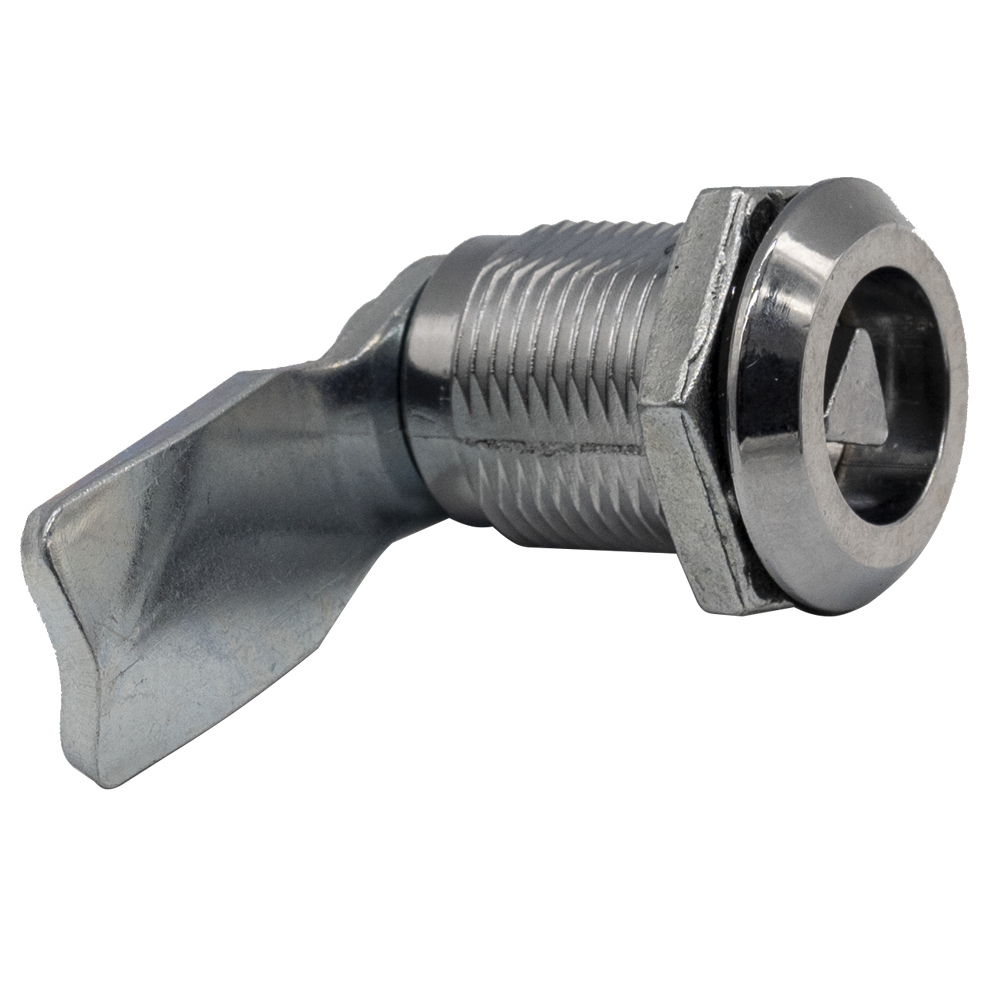

Quarter-Turn Lock, Cam Lock ML100-1001

Zinc Alloy and Stainless Steel versions available,Housing Lengths 18mm,28mm,36mm,62mm available,different Insert Type available,Head Diameter Ø28,Door Cutout: Ø22.5*20.1mm,Easy Installation,ROHS

Download

Model Selection

clear

Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending（downward） height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending（upward） height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

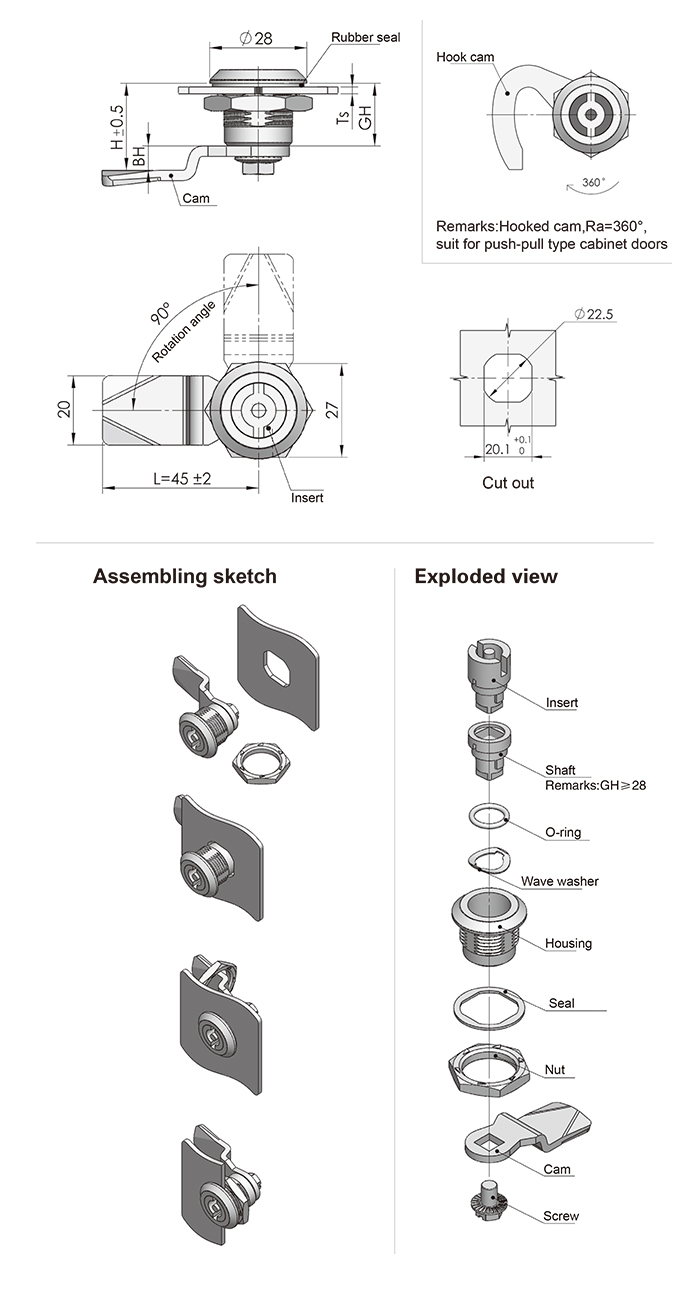

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.

Material

PA

Zinc alloy

SUS304

Surface

Chrome plated

Black powder coated

natural

Insert type

Double bit 4mm

triangle 7mm

square 8mm

slot

Cam option

without cam

with cam

Unexpected quotation for large order

Do you need a quote?

For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.
