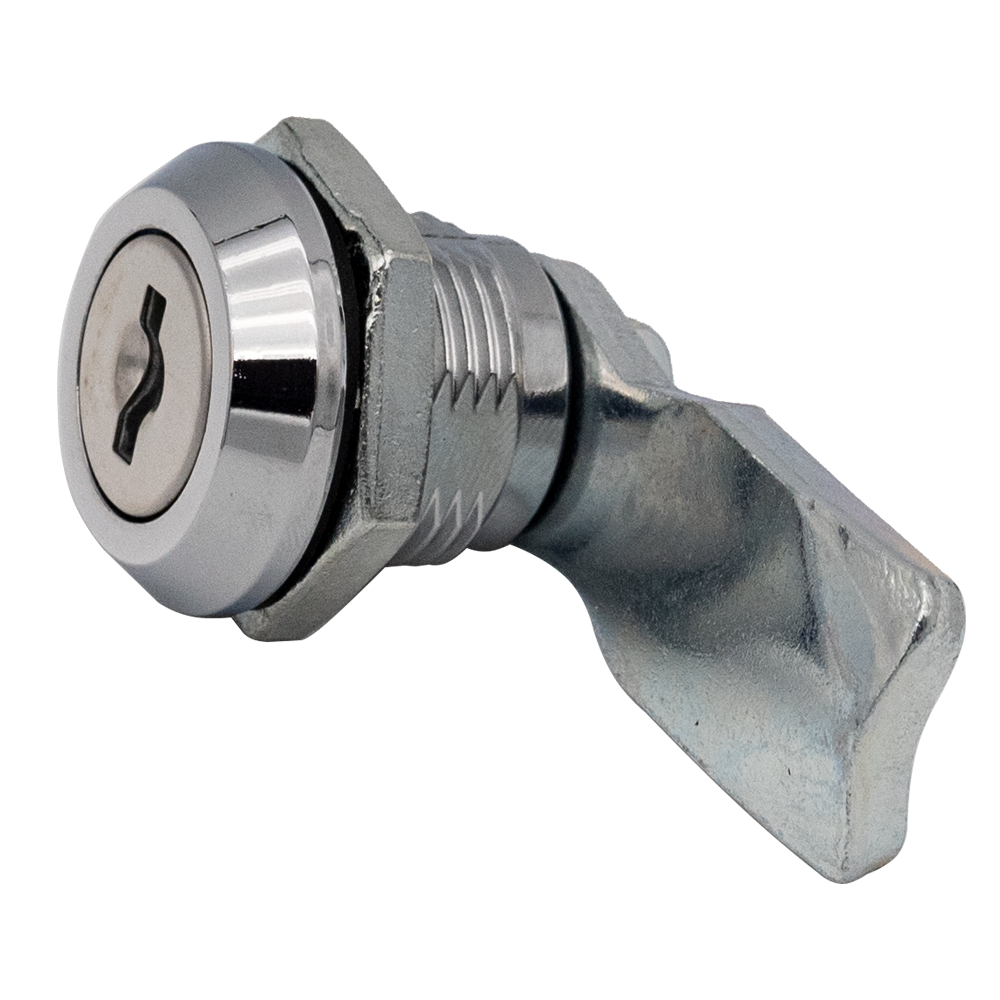

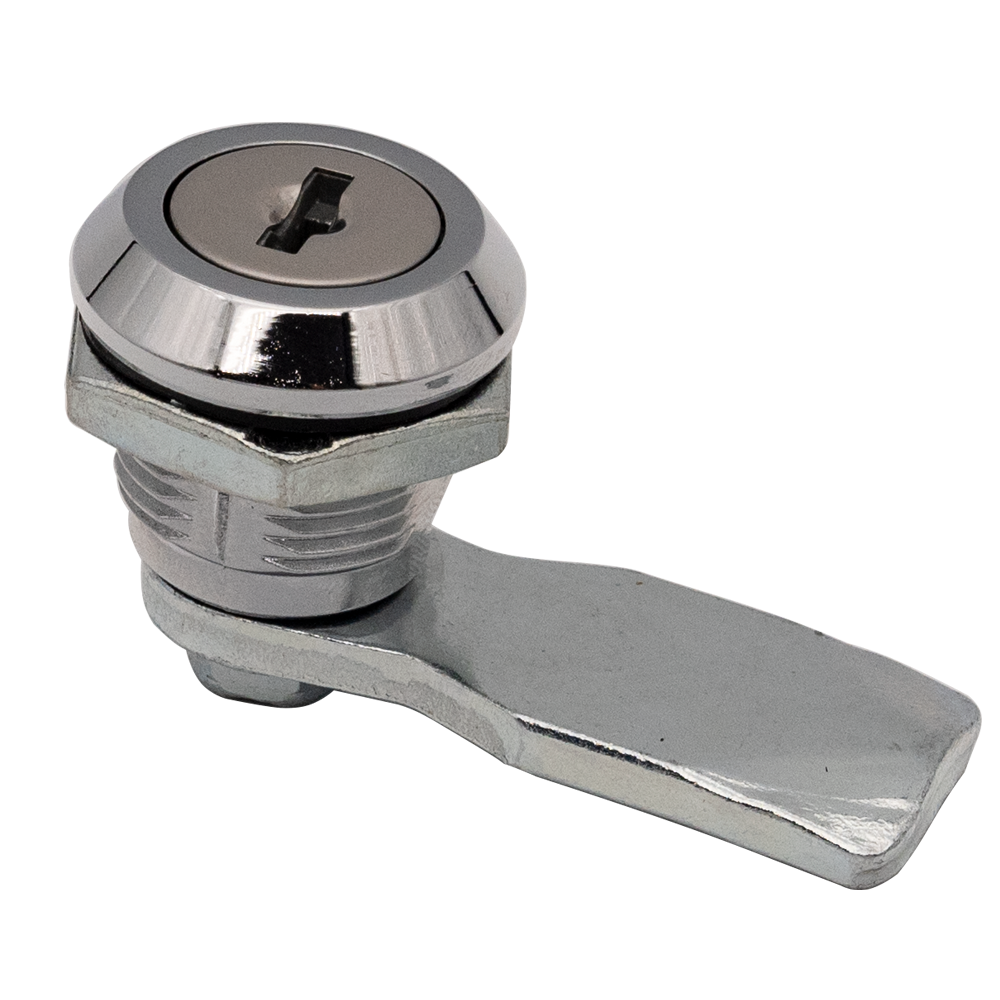

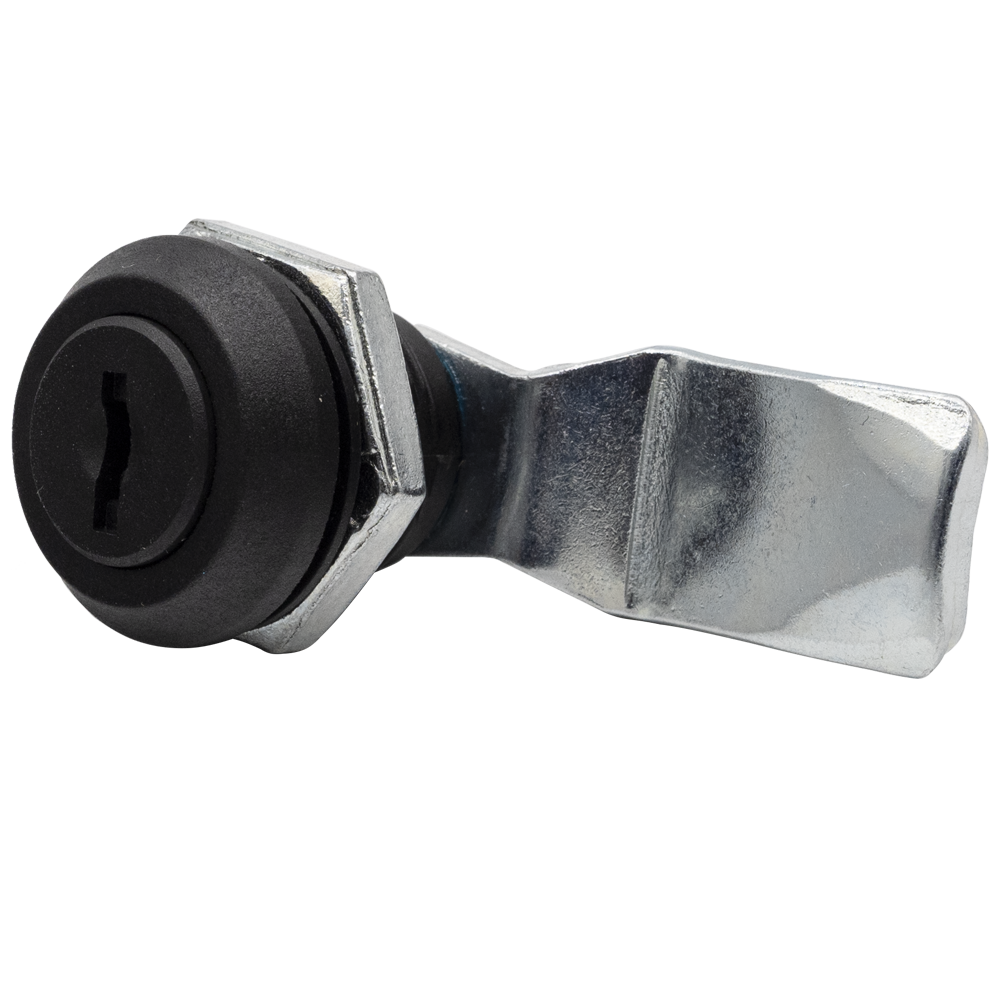

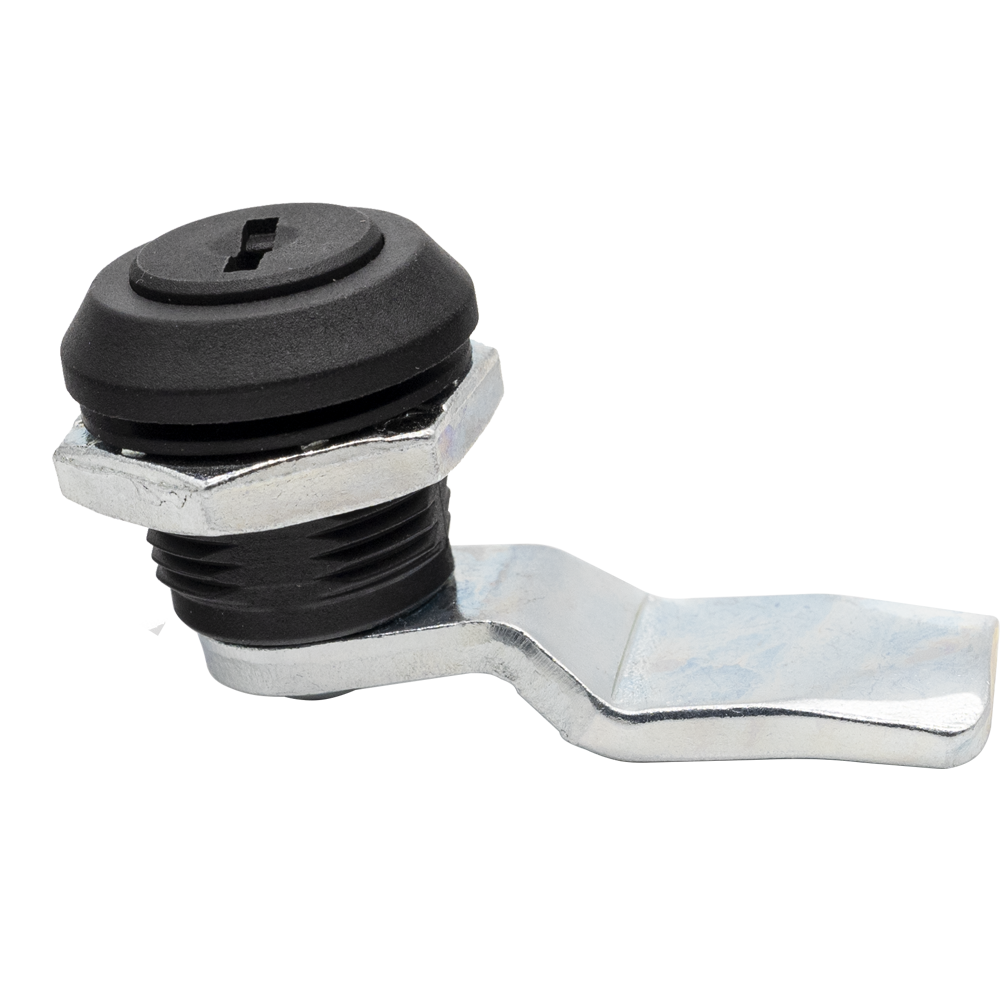

Quarter-Turn Lock with Cylinder,Cam Lock,Server Cabinet Door Lock ML100-1007

Zinc Alloy and PA6 versions available,Key Alike and Key Different available,Head Diameter Ø28,Door Cutout: Ø22.5*20.1mm,Easy Installation,ROHS compliance

Download

Model Selection

clear

Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending（downward） height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending（upward） height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

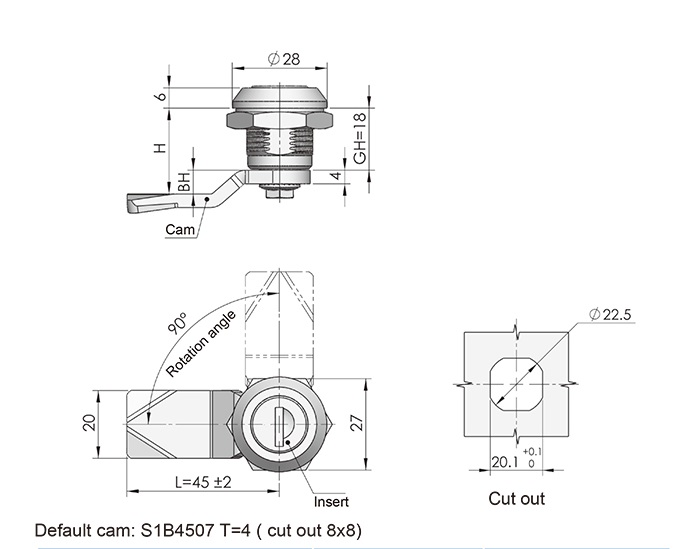

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.

Material

PA

Zinc alloy

Surface

Chrome plated

black

Cam option

without cam

with cam
