Compression Latch with Adjustable Grip,Lift&Turn Latch,Flush Mount Latch ML100-2004

Black Powder Coated or Chrome Plated Zinc Alloy Latch,with Adjustable Grip,Door Cutout:41*17.5mm and 73*30mm,Easy Installation.ROHS compliance.

Download

Model Selection

clear

Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending（downward） height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending（upward） height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

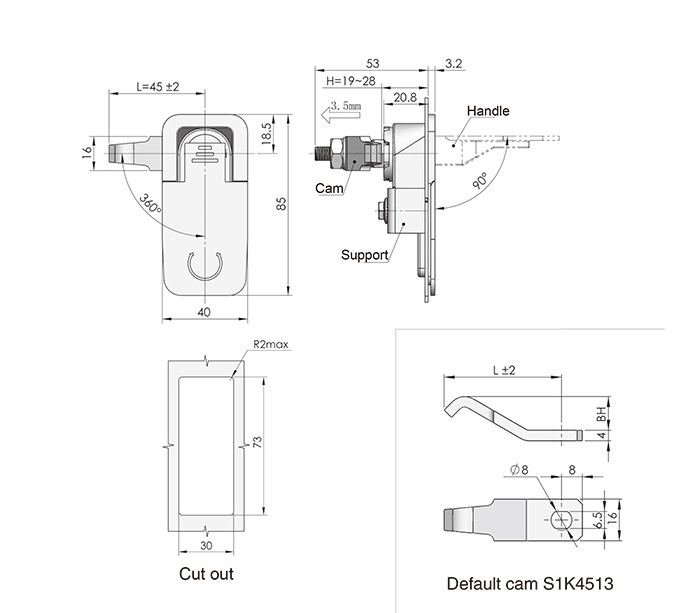

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.

Surface

Chrome plated

Black powder coated

Size

85*40mm

79*36mm

45*21.4mm
