T Handle Locking Latch, High Security RV Toolbox Lock,Caravan Entrance Door Lock,Anti-vibration lock,high security locks for boats ML100-3015

T Handle Locking Latch, High Security RV Toolbox Lock,Anti-vibration lock,high security locks for boats

Download

Model Selection

clear

Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending（downward） height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending（upward） height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

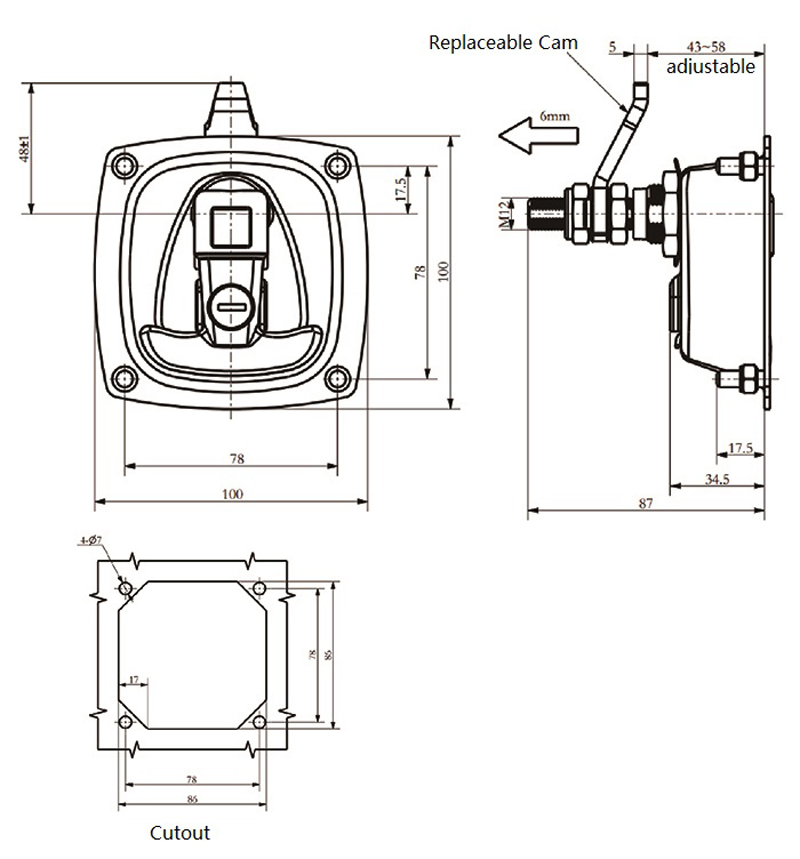

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.

Material

ZDC+Steel

ZDC+Stainless Steel 304

Key type

with key

without key

Unexpected quotation for large order

Do you need a quote?

For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

Model:

EUR 26.80

excl.VAT

Drawing / Specifications

More Infrmation

Main material and surface:

Black powder coated Steel panel and black powder coated ZDC handle and insert,SUS316 housing,shaft and nut; or brushed polished SUS304 panel and bright chrome plated ZDC handle,SUS316 housing,shaft and nut;

Structural features:

1. Handle bearing torque: 40N.m; Handle bearing tension: 8500N

2.IP65 waterproof grade, neutral salt spray test 1000H

3. The compression stroke is 6mm, the height of the stop is adjustable, and the structure is designed to prevent vibration.
